IP40 Metal Garage Consumer Unit – 63A RCD + 6A / 20A MCBs (WMGU04/620)
Availability: 0 left in stock
SKU: WMGU04/620

£33.32£64.33-48%

The WMGU04/620 is an IP40 metal garage consumer unit supplied with a 63A RCD and 6A and 20A B Curve MCBs. Its metal enclosure has a drop-down lid and includes internal earth and neutral bars.This...

- +

Guaranteed safe checkout

american expressapple paygoogle paymasterpaypalvisa
Description Reviews FAQSs Technical Specs Installation Notes

The WMGU04/620 is an IP40 metal garage consumer unit supplied with a 63A RCD and 6A and 20A B Curve MCBs. Its metal enclosure has a drop-down lid and includes internal earth and neutral bars.

This listing is for the 6A + 20A kit. For garage, workshop or outbuilding projects, match both MCB ratings to the proposed circuits and confirm the required RCD specification before ordering.

Key details

  • Supplied RCD: 63A
  • Supplied MCBs: 6A and 20A
  • MCB trip curve: B Curve
  • Enclosure: all-metal construction with drop-down lid
  • Ingress protection: IP40
  • Internal bars: earth and neutral bars included
  • Published dimensions (W × H × D): 130 × 258 × 110mm

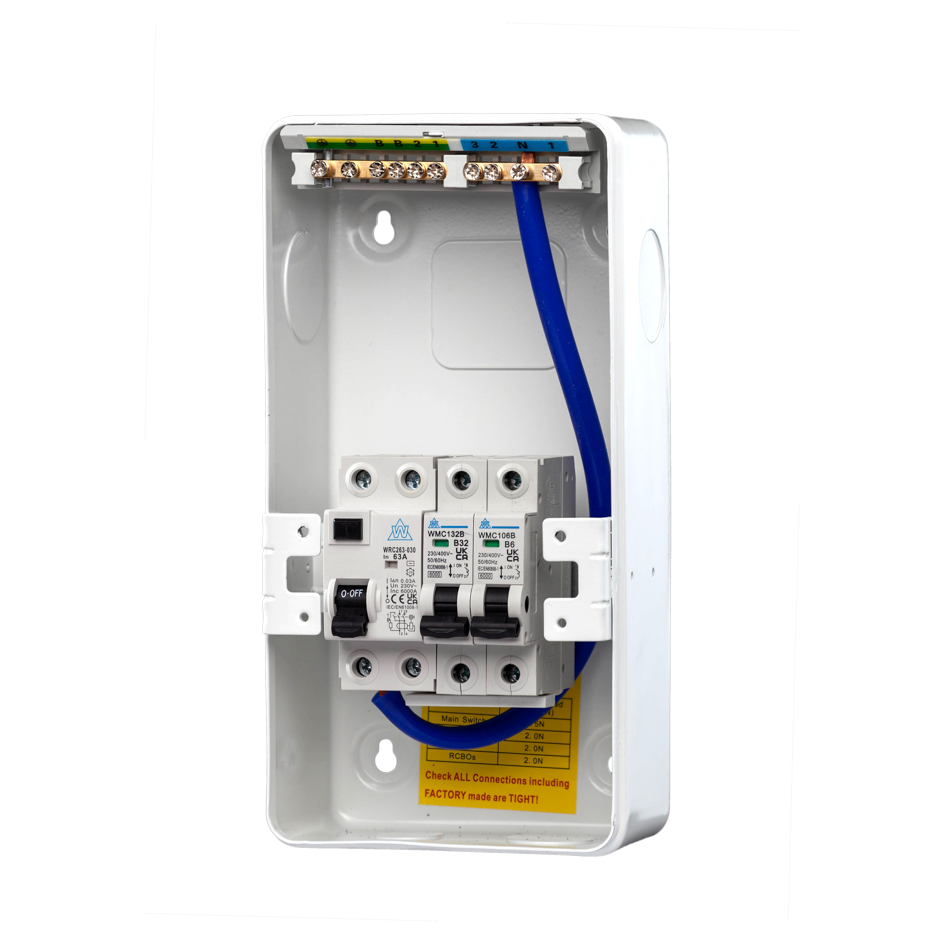

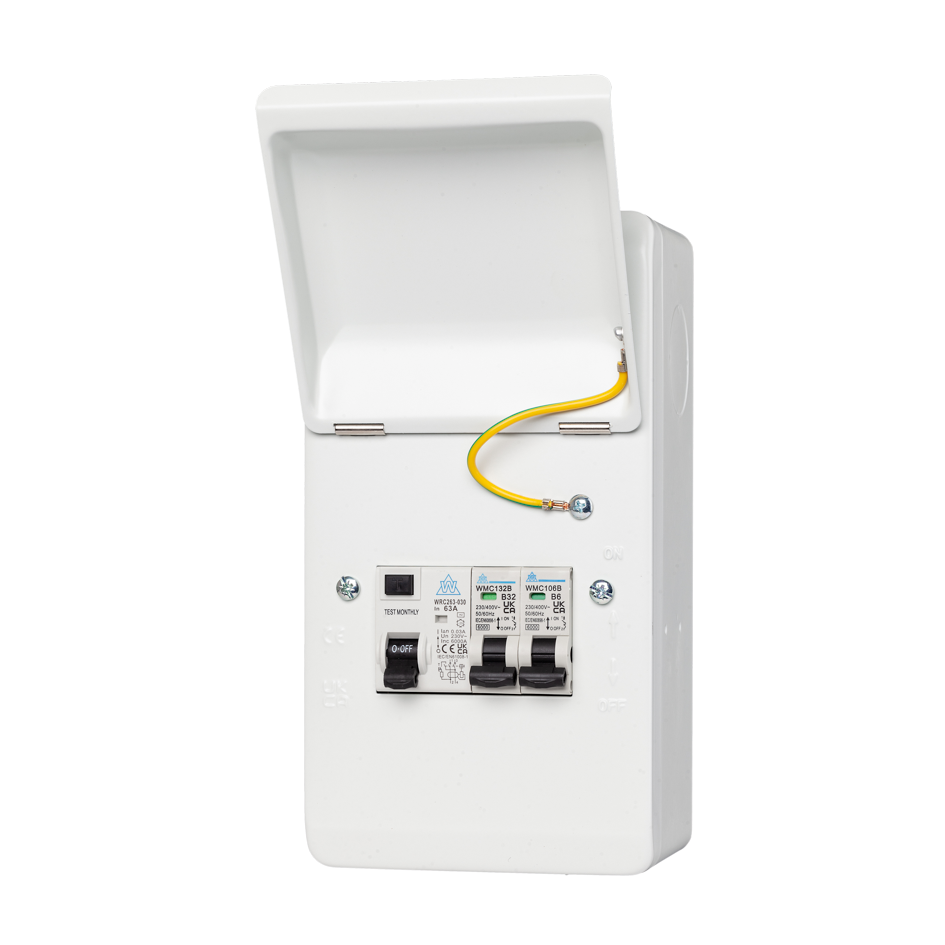

Images may show another WMGU variant. The supplied MCB ratings for WMGU04/620 are 6A and 20A.

Compare WMGU metal garage units

These three kits share an IP40 metal enclosure and 63A RCD. The second supplied MCB rating differs. Choose the kit specified for the circuit design; a higher MCB rating does not by itself make a circuit suitable for a larger load.

Model RCD rating Supplied MCBs MCB curve
WMGU04/616 63A RCD 6A + 16A B Curve
WMGU04/620 (this product) 63A RCD 6A + 20A B Curve
WMGU04/632 63A RCD 6A + 32A B Curve

Browse the garage consumer unit range for other configurations, or contact Power & Data UK to confirm the supplied RCD type, residual-current sensitivity and any installation-specific requirements.
