MCBs – Miniature Circuit Breakers
Miniature Circuit Breakers (MCBs) protect against overloads and short circuits, ensuring circuits disconnect safely under fault conditions. We stock Type B MCBs for domestic circuits and Type C MCBs for commercial/industrial loads, plus selected Type D options for specialist use. All are BS EN 60898 compliant and shipped with next-day UK delivery.
Read more
All our MCBs are clearly labelled, long-life tested, and essential in consumer units and three-phase boards to protect wiring and appliances. They disconnect circuits rapidly in the event of overload or fault, preventing damage and ensuring compliance with 18th Edition Wiring Regulations.
- Type B MCBs – trip at 3–5x rated current; ideal for sockets and lighting
- Type C MCBs – trip at 5–10x rated current; suited to motors, pumps, fluorescent lighting
- Type D MCBs – trip at 10–20x rated current; specialist option for high inrush equipment
Looking for combined overload + earth leakage protection? See our RCBO range. For returns support, check our returns policy.
3 Phase Surge Protection Device Unit with 8 Way Metal IP40 enclosure 40A MCB
£65.38
Pre-wired in the UK and tested before dispatch – allow up to 3 working days for shipping. The WMCUSP440C is a ready-to-fit 3-Phase Surge Protection Device (SPD) Unit supplied in an 8-way IP40 steel enclosure. It includes a 4-pole Type 2 SPD (20kA/40kA) paired with...

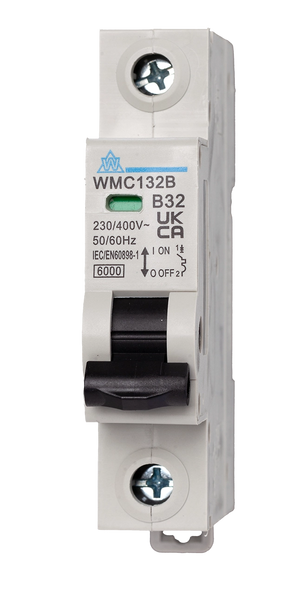

6kA MCB's 6A 1 Pole B Curve (WMC106B)
£2.00
£3.40
Our single pole 6kA Miniature Circuit Breakers (MCBs) provide reliable overcurrent and short-circuit protection for domestic and light commercial circuits. Available in 6A to 63A ratings with B or C curve characteristics, these breakers are DIN rail mounted and fully compliant with BS EN 60898....

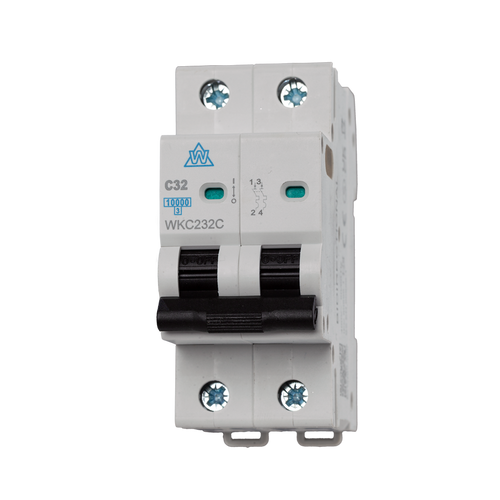

6A 2 Pole 10kA MCB – B Curve (WKC206B)
£7.49
The WKC206B is a 6A 2 Pole 10kA Miniature Circuit Breaker (MCB) designed to protect low-current lighting and socket circuits against overload and short-circuit faults. The double-pole configuration isolates both live conductors simultaneously, providing enhanced safety and compliance with BS EN 60898-1. Built for precision...

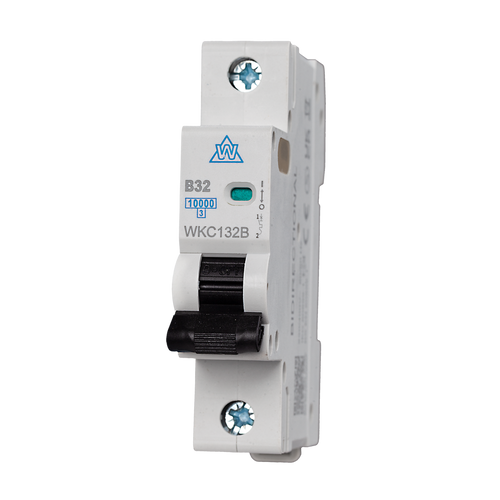

1 Pole 10kA MCB 6A B Curve WKC106B
£5.00
The WCED WKC Series 10kA Miniature Circuit Breakers (MCBs) are high-performance devices designed for precise overcurrent detection and short-circuit protection. Built to handle demanding applications, they provide reliable protection for domestic, commercial, and industrial distribution systems – including solar PV with SPD and EV charging...

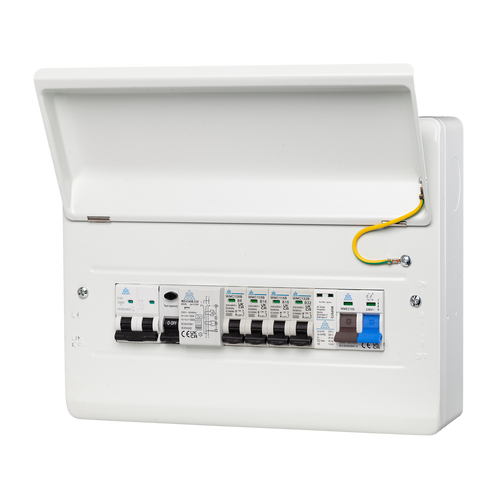

Heat Pump Consumer Unit 8 Way (WME08/HP40C)
£174.50
Pre-wired in the UK and tested before dispatch – allow up to 3 working days for shipping. The WME08/HP40C Heat Pump Consumer Unit is a dedicated protection board for inverter-driven heat pump systems. It comes pre-fitted with a 40A Type B RCD, a 40A Type...
What Is an MCB?
An MCB (Miniature Circuit Breaker) is an automatically operated switch that trips to protect circuits from overload (too much current) or short circuit faults. They replace traditional fuses, offering quicker reset, safer operation, and compliance with BS EN 60898.
Types of MCBs
- Type B – trips at 3–5x rated current; standard for domestic circuits such as sockets and lighting. Popular choice: 10kA MCBs (Type B).
- Type C – trips at 5–10x rated current; used for inductive/motor loads in workshops and commercial sites. Example: WKB 10kA MCBs.
- Type D – trips at 10–20x rated current; for industrial kit with high inrush current (specialist use).
MCB Ratings & Sizes
MCBs come in a range of current ratings, typically from 6A to 100A. Choose the correct pole configuration and breaking capacity for your install:
- Single pole – most domestic circuits
- Double pole – where both live and neutral must be isolated
- Three/four pole – used in three-phase distribution boards
Compliance
All our MCBs meet BS EN 60898 standards, making them fully compliant with the 18th Edition Wiring Regulations. This ensures safe disconnection times and compatibility with modern UK boards.
FAQs on MCBs
What’s the difference between an MCB and an RCBO?
An MCB protects against overloads and short circuits. An RCBO combines this with RCD protection for earth leakage faults.
How do I choose between Type B and Type C?
Use Type B for domestic circuits with low inrush currents (sockets, lighting). Use Type C for circuits with motors, pumps, or fluorescent lighting.
Do MCBs need replacing after they trip?
No – unlike fuses, MCBs can be reset once the fault is cleared, making them reusable and safer.
