Rotary Isolator vs Main Switch: What Is the Difference?
A main switch and a rotary isolator can both provide isolation, but they are normally selected for different positions and operating duties. The label on the front is not enough: the product standard, utilisation category, pole configuration and manufacturer's declared function decide what the device can safely do.
Quick answer: A consumer-unit main switch is the linked isolating switch for the distribution board. A rotary isolator is commonly a separate enclosed switch-disconnector fitted near machinery, HVAC, EV or other equipment for local isolation.
Neither term guarantees the same load-switching duty in every product. Check whether the exact device is declared suitable for switching the load in service, isolation only, or both.
Compare rotary isolator switches with main switches and isolators.
Jump To:
Rotary Isolator vs Main Switch: The Difference
| Feature | Consumer Unit Main Switch | Rotary Isolator / Switch-Disconnector |
|---|---|---|
| Typical position | Inside a consumer unit or distribution board | Local to the equipment being isolated |
| Primary purpose | Isolate the board and outgoing circuits | Local isolation and, where declared, load switching |
| Enclosure | Part of an assembly | Often supplied in its own IP-rated enclosure |
| Common controls | Toggle mechanism | Rotary handle, often lockable |
| Selection basis | Board compatibility and supply rating | Current, poles, utilisation category, enclosure and load type |
What Does a Main Switch Do?
The main switch isolates the consumer unit or distribution board as an assembly. In a single-phase board it commonly switches line and neutral together; a three-phase arrangement may require four-pole switching.
It does not provide overcurrent or residual-current protection unless the assembly uses a separate protective device for those functions. It must also be compatible with the board manufacturer's verified assembly.
What Does a Rotary Isolator Do?
A rotary isolator is commonly installed within sight of, or otherwise local to, the equipment it controls. Enclosed units are widely used for motors, pumps, air-conditioning systems, heat pumps, EV equipment and industrial machinery.
The rotary handle can provide a clear ON/OFF indication and may be lockable for safe maintenance procedures. An IP rating describes enclosure protection; it does not by itself establish electrical switching duty.
Can Both Devices Switch Under Load?
A device may switch load only where its product standard, utilisation category and manufacturer's ratings declare it suitable for that duty. Avoid the blanket claim that every main switch is “off-load only” or every rotary device can break any connected load.
Inductive motors and frequent operation can demand a different utilisation category from occasional isolation of a resistive load. Check AC-21, AC-22 or AC-23 ratings where relevant, as well as operational frequency and motor starting current.
Key point: “Isolator” describes a safety function; “switch-disconnector” indicates a device intended to perform switching and isolation within its declared ratings. Read the markings and data sheet for the exact model.
How to Choose the Correct Device
- Position: board main switch or local equipment isolation.
- Poles: conductors that must be disconnected together.
- Current and voltage: including continuous load and starting current.
- Utilisation category: matched to resistive, mixed or motor load.
- AC or DC duty: never interchange without a declared rating.
- Environment: IP rating, temperature, UV and impact exposure.
- Locking and emergency operation: where the risk assessment requires them.
Typical Applications
| Application | Usually Consider | Why |
|---|---|---|
| Consumer unit incomer | Compatible main switch | Isolation of the board |
| Heat pump or air-conditioning outdoor unit | Local rotary switch-disconnector | Accessible local isolation and suitable enclosure |
| Motor or machine | Rotary switch-disconnector with correct utilisation category | Load and maintenance duty |
| Meter position | Meter isolator | Isolation between meter and consumer installation |
| PV DC string | DC-rated isolator only | DC switching requires a specifically declared device |

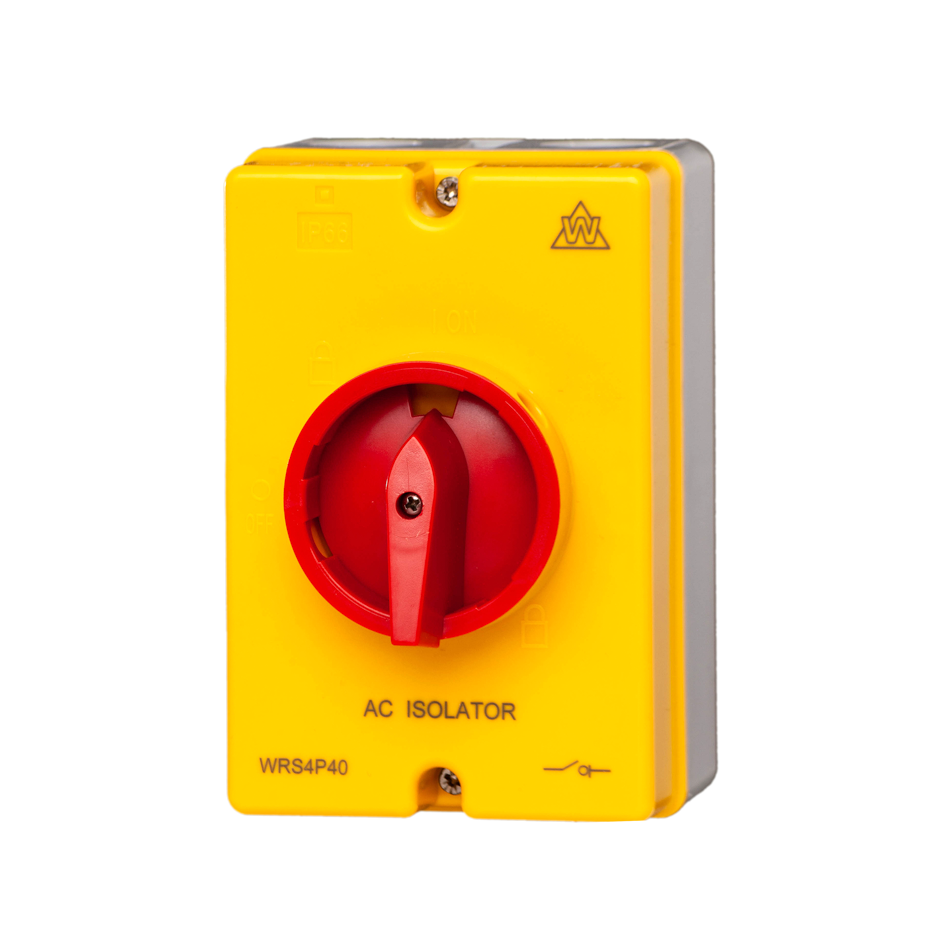

Active AC options include 32A, 40A and 63A 4-pole IP65 rotary isolators. For board incomers, compare the 2-pole 100A Main Switch and 4-pole 100A Main Switch.
Rotary Isolator and Main Switch FAQs
Can a rotary isolator replace a consumer-unit main switch?
Only if the complete assembly design and device declarations permit it. A separate enclosed rotary device is not automatically a compliant substitute inside a consumer unit.
Can a main switch disconnect a load?
Some can within their declared ratings. Check the exact standard, utilisation category and manufacturer data.
Does an EV charger always need a rotary isolator?
Follow the charging-equipment instructions and the installation design. Local isolation may be required or beneficial, but product selection is not based on the appliance name alone.
Can an AC rotary isolator be used on DC?
No, unless the manufacturer explicitly declares the relevant DC voltage, current and pole arrangement.
Final Word
Use a main switch to isolate the distribution board and a suitably rated rotary switch-disconnector where local equipment isolation or switching is required. The decisive evidence is the device declaration and application — not the shape of the handle.
Compare the options: Browse rotary isolator switches.
For board and intake switching, see main switches and isolators.
