WRS4P40 – 40A 4 Pole AC Rotary Isolator, IP66
The WRS4P40 is a 40A four-pole AC rotary isolator with an IP66 enclosure. Its weatherproof polycarbonate housing measures 98 × 145 × 112mm (W × H × D), with a rotary ON/OFF handle and a facility for padlocking in the OFF position.For load selection, WCED lists 32A under AC-23A and...
Read full descriptionThe WRS4P40 is a 40A four-pole AC rotary isolator with an IP66 enclosure. Its weatherproof polycarbonate housing measures 98 × 145 × 112mm (W × H × D), with a rotary ON/OFF handle and a facility for padlocking in the OFF position.
For load selection, WCED lists 32A under AC-23A and 30A under AC-3. These operating-current ratings differ from the headline 40A rating. Check the switching duty, operating voltage and connected equipment before choosing the isolator.
Enclosure and operating features
- IP66 weatherproof enclosure
- UV-protected polycarbonate housing, UL94V-0 flame-retardant material
- Silver-plated alloy contacts
- Interlocked front cover removable only in the OFF position
- Captive cover screws
- Handle can be padlocked OFF; padlock not supplied
- BS EN 60947-3 product standard
Compare the WRS four-pole AC isolators
All four models below have IP66 enclosures. The operating-current figures are those listed by WCED for each utilisation category; confirm the applicable voltage and duty for the installation.
| Model | Rated current | AC-23A current | AC-3 current | Dimensions W × H × D |
|---|---|---|---|---|
| WRS4P20 | 20A | 16A | 12A | 98 × 145 × 112mm |
| WRS4P32 | 32A | 25A | 23A | 98 × 145 × 112mm |
| WRS4P40 (this product) | 40A | 32A | 30A | 98 × 145 × 112mm |
| WRS4P63 | 63A | 45A | 37A | 98 × 188 × 110mm |
For solar DC circuits, see the separate WRS4P32DC DC model and its connection requirements. Browse all rotary isolator switches.

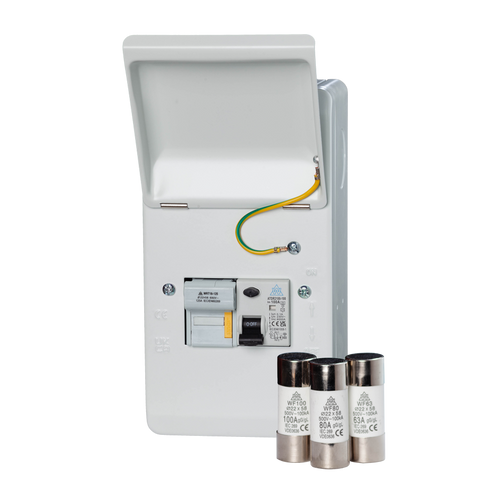

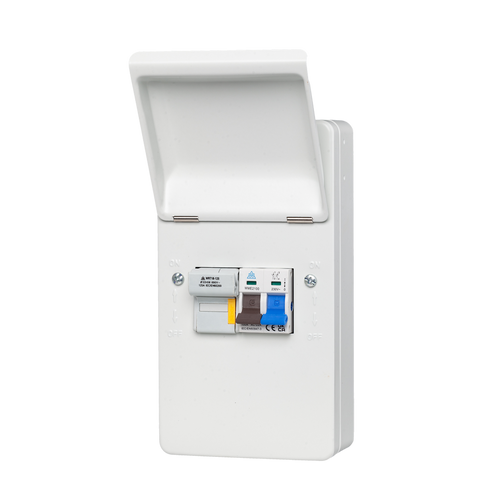

Images may show another model in the range. Select by the product code and specifications.
Is this isolator IP65 or IP66?
WCED specifies an IP66 enclosure for WRS4P40. Maintain that protection with suitable cable-entry fittings and correct cover assembly.
What current rating should I use for selection?
The rated current is 40A. WCED separately lists 32A operating current for AC-23A and 30A for AC-3. Match the switch to the operating voltage, utilisation category and duty required by the connected equipment.
What are the dimensions?
The nominal enclosure dimensions are 98 × 145 × 112mm, in width × height × depth order.
Can it be padlocked OFF?
Yes. The handle has an OFF-position padlock facility. A padlock is not included.
Is this the DC solar version?
No. This is an AC model. The separate WRS4P32DC is designed for solar DC applications and has its own voltage, thermal-current and wiring requirements.
| Product code | WRS4P40 |
|---|---|
| Switch type | AC rotary isolator |
| Poles | 4 |
| Rated current | 40A |
| Rated operating current, AC-23A | 32A |
| Rated operating current, AC-3 | 30A |
| Rated insulation voltage | 690V; insulation rating, not an operating-voltage specification |
| Nominal dimensions (W × H × D) | 98 × 145 × 112mm |
| Enclosure protection | IP66 |
| Housing | UV-protected polycarbonate; UL94V-0 flame-retardant material |
| Contacts | Silver-plated alloy |
| Cover | Interlocked; removable only in the OFF position |
| Cover screws | Captive |
| Lock-off | Padlock facility in OFF position; padlock not supplied |
| Product standard | BS EN 60947-3 |
The applicable switching voltage and load duty must be checked when selecting the switch. The insulation-voltage rating does not establish its operating-current capability at that voltage.
Installation and testing should be carried out by a qualified electrician following the instructions for the exact switch supplied. Confirm the circuit voltage, load type, switching duty and conductor arrangement. For WRS4P40, the listed operating currents are 32A for AC-23A and 30A for AC-3; the headline 40A rating should not be treated as approval to switch every 40A load.
Use suitable mountings and sealed cable-entry fittings, and assemble the cover correctly to maintain IP66 protection. Follow the specified torque for each connection and fixing. The cover interlock permits removal only in the OFF position. A padlock can be fitted for lock-off and is supplied separately.
