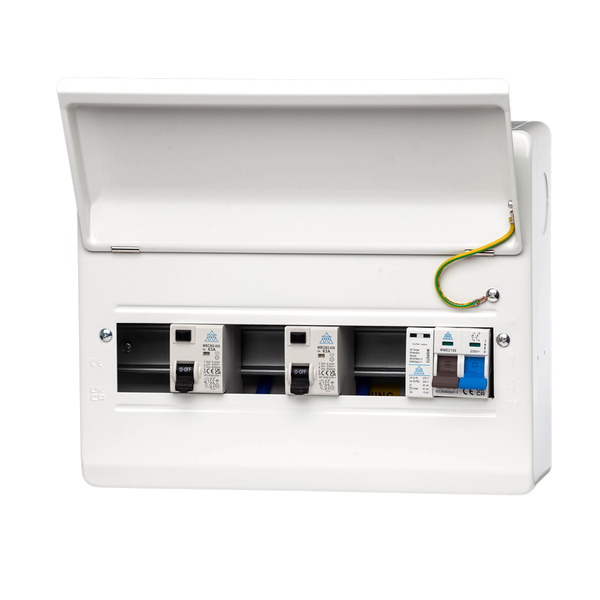

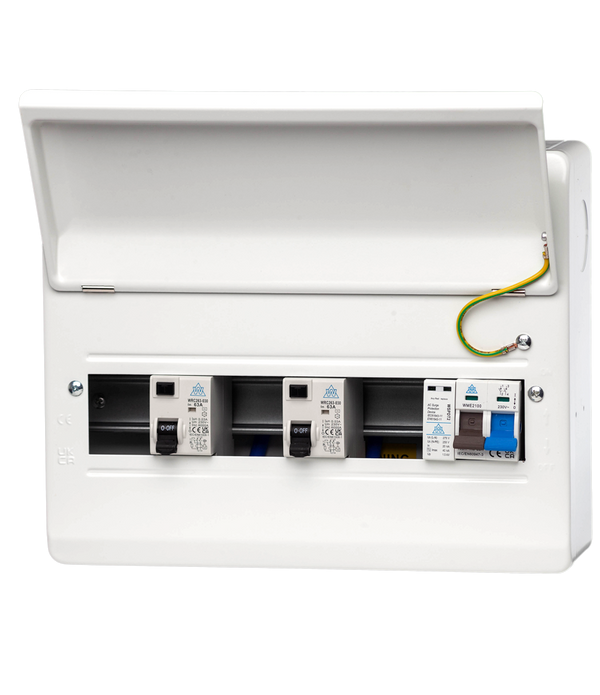

Twin RCD Metal Consumer Unit – WME1463TR (14 Module, 63A)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With
The WME1463TR Twin RCD Metal Consumer Unit is a 14-module split-load board designed for domestic and light commercial installs where compliance, RCD separation, and inspection confidence matter. Fitted with a 100A main switch and two 63A RCDs, it provides 8 usable ways for circuit protection. Built to BS 7671 Amendment 2,...
The WME1463TR Twin RCD Metal Consumer Unit is a 14-module split-load board designed for domestic and light commercial installs where compliance, RCD separation, and inspection confidence matter. Fitted with a 100A main switch and two 63A RCDs, it provides 8 usable ways for circuit protection. Built to BS 7671 Amendment 2, this board helps installers achieve fast sign-off without compromising safety.
Installer Tip: This base model is ideal for smaller installs with up to 8 circuits. For larger projects or where surge protection is required, see the 16, 18, and 22-module variants listed below.
Key Features
- 14-module metal enclosure – provides 8 usable ways
- 100A main switch – double-pole isolator supplied
- 2 × 63A RCDs – split-load protection to reduce nuisance tripping
- Amendment 2 compliant – fire-resistant metal enclosure
- Pre-assembled – busbars, neutral links, and knockouts ready for install
- UK-stocked – no backorders or dropship delays
Compare Twin RCD Consumer Unit Variants
| Model | Modules | Usable Ways | RCDs | Main Switch | SPD | Dimensions (mm) |
|---|---|---|---|---|---|---|
| WME1463TR (This Product) | 14 | 8 | 2 × 63A | 100A | – | 304 × 240 × 112 |
| WME1663TR | 16 | 10 | 2 × 63A | 100A | – | 376 × 240 × 112 |
| WME18100TR | 18 | 12 | 2 × 100A | 100A | – | 376 × 240 × 112 |
| WME1880TR/SP | 18 | 10 | 2 × 80A | 100A | Type 2 | 376 × 240 × 112 |
| WME22100TR | 22 | 16 | 2 × 100A | 100A | – | 448 × 240 × 112 |
| WME22100TR/SP | 22 | 14 | 2 × 100A | 100A | Type 2 | 448 × 240 × 112 |
| WME2280TR | 22 | 16 | 2 × 80A | 100A | – | 448 × 240 × 112 |
| WME2280TR/SP | 22 | 14 | 2 × 80A | 100A | Type 2 | 448 × 240 × 112 |
What is this unit best suited for?
The WME1463TR is ideal for small to mid-sized domestic or light commercial installs where circuits need to be split across two RCDs to reduce nuisance tripping.
Does it include surge protection?
No – surge protection is only built into “/SP” variants. For SPD-ready models, see the surge protected Twin RCD boards.
Can I expand beyond 8 ways?
No – this unit has 8 usable ways. For additional space, consider the 16, 18, or 22 module variants.
Is this board Amendment 2 compliant?
Yes – it is a metal-clad enclosure supplied with main switch and RCDs, in line with 18th Edition Amendment 2.
- SKU: WME1463TR
- Enclosure Type: Metal consumer unit, split-load
- Module Size: 14
- Usable Ways: 8
- Main Switch: 100A double-pole isolator
- RCDs: 2 × 63A RCDs
- SPD: Not included (see /SP variants)
- Compliance: BS EN 61439-3, 18th Edition Amendment 2
- Dimensions (WxHxD): 304 × 240 × 112 mm
- Mounting: Surface
The WME1463TR is supplied pre-fitted with main switch and RCDs. Final circuit protection (MCBs/RCBOs) must be installed by a qualified electrician in line with BS 7671 and local site requirements.
- Secure the enclosure using rear/side mounting holes
- Use knockouts with suitable glands for cable entry
- Torque terminals to manufacturer spec with calibrated tools
- Maintain clear labelling for inspection compliance
