High Immunity RCBO – 20A B Curve, Type A, 30mA (WER20B-030)
£23.50
ex VAT
£28.20 inc VAT
SKU: WER20B-030
The WER20B-030 is a 20A B Curve High Immunity Type A RCBO designed for residential and light commercial circuits including solar PV, battery storage, and EV-ready boards. It combines overload, short-circuit, and 30mA residual current protection in one device, while its high immunity design helps prevent nuisance tripping in inverter-fed...
Read full descriptionAccepted payment methods
Description
The WER20B-030 is a 20A B Curve High Immunity Type A RCBO designed for residential and light commercial circuits including solar PV, battery storage, and EV-ready boards. It combines overload, short-circuit, and 30mA residual current protection in one device, while its high immunity design helps prevent nuisance tripping in inverter-fed or noisy environments.
Featuring double pole disconnection and bi-directional wiring, this RCBO is a versatile choice for compliance with the 18th Edition Wiring Regulations (Amendment 2).
Installer Tip: The B Curve is typically used for lighting and socket circuits where low inrush current is expected. For EV chargers, motors, or heat pump circuits, choose the C Curve version.
Key Features
- 20A B Curve Type A RCBO – protects against overload, short-circuit and earth leakage
- High immunity – resists nuisance trips from harmonics and transients
- 30mA sensitivity – compliant with Amendment 2
- 10kA breaking capacity – suitable for residential and light commercial installs
- Double pole disconnection – safe isolation of live and neutral
- Bi-directional wiring – line/load reversible for solar & EV systems
- Complies with BS EN 61009 & 18th Edition Wiring Regulations
Compare High Immunity RCBOs
| Model | Rating | Curve | Typical Use |
|---|---|---|---|
| WER06B-030 | 6A | B | Lighting and other low inrush final circuits |
| WER06C-030 | 6A | C | Low-rated circuits where higher inrush tolerance is preferred |
| WER16B-030 | 16A | B | General domestic final circuits with low inrush loads |
| WER16C-030 | 16A | C | Small motors and circuits with moderately higher inrush current |
| WER20B-030 (This Product) | 20A | B | Domestic final circuits requiring a higher current rating |
| WER20C-030 | 20A | C | Circuits with moderately higher inrush current |
| WER32B-030 | 32A | B | Ring finals and other standard appliance circuits |

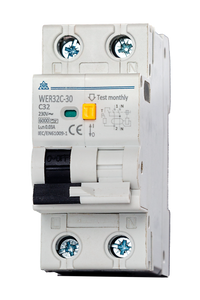

| WER32C-030 | 32A | C | Higher demand circuits and loads with greater inrush current |

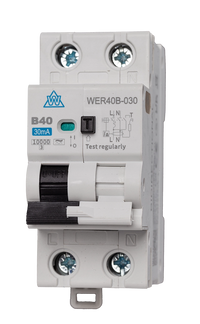

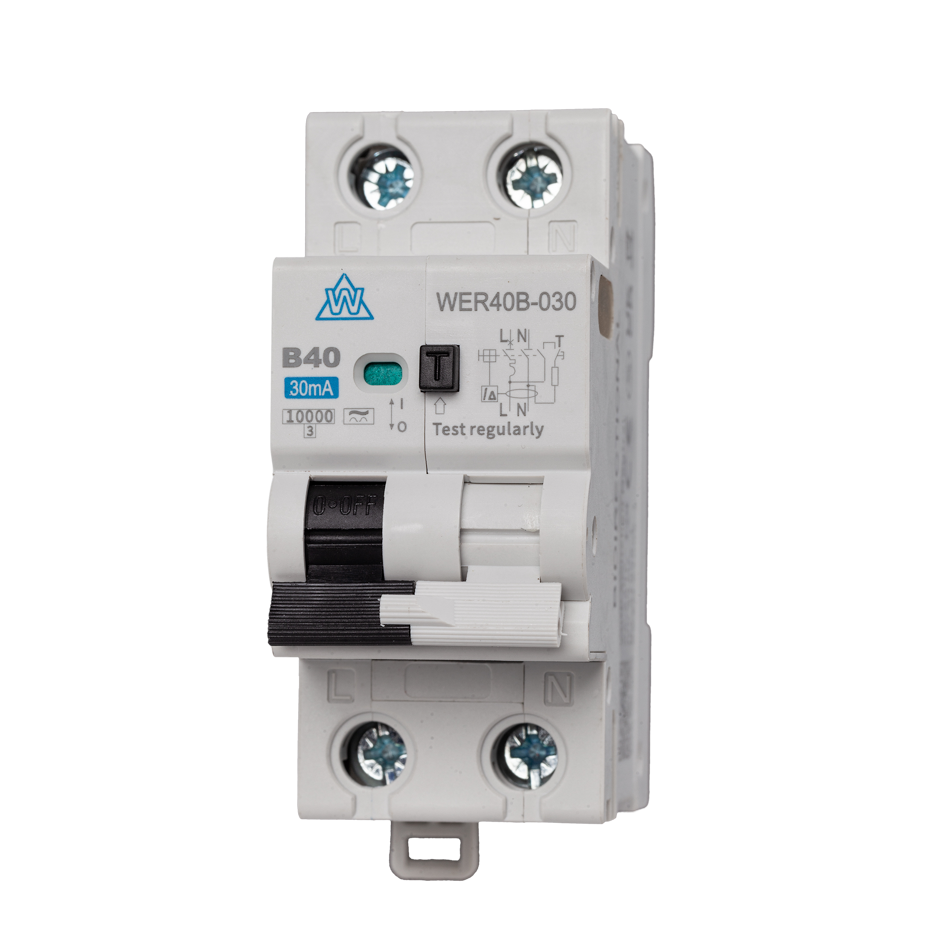

| WER40B-030 | 40A | B | Higher load circuits with lower inrush characteristics |
| WER40C-030 | 40A | C | Heavier-duty circuits with higher inrush conditions |
| WER63C-030 | 63A | C | Larger commercial or high-load applications |
Technical specs
- Type: A (detects AC + pulsating DC leakage)
- Rating: 20A
- Trip Curve: B
- Sensitivity: 30mA
- Breaking Capacity: 10kA
- Poles: 2 (double pole)
- Wiring: Bi-directional
- SKU: WER20B-030
- Standards: BS EN 61009 / IEC 61009
Installation notes
Designed for distribution boards and consumer units requiring high immunity RCBO protection. Suitable for domestic and light commercial systems including solar PV and EV-ready installs.
- DIN rail mounted
- Ensure load rating suits the connected circuit
- Bi-directional wiring allows flexible line/load connection
- Installation must be carried out by a qualified electrician
FAQs
When should I use a 20A B Curve RCBO?
It’s suited for general domestic and light commercial circuits where low inrush current is expected.
Why high immunity?
Prevents false tripping from transient voltages and harmonics – common in inverter-heavy environments like solar PV systems.
Is this suitable for EV chargers?
While possible, C Curve RCBOs are recommended for most EV installs due to inrush current. This B Curve version is better for standard circuits.
Does it disconnect both poles?
Yes, it provides full double pole disconnection of live and neutral conductors.
