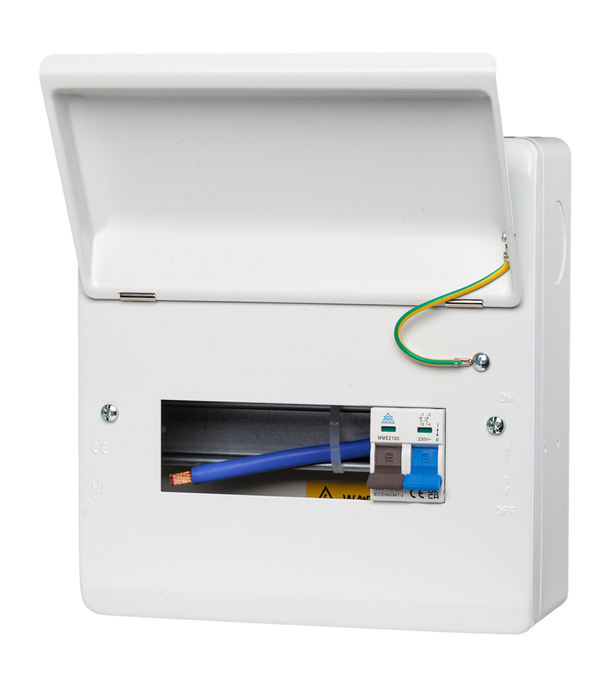

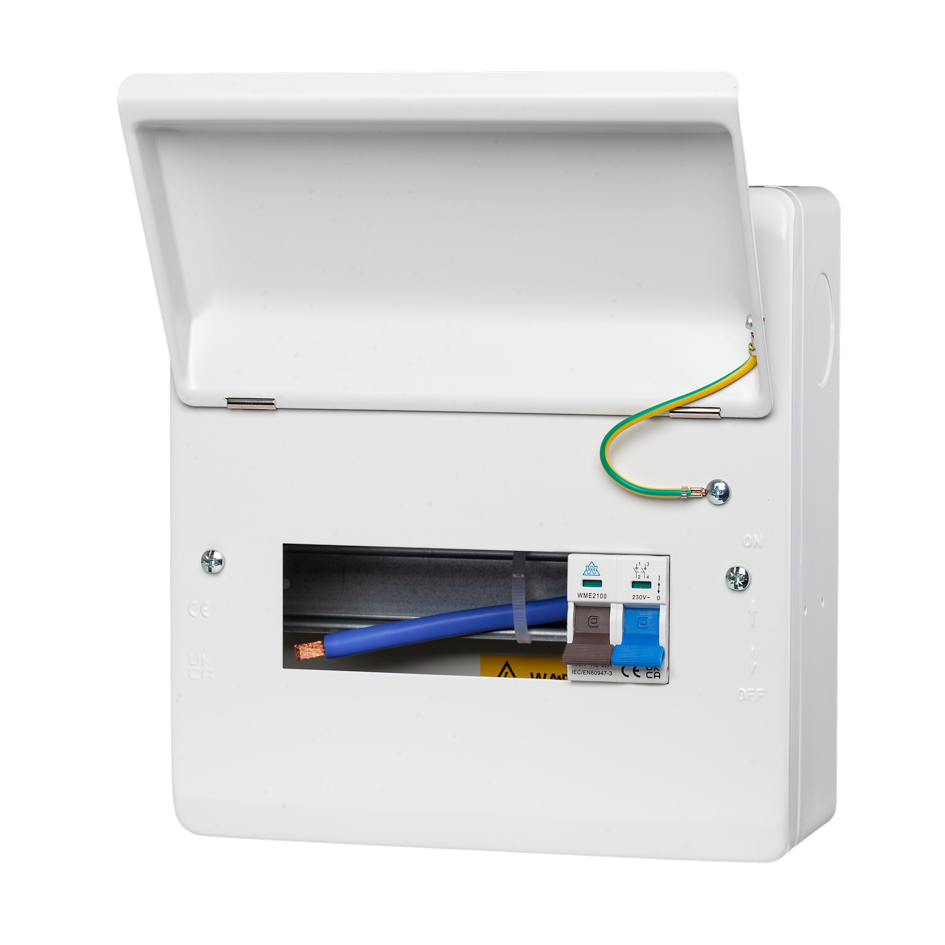

Main Switch Consumer Unit – WME08/MS100 (8 Module, 100A)
£37.95
ex VAT
£45.54 inc VAT
SKU: WME08/MS100
Forward orders accepted — ask us for the current lead time
Ask us about availability
Currently unavailable
The WME08/MS100 Main Switch Consumer Unit is an 8-module metal enclosure supplied with a 100A main switch incomer. It provides 6 usable ways, giving a little more room than smaller 2–4 way boards and making it well suited for medium-sized domestic installs, annexes, or workshops. Built from powder-coated steel with...
Read full descriptionAccepted payment methods
Description
The WME08/MS100 Main Switch Consumer Unit is an 8-module metal enclosure supplied with a 100A main switch incomer. It provides 6 usable ways, giving a little more room than smaller 2–4 way boards and making it well suited for medium-sized domestic installs, annexes, or workshops. Built from powder-coated steel with raised DIN rails and multiple knockouts, it’s a reliable and installer-friendly base ready for MCB or RCBO configuration.
Installer Tip: Choose the 6-way model when you need a little more flexibility than a garage board but don’t need a full-sized domestic unit. Perfect for small houses, extensions, or workshops with multiple circuits.
Key Features
- 8-module metal enclosure – 6 usable ways
- 100A main switch – double-pole isolator included
- Standards: BS7671:2018 (Amendment 2) & BS EN 61439
- Flexible cable entry: knockouts on all sides plus rear
- Installer-ready: raised DIN rail, earth & neutral bars pre-fitted
- Durable finish: powder-coated steel construction
Compare Main Switch Consumer Unit Variants
| Model | Modules | Usable Ways | Incomer | Dimensions (mm) |
|---|---|---|---|---|
| WME04/MS100 | 4 | 2 | 100A Main Switch | 160 × 240 × 112 |
| WME06/MS100 | 6 | 4 | 100A Main Switch | 160 × 240 × 112 |
| WME08/MS100 (This Product) | 8 | 6 | 100A Main Switch | 200 × 240 × 112 |
| WME10/MS100 | 10 | 8 | 100A Main Switch | 216 × 240 × 112 |
| WME12/MS100 | 12 | 10 | 100A Main Switch | 232 × 240 × 112 |
| WME14/MS100 | 14 | 12 | 100A Main Switch | 304 × 240 × 112 |
| WME16/MS100 | 16 | 14 | 100A Main Switch | 340 × 240 × 112 |
| WME18/MS100 | 18 | 16 | 100A Main Switch | 376 × 240 × 112 |
| WME22/MS100 | 22 | 20 | 100A Main Switch | 400 × 240 × 112 |
Technical specs
- SKU: WME08/MS100
- Incomer: 100A main switch (non-RCD)
- Modules: 8
- Usable Ways: 6
- Construction: Steel, powder-coated finish
- Mounting: Surface mount with raised DIN rail
- Cable Entry: Multiple circular knockouts (25/32mm top/bottom, 40mm sides/rear)
- Earth & Neutral: Supplied with bars and cables
- Compliance: BS EN 61439; BS7671:2018 (Amendment 2)
- Dimensions (WxHxD): 200 × 240 × 112 mm
Installation notes
The WME08/MS100 is supplied with a pre-fitted 100A main switch but no protective devices. Final circuit population must be carried out by a qualified electrician.
- Mount securely on a flat, level surface
- Use knockouts with suitable glands/bushes to maintain enclosure integrity
- Fit MCBs or RCBOs according to your installation design
- Confirm bonding and earth continuity before energising
FAQs
Does this unit come with breakers?
No – it’s supplied with a 100A main switch incomer. Add MCBs or RCBOs to complete the installation.
Where would a 6-way consumer unit be used?
Best suited for small domestic installs, annexes, or workshops with several circuits but no need for a large split-load or RCD board.
Is it Amendment 2 compliant?
Yes – built to BS7671:2018+A2:2022 and BS EN 61439 standards.
Does it include earth and neutral bars?
Yes – supplied with neutral and earth terminal bars, plus a neutral cable and pin-style busbar.
