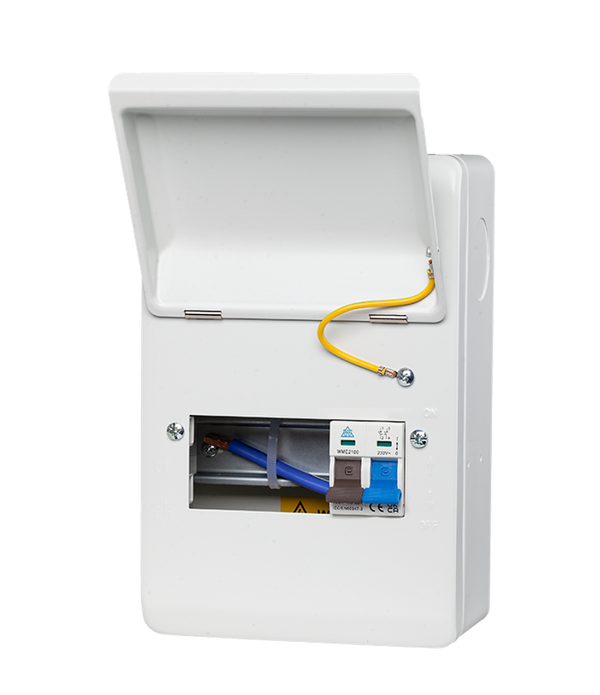

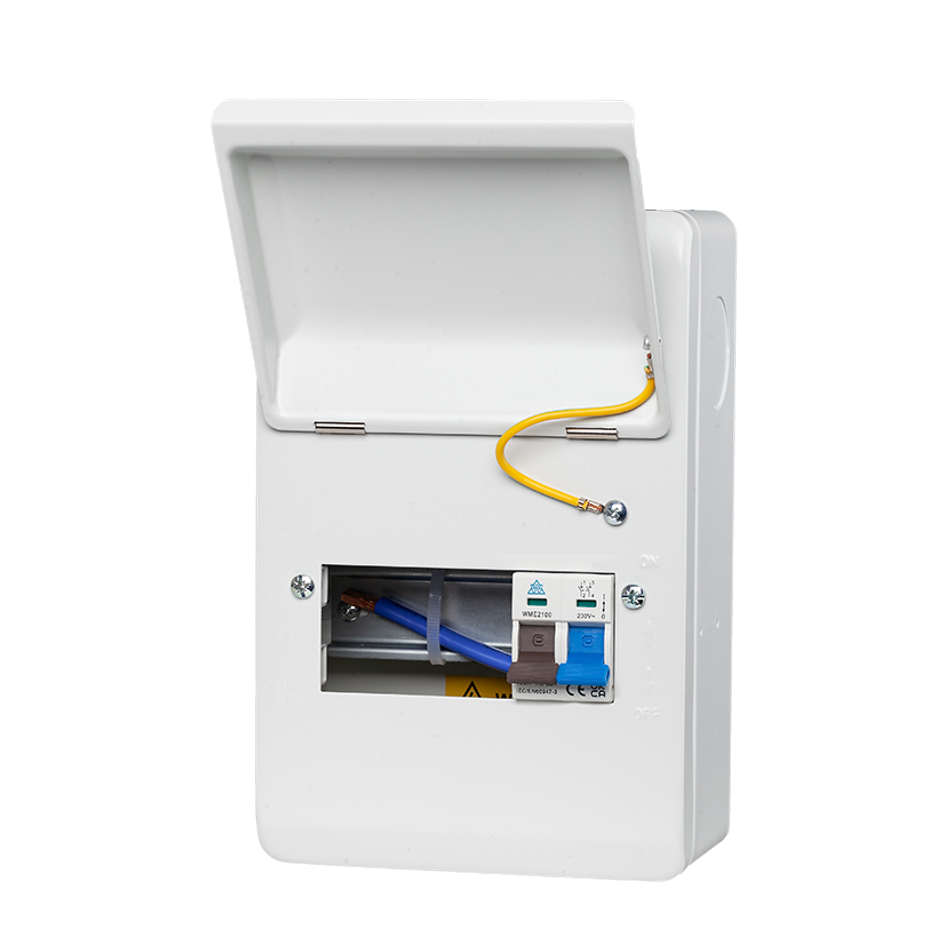

Main Switch Consumer Unit – WME06/MS100 (6 Module, 100A)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With
The WME06/MS100 Main Switch Consumer Unit is a compact 6-module metal enclosure supplied with a 100A main switch incomer. It provides 4 usable ways, making it ideal for small domestic jobs such as garages, utility rooms, or extensions. Pre-fitted with earth and neutral bars and finished in powder-coated steel, it...
The WME06/MS100 Main Switch Consumer Unit is a compact 6-module metal enclosure supplied with a 100A main switch incomer. It provides 4 usable ways, making it ideal for small domestic jobs such as garages, utility rooms, or extensions. Pre-fitted with earth and neutral bars and finished in powder-coated steel, it offers a durable and compliant base ready for MCB or RCBO population.
Installer Tip: The 4-way configuration makes this unit perfect for small homes, outbuildings, or when only a few additional circuits are required. For larger installs, step up to the 8–20 way variants in the range.
Key Features
- 6-module metal enclosure – 4 usable ways
- 100A main switch – double-pole isolator included
- Compliance: BS7671:2018 (Amendment 2) & BS EN 61439
- Flexible install: knockouts on top, bottom, sides, and rear
- Installer-friendly: raised DIN rail, pre-fitted earth & neutral bars
- Durable finish: powder-coated steel
Compare Main Switch Consumer Unit Variants
| Model | Modules | Usable Ways | Incomer | Dimensions (mm) |
|---|---|---|---|---|
| WME04/MS100 | 4 | 2 | 100A Main Switch | 160 × 240 × 112 |
| WME06/MS100 (This Product) | 6 | 4 | 100A Main Switch | 160 × 240 × 112 |
| WME08/MS100 | 8 | 6 | 100A Main Switch | 200 × 240 × 112 |
| WME10/MS100 | 10 | 8 | 100A Main Switch | 216 × 240 × 112 |
| WME12/MS100 | 12 | 10 | 100A Main Switch | 232 × 240 × 112 |
| WME14/MS100 | 14 | 12 | 100A Main Switch | 304 × 240 × 112 |
| WME16/MS100 | 16 | 14 | 100A Main Switch | 340 × 240 × 112 |
| WME18/MS100 | 18 | 16 | 100A Main Switch | 376 × 240 × 112 |
| WME22/MS100 | 22 | 20 | 100A Main Switch | 400 × 240 × 112 |
Does this unit include breakers?
No – it’s supplied with a 100A main switch incomer. Add MCBs or RCBOs to suit your installation.
Where is a 4-way board typically used?
It’s suited for garages, sheds, or small extensions where a handful of circuits need protection.
Are these units compliant with Amendment 2?
Yes – fully compliant with BS7671:2018+A2:2022 and BS EN 61439.
Does it include earth and neutral bars?
Yes – all units come with pre-fitted earth and neutral terminal bars plus a pin-style busbar.
- SKU: WME06/MS100
- Incomer: 100A main switch (non-RCD)
- Modules: 6
- Usable Ways: 4
- Construction: Powder-coated steel
- Mounting: Surface mount with raised DIN rail
- Cable Entry: Multiple circular knockouts (25/32mm top/bottom, 40mm sides/rear)
- Earth & Neutral: Supplied with terminal bars and cables
- Compliance: BS EN 61439; BS7671:2018 (Amendment 2)
- Dimensions (WxHxD): 160 × 240 × 112 mm
The WME06/MS100 is supplied with a pre-fitted 100A main switch but no protective devices. Final circuit population must be completed by a qualified electrician.
- Mount securely on a flat surface with space for inspection
- Use knockouts with glands/bushes to maintain enclosure integrity
- Install MCBs or RCBOs as required by your circuit design
- Check bonding and earth continuity before energising
