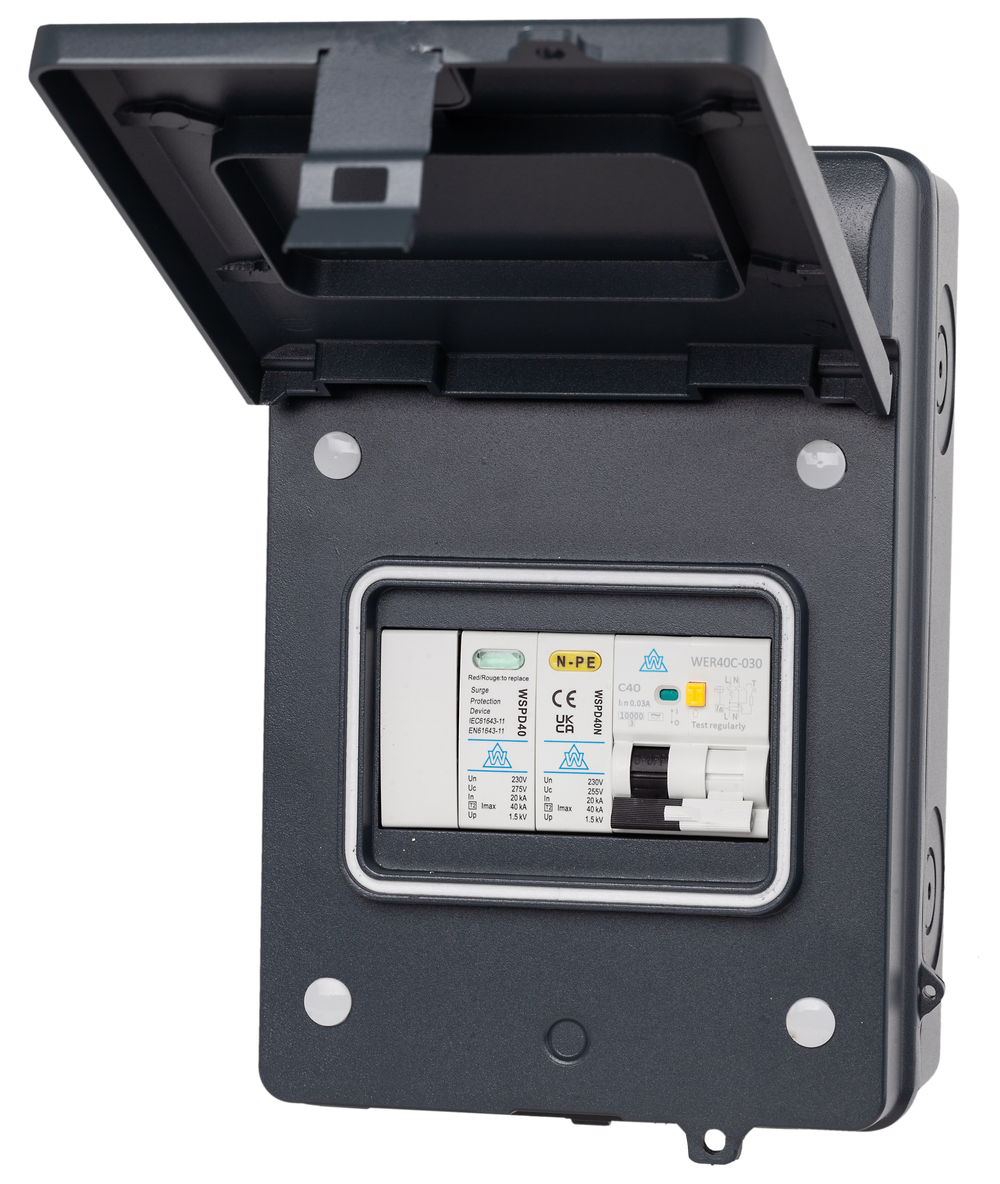

IP65 EV Consumer Unit – 40A C Curve RCBO + SPD

The WMIP40CSP is an IP65 aluminium EV consumer unit fitted with a 40A C Curve Type A RCBO and a Type 2 surge protection device (SPD). It combines overcurrent, residual-current and transient surge protection in a lockable metal enclosure for EV supply installations.

The non-combustible aluminium housing has a raised DIN rail, raised fixing keyholes and a lid that can be secured with a padlock. Its IP65 rating supports outdoor use when the mounting and cable entries are completed in accordance with the supplied instructions.

Key details

• RCBO: 40A, C Curve, Type A
• Surge protection: Type 2 SPD with green/red status indication
• Enclosure: non-combustible aluminium, IP65
• Dimensions (W × H × D): 164 × 232 × 102mm
• Enclosure format: 5 modules in total, including fitted devices
• Fault indication: black handle only: overload or short circuit; both handles: residual-current fault

Compare WMIP EV consumer units

All four use an IP65 aluminium enclosure and Type 2 surge protection. Choose the RCBO current rating and trip curve required by the circuit design.

Browse the EV protection range or contact Power & Data UK to check the fitted device specifications against your charger requirements.

Images may show another variant from the range. Use the listed part code, current rating and trip curve when ordering.

• Part code: WMIP40CSP
• RCBO current rating: 40A
• Overcurrent trip curve: C
• Residual-current type: Type A
• Surge protection: Type 2 SPD
• SPD status indication: green: good; red: replace in accordance with the supplied SPD instructions
• Enclosure material: non-combustible aluminium
• Ingress protection: IP65
• Enclosure format: 5 modules total; fitted devices occupy part of this space
• Dimensions (W × H × D): 164 × 232 × 102mm
• Rated supply: 230V AC, 50Hz
• Incoming terminal capacity: 35mm² maximum
• Terminal type: cage clamp
• Cable entry: M20 knockouts that can be enlarged to M32 in accordance with the enclosure instructions
• Device mounting: raised 35mm DIN rail
• Enclosure fixing: raised fixing keyholes
• Ambient temperature: -25°C to +40°C
• Locking: lid can be secured with a padlock
• Standards listed by WCED: BS EN 61439-3, BS EN 61009-1 and BS EN 61643-11

For the exact fitted RCBO model, residual-current sensitivity, breaking capacity and SPD performance values, please contact Power & Data UK. Select the unit against the complete circuit design and supplied assembly instructions.

A qualified electrician must select, install and test the WMIP40CSP using the supplied assembly instructions and the EV charger requirements.

• Verify the 40A rating and C Curve against the load, cable and required disconnection performance.
• Confirm the residual-current sensitivity, DC-fault protection and any open-PEN protection required by the complete installation.
• Fix the enclosure securely using its raised keyholes and suitable fixings for the mounting surface.
• Maintain IP65 protection using suitable cable-entry fittings. Follow the enclosure instructions if enlarging the M20 knockouts.
• Follow the supplied assembly wiring diagram, line/load markings, terminal capacities and device-specific tightening instructions.
• Connect and coordinate the SPD as specified by its manufacturer, then complete inspection, testing and circuit labelling.

Is the WMIP40CSP enclosure steel or aluminium?

WCED specifies a non-combustible aluminium enclosure for this WMIP range.

What do the two RCBO handles indicate?

WCED describes a black-handle-only trip as an overload or short-circuit fault. If both the black and white handles trip, it indicates a residual-current fault. Follow the supplied fault-finding and reset instructions.

Does the unit provide everything required for an EV installation?

It includes a Type A RCBO and Type 2 SPD. The installer must also confirm the required residual-current sensitivity, DC-fault protection and any open-PEN protection against the charger and earthing arrangement.

How do I choose B Curve or C Curve?

The curve identifies the overcurrent tripping characteristic. Choose the characteristic specified for the charger and circuit design, taking account of starting current and disconnection requirements. Type A is the separate residual-current classification.

Are five outgoing circuits available?

Five modules describes the total enclosure format. The fitted protective devices occupy space, so it must not be treated as five spare outgoing ways. Confirm any additional device layout before ordering.

Can it be mounted outdoors?

The enclosure is IP65-rated. Use a suitable mounting location and correctly sealed cable entries in accordance with the supplied instructions.
