Built to order – allow five working days after your order is received.
The WME08/SP-SI is a customer-specified 8-module heat pump consumer unit built around the WME08/SP metal enclosure. It combines a 100A main switch and Type 2 surge protection with two 20A B-curve Type B HP RCBOs, a 20A B-curve MCB, a 16A B-curve MCB and a 32A Type A mini RCBO.
The two WHR120B-030 heat pump RCBOs provide individual 30mA Type B HP residual-current and overcurrent protection for their respective circuits. The 20A and 16A MCBs provide overcurrent protection only; the 32A Type A RCBO provides its own 30mA residual-current and overcurrent protection. This mix gives the installer distinct protection options within one compact board, subject to the connected equipment and overall circuit design.
Installer Note: The two fitted heat pump devices are Type B HP RCBOs, not a single shared Type B RCD. The MCB-protected circuits do not gain residual-current protection from those RCBOs. Check each circuit against the equipment manufacturer's requirements and the full installation design.
What's included in this build?
- Surge-protected enclosure: 1 × WME08/SP metal board with 100A main switch and 20/40kA SPD
- Type B HP RCBOs: 2 × WHR120B-030 – 20A B curve, 1P+N, 30mA, 10kA
- 20A MCB: 1 × WMC120B – single-pole B curve, 6kA
- 16A MCB: 1 × WMC116B – single-pole B curve, 6kA
- Type A RCBO: 1 × WRB132B-030 – 32A B curve, 30mA
- Busbar: 1 × BB7 7-pin 100A pin-type busbar
Protection layout and capacity
The WME08/SP enclosure has five usable outgoing ways. This build specifies five single-module outgoing devices, so there is no spare outgoing way in the quoted arrangement. The metal enclosure is IP40 rated for indoor installation and measures 232 × 240 × 112 mm.
The Type B HP designation refers to residual-current detection intended for heat pump applications where smooth DC and high-frequency leakage may be present. The B curve on the RCBOs and MCBs describes their separate overcurrent trip characteristic. Confirm the required ratings, RCD type and circuit coordination against the heat pump manufacturer’s instructions before ordering.

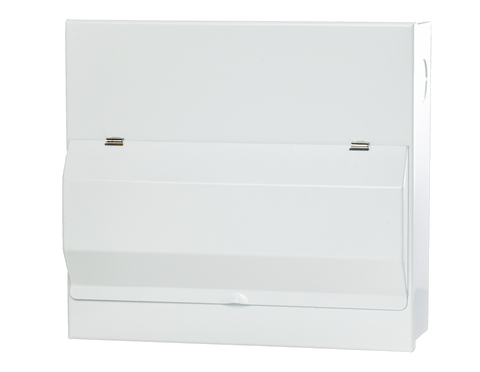

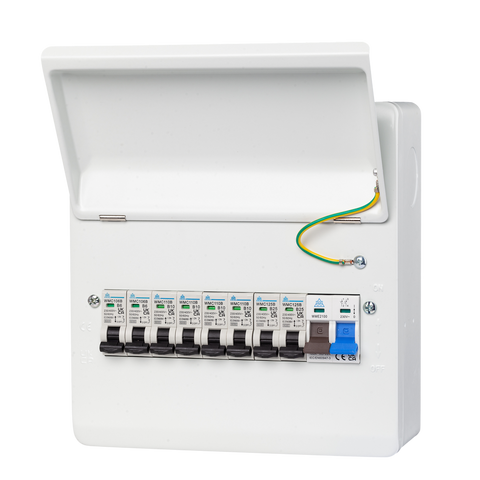

Compare related 8-module boards
| Product | Supplied protection | Choose when |
|---|---|---|
| WME08/SP-SI (this build) | 2 × 20A Type B HP RCBOs, 20A and 16A MCBs, 32A Type A RCBO, main switch and SPD | This exact five-device circuit schedule is specified |
| WME08/SP base board | 100A main switch and SPD; outgoing devices not supplied | You need to select your own outgoing devices |
| WME08/HPR40C heat pump board | Shared Type B HP RCD with its separate MCB and RCBO configuration | The design calls for that different heat pump board arrangement |
Explore heat pump consumer units or 8-module consumer units for other configurations. This listing is for the exact component schedule above. For an alternative build, email sales@pandduk.com with the required circuit details before ordering.
