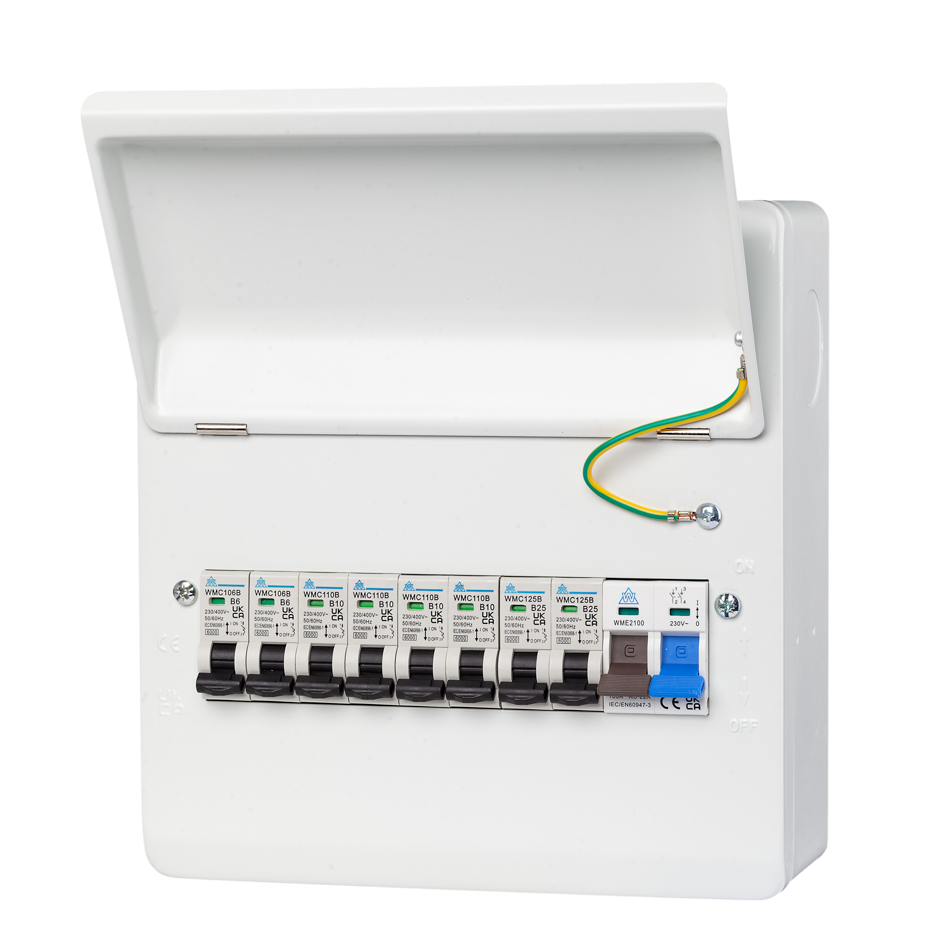

8 Useable Way Consumer Units

The 8 Way Consumer Unit with main switch incomer is a robust steel distribution board designed for small to medium domestic and commercial installs. Supplied built-to-order with a main switch and your choice of 8 MCBs, it provides a safe, compliant, and flexible solution for new circuits or retrofit upgrades.

Housed in a powder-coated steel enclosure with a drop-down lid, this unit is fully certified to BS EN 61008, BS EN 60898, and BS EN 61439-3. Its IP40 protection rating and multiple knockout options make it suitable for a wide range of applications – from main domestic boards to garages, outbuildings, and small commercial distribution setups. For full 18th Edition compliance, pair with a Type 2 SPD.

• Supplied complete – main switch incomer + 8 MCBs of your choice
• Steel enclosure with drop-down lid for added safety
• Multiple knockouts for flexible cable entry (top, bottom, sides, rear)
• Compatible with all WCED MCBs and RCBOs
• Built to order – allow 3 working days for dispatch

• Ways: 8 usable module slots
• Main Incomer: Main switch
• MCBs: 8 pieces, ratings chosen by customer
• Enclosure: Steel, powder-coated, drop-down lid
• Protection Degree: IP40
• Operating Voltage: 230V / 50Hz
• Compliance: BS EN 61008, BS EN 60898, BS EN 61439-3

This consumer unit is supplied fully built with a main switch incomer and MCBs fitted for convenience. Installation and final circuit connections must be carried out by a qualified electrician in accordance with BS 7671.

• Ensure chosen MCB ratings are suitable for each circuit
• Units are pre-assembled but require final testing and certification
• Mount in a dry, ventilated location
• Compatible with WCED RCBOs if combined overload + earth leakage protection is required

What’s included with this 8 way consumer unit?

The unit comes with a main switch incomer and eight MCBs of your choice, pre-fitted inside a steel enclosure. For a smaller option, see our 6 Way Consumer Unit.

Is this unit suitable for garages or outbuildings?

Yes. The 8 way format makes it ideal for garages, small workshops, and outbuildings requiring multiple circuits. For outdoor installs, check our IP65 EV Connection Unit.

Can I request RCBOs instead of MCBs?

Yes. This enclosure is compatible with WCED Type A RCBOs. Using RCBOs ensures every circuit has independent overload and earth leakage protection, reducing nuisance tripping.

How quickly will this be delivered?

As this unit is built to order, please allow 3 working days for assembly. Once dispatched, next-day delivery applies across our circuit protection range.
