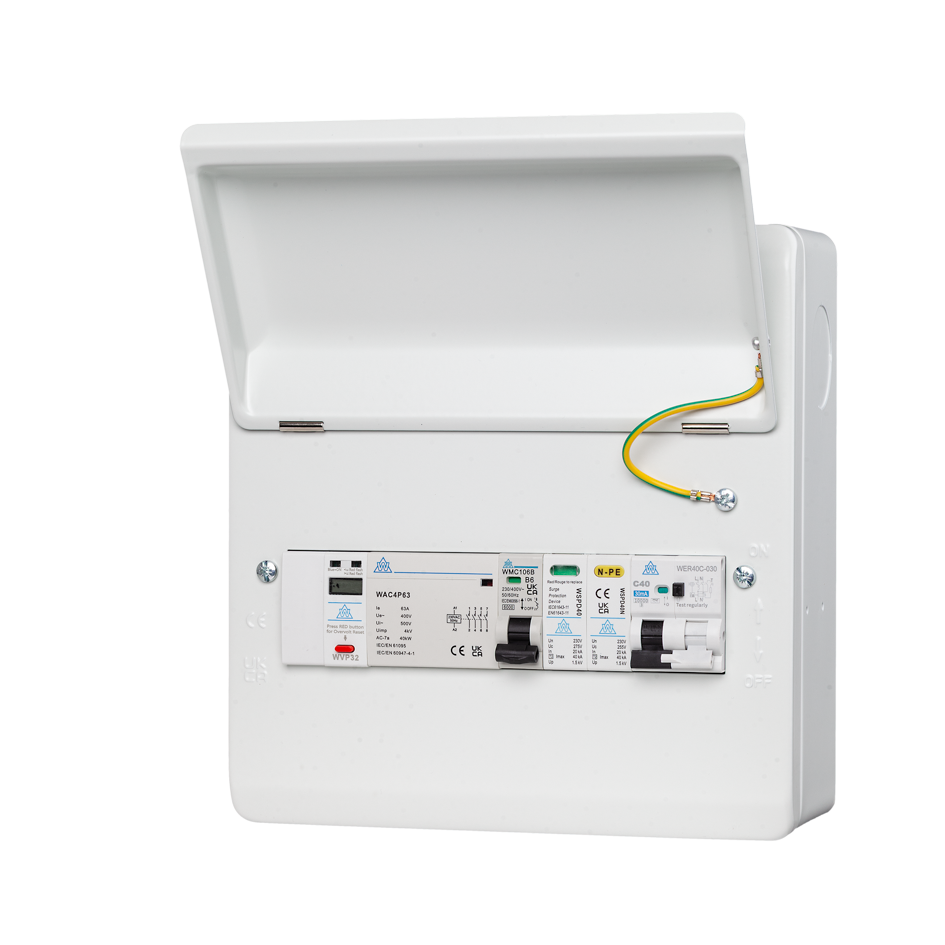

PME Fault Detection Consumer Unit – 40A Type A RCBO with SPD (WMEPME08/SP)

The WMEPME08/SP is a metal PME fault detection consumer unit combining a 40A Type A RCBO with an SPD. It brings PME monitoring, residual-current and overcurrent protection, and surge protection into one enclosure for selection as part of an EV charging installation.

The unit monitors 230V and 240V supplies. Under the specified abnormal-voltage conditions, it disconnects live, neutral and earth within five seconds. The charge point's DC leakage protection and installation requirements must also be checked.

Key features

• RCBO: 40A Type A, C Curve
• Surge protection: SPD included; confirm its exact type and ratings for the installation
• Enclosure: IP40 metal, 10-module capacity
• Dimensions (W × H × D): 232 × 240 × 112mm

Enclosure module capacity is not a statement of spare outgoing circuits.

Images are representative of the PME range and may show a different current rating or component arrangement.

Compare metal PME consumer units

Select by the required protection, metering and load-management functions. Confirm the fitted component specifications for your installation.

Browse our PME and PEN fault protection units for other configurations.

• Model: WMEPME08/SP
• RCBO: 40A Type A
• Trip curve: C
• Rated voltage: 230V AC
• Frequency: 50/60Hz
• Supply monitoring: 230V and 240V AC
• PME voltage monitoring limits: below 207V or above 253V
• PME disconnection: live, neutral and earth within 5 seconds under the stated fault conditions
• Reset: automatic following under-voltage when normal supply returns; manual intervention following over-voltage, according to the supplied instructions
• Enclosure: metal, IP40
• Enclosure module capacity: 10
• Dimensions (W × H × D): 232 × 240 × 112mm
• Assembly short-circuit rating: 16kA; this does not specify the individual RCBO's breaking capacity
• Ambient temperature: -25°C to +55°C
• Storage temperature: -35°C to +55°C
• Assembly standard listed by WCED: BS EN 61439-3
• Surge protection: SPD included

For the RCBO pole arrangement, residual-current sensitivity, individual breaking capacity and exact SPD type/ratings, please contact Power & Data UK.

Installation and commissioning must be carried out by a qualified electrician. Use the instructions supplied with the exact assembly and the charge point, together with the applicable BS 7671 requirements.

• Confirm the charge point's requirements for residual-current, DC leakage, overcurrent and PEN fault protection.
• Select cable sizes and protective-device settings for the load and installation conditions.
• Follow the wiring diagram, terminal identification and tightening torques supplied with the exact assembly.
• Test the protection and PME disconnection/reset functions using the manufacturer's commissioning procedure.
• Mount in an appropriate indoor location consistent with the IP40 rating.
• Confirm the SPD type and coordination required for the circuit.
• Confirm the charge point has the DC leakage protection required by the board and charge-point instructions.
• After an over-voltage trip, investigate the cause and follow the supplied reset procedure.

Is this a 40A or 63A board?

The manufacturer specifies a 40A Type A RCBO for WMEPME08/SP.

Does WMEPME08/SP include surge protection?

Yes, WCED lists this model with an SPD. Please contact Power & Data UK to confirm the fitted SPD type and ratings for your specification.

Does it have eight spare circuits?

WCED specifies a 10-module enclosure. That is the enclosure capacity, not the number of spare outgoing ways after the equipment is fitted.

Does the Type A RCBO provide dedicated smooth-DC detection?

Do not assume a dedicated smooth-DC detection function. WCED specifies use with charge points that have integral DC leakage protection; check the exact charge-point requirements.

Is an earth rod always unnecessary?

Suitability depends on the charge point, earthing arrangement and circuit design. A qualified electrician must select and commission the complete installation using the supplied instructions and the applicable BS 7671 requirements.
