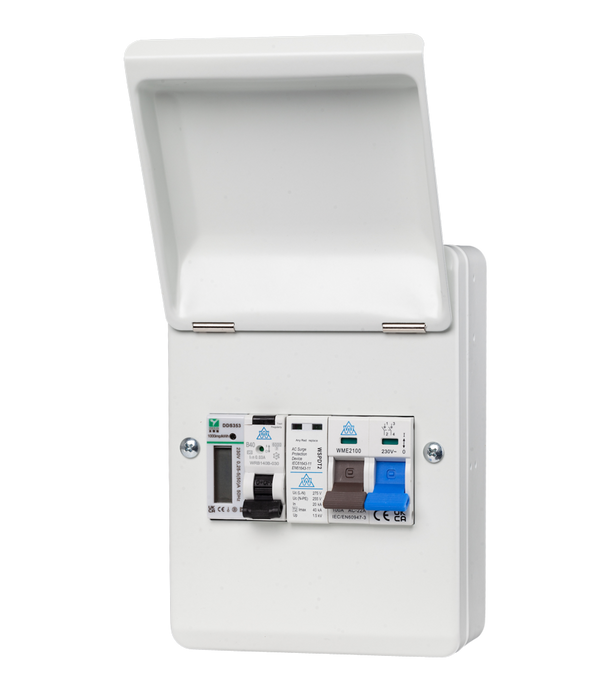

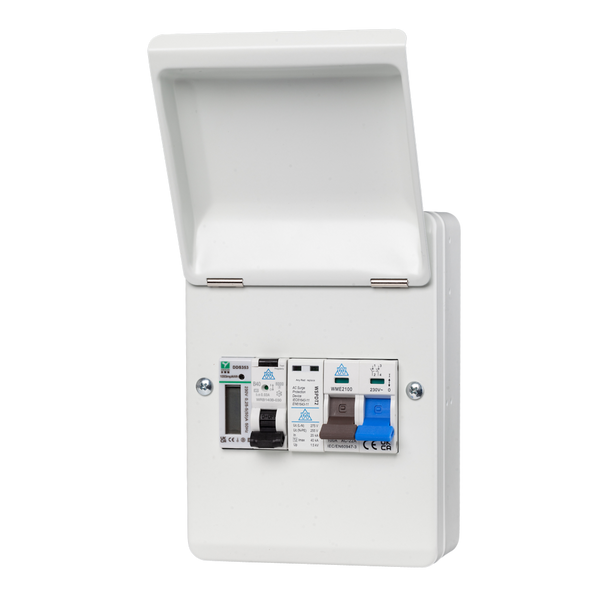

EV Connection Unit with 100A Main Switch/32B MCB/Surge Protection/Kwh Meter
This 5-module EV and Solar Distribution Board includes a 100A main switch, 32A B Curve MCB, Type 2 surge protection device (SPD), and a built-in kWh meter - offering full protection, isolation, and energy monitoring in a single, compact unit. Ideal for electric vehicle charger installs and small solar PV...
This 5-module EV and Solar Distribution Board includes a 100A main switch, 32A B Curve MCB, Type 2 surge protection device (SPD), and a built-in kWh meter - offering full protection, isolation, and energy monitoring in a single, compact unit.
Ideal for electric vehicle charger installs and small solar PV systems, this board is supplied pre-wired and built to order, making it a fast, regulation-ready solution for installers working under 18th Edition requirements.
- 100A Double Pole Main Switch – full isolation of incoming supply
- 32A B Curve MCB – overload and short-circuit protection
- Type 2 SPD – protects circuits from surges and transients
- Built-in kWh Meter – live energy monitoring for EV or PV
- Compact 5-module board: 110mm (W) x 175mm (H) x 91mm (D)
Commonly used as an EV charger incomer unit or a solar PV supply board with surge protection. Suitable for domestic garages, outdoor walls (with IP-rated housing), or internal plant rooms.
This unit is built to order – please allow 2–3 working days from order date.
Is this suitable for EV charger installations?
Yes – it's designed as an incomer unit for EV setups and includes all required protective devices including surge protection and kWh metering.
Can this also be used for solar PV?
Absolutely. This unit can isolate and protect PV systems and is especially useful where a meter and SPD are also required.
Can I change the MCB size?
Yes – other MCB options are available. Contact us if you require a different amperage than 32A.
- Board Type: EV/Solar Consumer Unit
- Modules: 5
- Main Switch: 100A Double Pole
- MCB: 32A B Curve (replaceable if required)
- SPD: Type 2 Surge Protection Device
- Meter: kWh energy monitoring included
- Dimensions: 110mm (W) x 175mm (H) x 91mm (D)
- Compliance: BS EN 61439-3 / BS 7671 Amendment 2
This board should be installed upstream of your EV charger or solar inverter. The included SPD helps protect sensitive electronics from grid and environmental surges. Meter is pre-wired and provides accurate usage tracking for DNO or billing purposes.
- Mount securely to DIN rail within enclosure or backplate
- Use gland entry seals if installed outdoors
- Allow for ventilation space where possible
- Only to be installed by a qualified electrician
