2 Way Plastic Meter Isolator Enclosure
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With

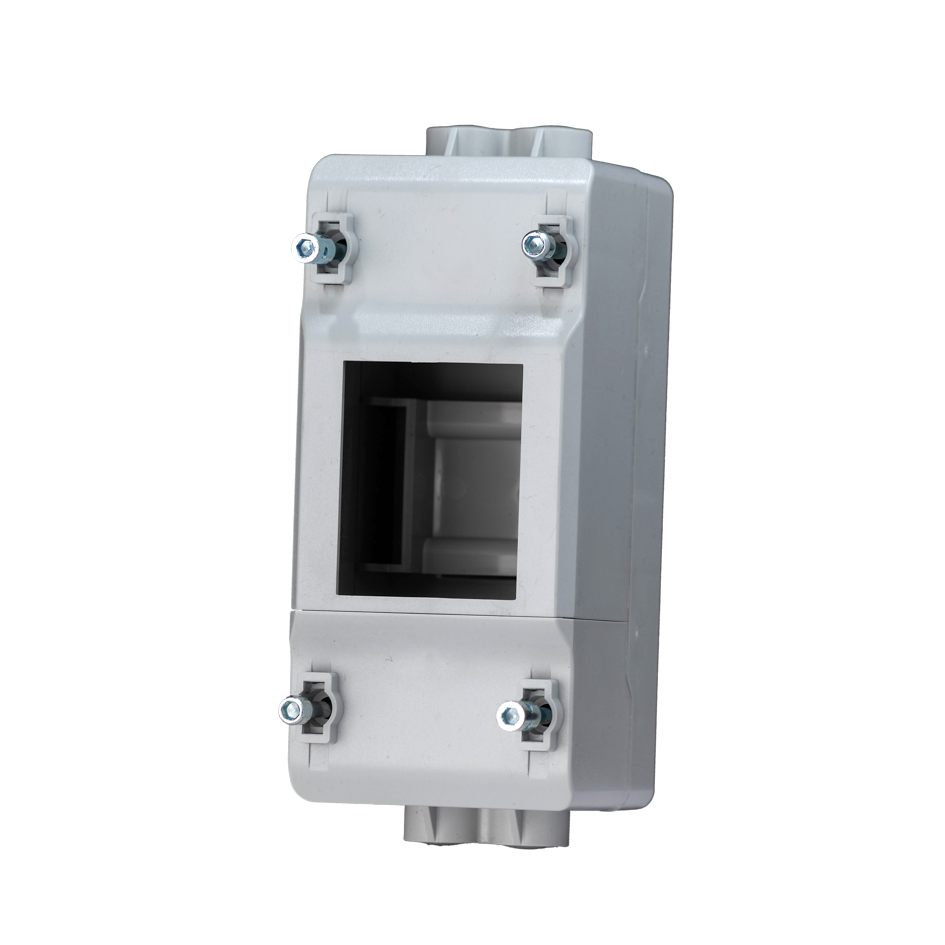

The WEC2 is a compact 2-way plastic meter isolator enclosure designed for safe, tidy isolation and protection of incoming electrical supplies. Commonly specified by DNOs and contractors, it provides a neat housing for main switches, RCDs, or RCBOs where space is limited. Built for indoor use (IP20 rated), it’s ideal...
The WEC2 is a compact 2-way plastic meter isolator enclosure designed for safe, tidy isolation and protection of incoming electrical supplies. Commonly specified by DNOs and contractors, it provides a neat housing for main switches, RCDs, or RCBOs where space is limited.
Built for indoor use (IP20 rated), it’s ideal for small meter cupboards, service heads, or switchroom applications where tamper protection and easy inspection are essential. Each enclosure includes a 3-part tamper-resistant seal and screw-fixed lid to maintain safety during and after installation.
Installer Tip: Use the 2-way model when fitting a single main isolator or RCD in tight meter positions. Always verify clearance between the isolator handle and lid before final fixing.
- Compact 2-module width for restricted spaces
- Supplied with tamper-resistant 3-part sealing kit
- Compatible with WCED and standard DIN rail devices
- Secure screw-fixed lid for safety and inspection access
- Rated IP20 – suitable for indoor environments
Available Variants:
| Part Code | Description | Dimensions (W × H × D mm) |
|---|---|---|
| WEC2 | 2-way plastic meter isolator enclosure | 60 × 135 × 174 |

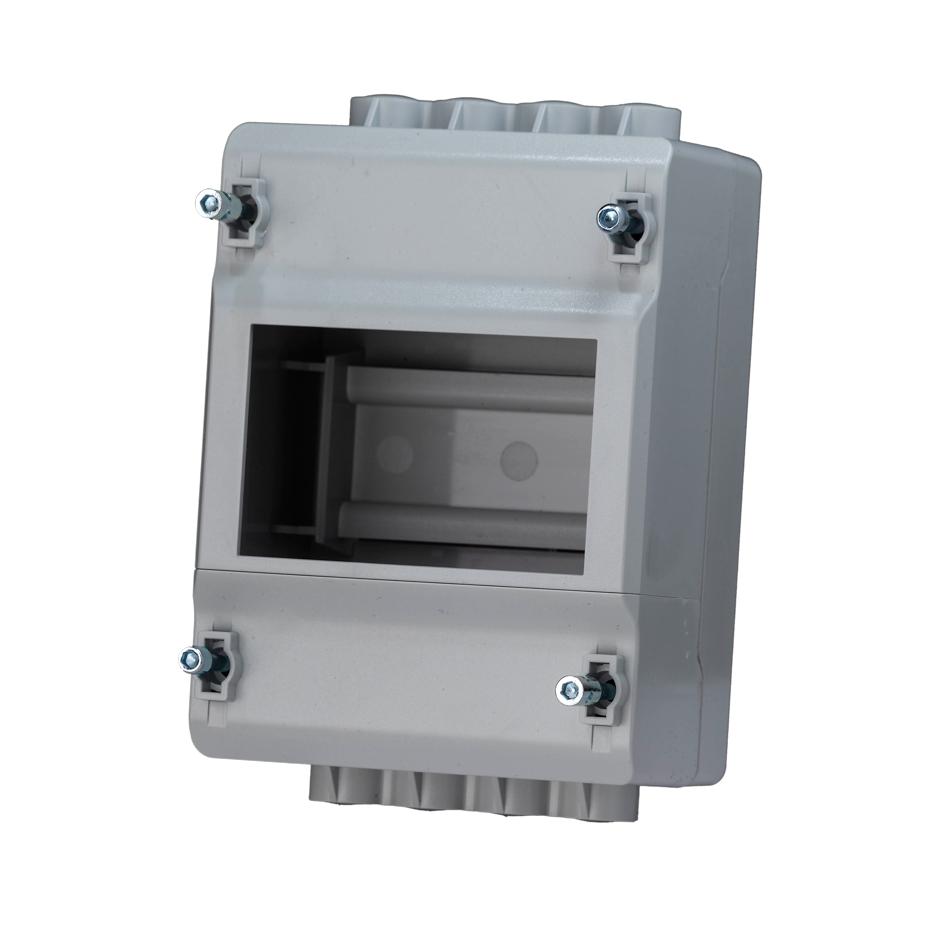

| WEC4 | 4-way plastic meter isolator enclosure | 95 × 145 × 82 |
For larger or outdoor installations, see our general enclosures or garage consumer unit ranges.
What’s the difference between the WEC2 and WEC4?
The WEC2 provides two usable DIN ways, ideal for a single main isolator or RCD. The WEC4 doubles this space for combined RCBO or RCD setups.
Are these enclosures lockable?
They feature a 3-part tamper seal system for security, but are not padlock lockable. For lockable options, see our rotary isolator range.
Which devices fit inside?
Compatible with standard DIN-mounted main switches, RCDs, and RCBOs.
Where should I use the WEC2?
Designed for indoor metering and isolation setups in domestic or small commercial environments. For outdoor or IP-rated boards, see our IP65 Metal Enclosures.
What’s included with the enclosure?
Each unit is supplied with a 3-part tamper seal, screw-fixed lid, and internal DIN rail ready for device installation.
- Part Code: WEC2
- Enclosure Type: Plastic
- Modules: 2 usable DIN ways
- IP Rating: IP20 (indoor use)
- Dimensions (W × H × D): 60 × 135 × 174 mm
- Safety Features: 3-part tamper seal, screw-fixed lid
- Compatibility: Main switches, RCDs, RCBOs
- Compliance: BS EN 61439, BS 7671:2018 (A2)
Installation must be carried out by a qualified electrician in accordance with BS 7671.
- Mount on a flat, solid surface away from damp or heat sources
- Ensure lid screws are fully tightened to maintain safety
- Apply the supplied tamper seal where required by the DNO
- Confirm IP20 rating is appropriate for the environment
