2 Way Mini Metal Enclosure with Lid (WME2L/25)
£9.05
ex VAT
£10.86 inc VAT
SKU: WME2L/25
The WME2L/25 is a 2-way mini metal enclosure with a drop-down lid, measuring 74 × 175 × 90mm (W × H × D). It is supplied with a DIN rail and earth terminal bar for building a suitable circuit-protection assembly.The narrow 74mm body suits installations where enclosure width is limited....
Read full descriptionAccepted payment methods
Description

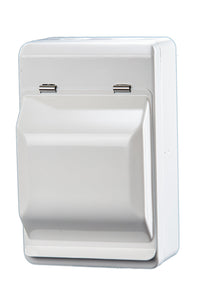

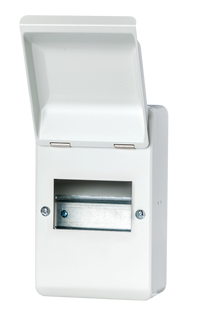

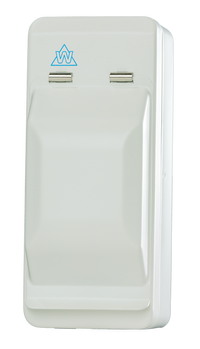

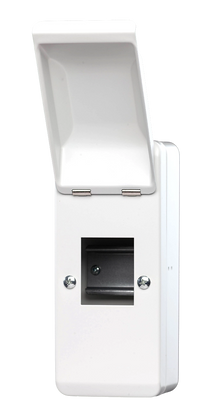

The WME2L/25 is a 2-way mini metal enclosure with a drop-down lid, measuring 74 × 175 × 90mm (W × H × D). It is supplied with a DIN rail and earth terminal bar for building a suitable circuit-protection assembly.
The narrow 74mm body suits installations where enclosure width is limited. Check the depth and connection space of the proposed devices as well as their modular width.
- 2-way enclosure format
- Metal body and drop-down metal lid
- Polyester powder-coated finish
- DIN rail and earth terminal bar included
- 25mm circular knockouts on the top and bottom
- Raised keyhole mounting points
- IP40 enclosure protection
Planning the device layout
Choose devices to suit the complete assembly and circuit design. Check their combined width, depth, terminal access and wiring space before ordering. The enclosure provides a housing; the installed devices determine the circuit-protection functions.
Compare the mini metal enclosure range
| Model | Ways | Cable-entry knockouts | Dimensions W × H × D |
|---|---|---|---|
| WME2L/25 | 2 | 25mm; top and bottom | 74 × 175 × 90mm |
| WME3L/32 | 3 | 25mm and 32mm; top and bottom | 110 × 175 × 91mm |
| WME4L/32 | 4 | 25mm and 32mm; top and bottom | 110 × 175 × 91mm |
| WME5L/32 | 5 | 25mm and 32mm; top and bottom | 130 × 175 × 91mm |
The three- and four-way models have the same external dimensions. Select the required way count and check the proposed device layout, wiring space and cable access.
For other enclosure sizes, browse our electrical enclosures.

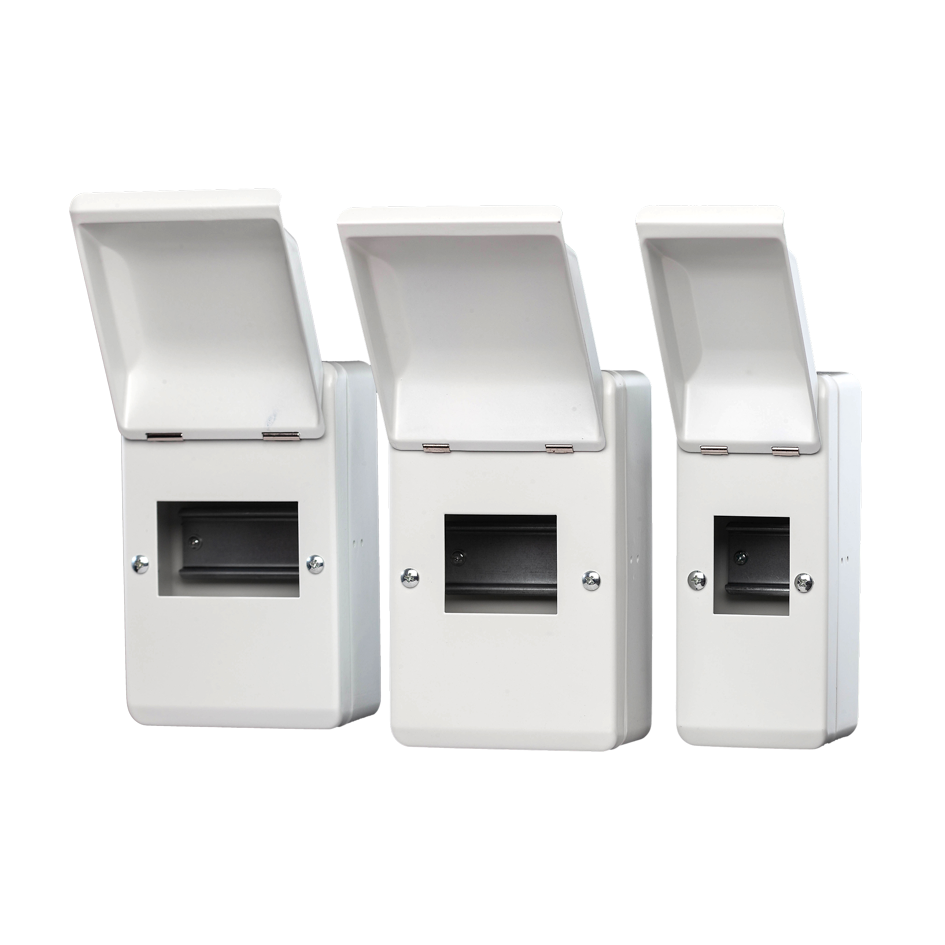

Images may show another size in the range. Select by the product code and listed dimensions.
Technical specs
| Product code | WME2L/25 |
|---|---|
| Enclosure format | 2 way |
| Dimensions (W × H × D) | 74 × 175 × 90mm |
| Construction | Metal body with drop-down metal lid |
| Finish | Polyester powder coating |
| Mounting | Raised keyhole mounting points |
| DIN rail | Included |
| Earth terminal bar | Included |
| Cable-entry knockouts | 25mm; top and bottom |
| Ingress protection | IP40 |
| Enclosure voltage rating | 230V / 400V AC |
| Recommended earth-terminal-bar torque | 2.0Nm |
| Enclosure standard | BS EN 61439-3 |
Installation notes
Install using the raised keyhole mounting points in a suitable indoor location. Use the 25mm top or bottom knockouts with cable-entry fittings appropriate for the installation.
Whitecliffe recommends 2.0Nm for the earth terminal bar. Use the specified torque for each fitted device and terminal; this value is not a universal setting for the complete assembly.
A qualified electrician should check device compatibility, cable space, enclosure earthing and the completed assembly before energising. Follow the supplied enclosure and device instructions.
FAQs
What are the dimensions?
The WME2L/25 measures 74 × 175 × 90mm, in width × height × depth order.
What is supplied with the enclosure?
The enclosure has a drop-down metal lid and is supplied with a DIN rail and earth terminal bar.
Will any RCBO, MCB or SPD combination fit?
Check the exact device sizes and the proposed assembly. The 2-way format is not a guarantee that any combination of 2 devices will fit; some devices occupy more than one way and require additional connection space.
Which cable-entry knockouts are provided?
25mm circular knockouts are provided on the top and bottom. Select the entry fittings for the cables and installation requirements.
Is it weatherproof?
No. The IP40 enclosure is intended for suitable indoor locations. Use an enclosure with protection appropriate for the environment where it will be installed.
