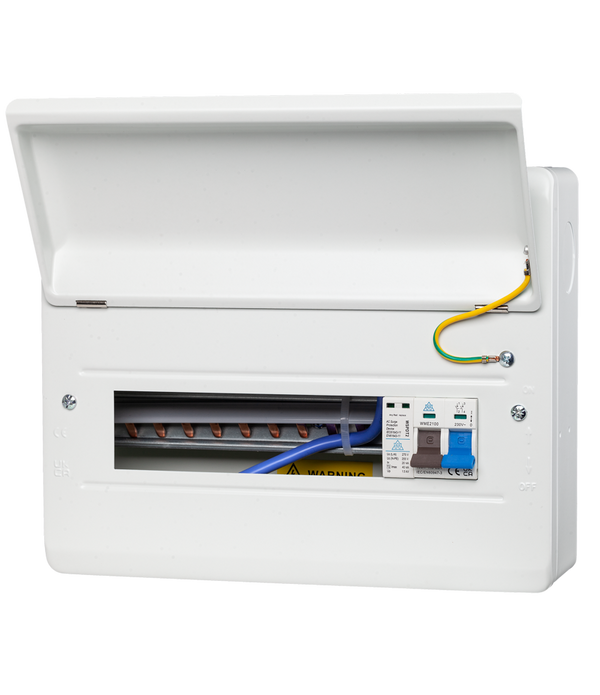

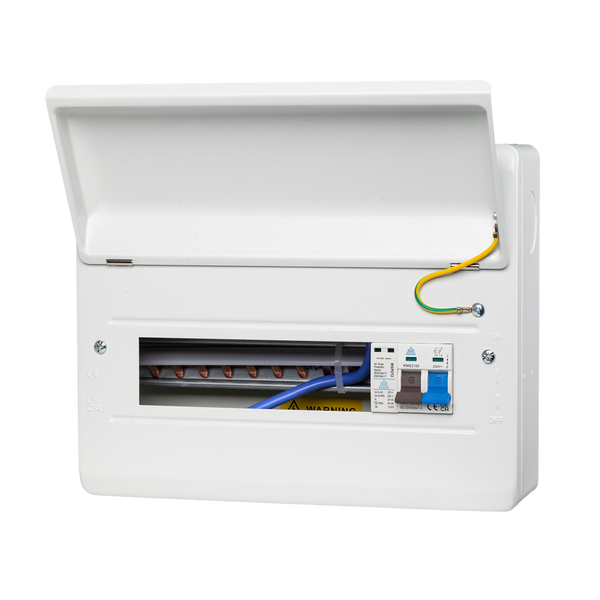

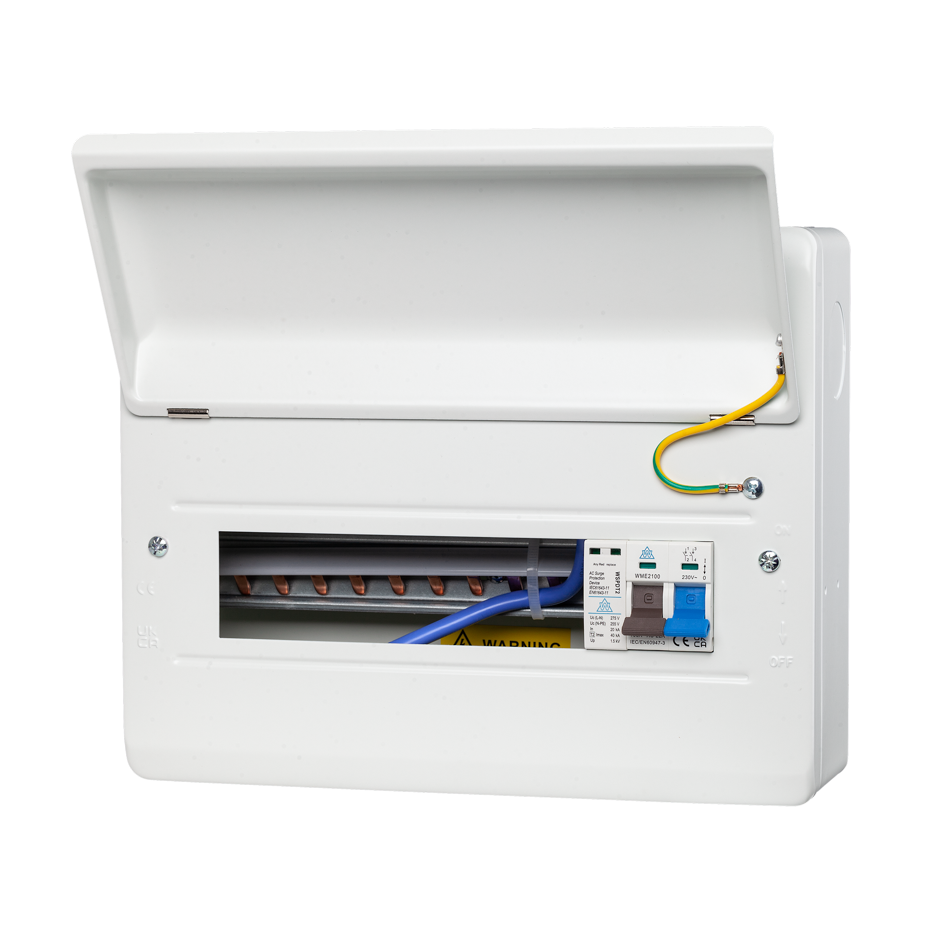

WME 10 Module Surge Protected Metal Enclosure – 100A Main Switch + SPD (WME10/SP)
£59.95
ex VAT
£71.94 inc VAT
SKU: WME10/SP
Forward orders accepted — ask us for the current lead time
Ask us about availability
Currently unavailable
7 usable ways. Main switch and surge protection included. The WME10/SP combines a 100A main switch and factory-fitted Type 2 SPD in a 10-module metal enclosure. Seven outgoing circuit positions remain available. 7 ways Usable outgoing circuits 100A Main switch included Type 2 Factory-fitted SPD Why the usable-way count matters...
Read full descriptionAccepted payment methods
Description
7 usable ways. Main switch and surge protection included.
The WME10/SP combines a 100A main switch and factory-fitted Type 2 SPD in a 10-module metal enclosure. Seven outgoing circuit positions remain available.
7 ways
Usable outgoing circuits
100A
Main switch included
Type 2
Factory-fitted SPD
Why the usable-way count matters
The main switch and surge protection device are already included in this 10-module assembly. That leaves 7 usable outgoing ways for the circuits in your design. Knowing this upfront helps you choose an appropriately sized enclosure without unnecessary upsizing.
Where this board fits
An option for domestic upgrades, smaller commercial boards and dedicated EV or renewable supplies where additional outgoing circuits are needed. It provides two more usable ways than the WME08/SP. Check the required protection and circuit schedule against the installation design.
Construction and key features
- 1.2mm powder-coated steel enclosure with raised DIN rail
- 100A main switch and Type 2 SPD factory fitted
- Seven usable outgoing ways within the ten-module housing
- Neutral and earth bars on both sides, with shrouded terminals
- Removable gland plate and multiple knockouts
- Currently listed standards: BS EN 61439-3 and BS 7671:2018 Amendment 2
Usable-way figures refer to the stated product configurations. Final product selection and protective-device requirements must follow the installation design and applicable manufacturer instructions.
Technical specs
- Enclosure: 10 module steel housing, IP40
- Main Switch: 100A isolator
- Surge Protection: Type 2 SPD, factory fitted
- Usable Ways: 7
- Material: 1.2mm steel, white powder coat
- Operating Voltage: 230V AC, 50Hz
- Standards: BS EN 61439-3, BS 7671:2018 A2
Installation notes
This enclosure is supplied pre-built with main switch and SPD installed. Final wiring and testing must be completed by a qualified electrician.
- Pre-assembled – no additional internal wiring required
- Knockouts and removable gland plate for flexible cable entry
- Confirm 10 module (7 usable ways) meets load requirements
- Indoor installation only (IP40 steel housing)
FAQs
Where is the WME10/SP most useful?
It’s a good fit for EV installs with room for a charger and several outgoing domestic or renewable circuits, thanks to its 7 usable ways.
Does this include surge protection?
Yes. The board includes a factory-fitted Type 2 SPD, meeting Amendment 2 compliance.
Is it weatherproof?
No, it is an IP40 indoor-rated steel enclosure. For outdoor EV or renewable installs, see our IP65 EV boards.
What’s the build and delivery time?
All WME enclosures are built to order within 3 working days. Once dispatched, free UK mainland next-day delivery applies on orders over £30.
