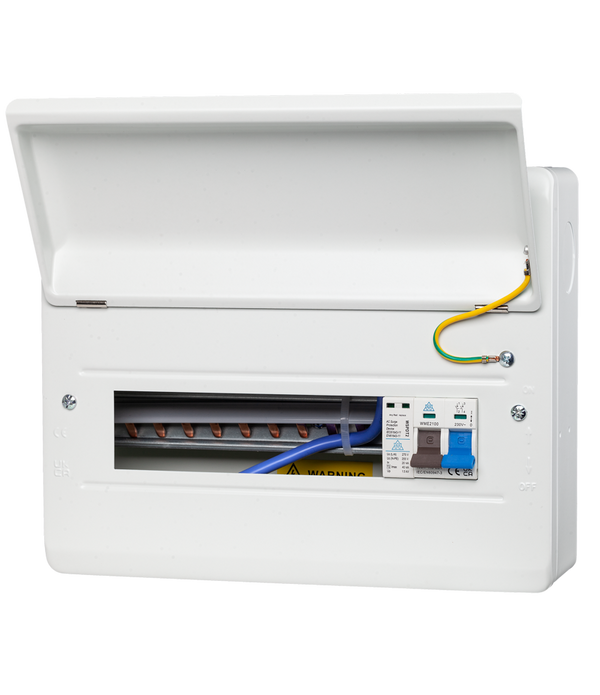

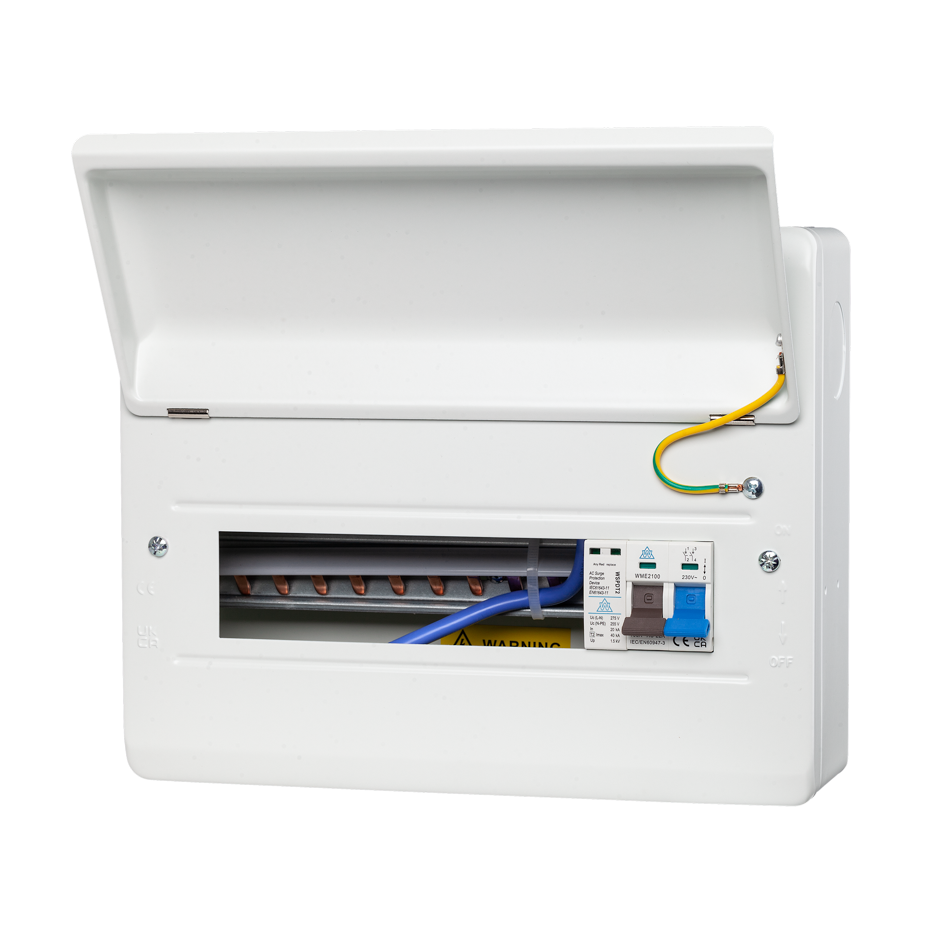

WME 12 Module Surge Protected Metal Enclosure – 100A Main Switch + SPD (WME12/SP)
£65.75
ex VAT
£78.90 inc VAT
SKU: WME12/SP
Forward orders accepted — ask us for the current lead time
Ask us about availability
Currently unavailable
9 usable ways. Main switch and surge protection included. The WME12/SP combines a 100A main switch and factory-fitted Type 2 SPD in a 12-module metal enclosure. Nine outgoing circuit positions remain available. 9 ways Usable outgoing circuits 100A Main switch included Type 2 Factory-fitted SPD Why the usable-way count matters...
Read full descriptionAccepted payment methods
Description
9 usable ways. Main switch and surge protection included.
The WME12/SP combines a 100A main switch and factory-fitted Type 2 SPD in a 12-module metal enclosure. Nine outgoing circuit positions remain available.
9 ways
Usable outgoing circuits
100A
Main switch included
Type 2
Factory-fitted SPD
Why the usable-way count matters
The main switch and surge protection device are already included in this 12-module assembly. That leaves 9 usable outgoing ways for the circuits in your design. Knowing this upfront helps you choose an appropriately sized enclosure without unnecessary upsizing.
Where this board fits
Suited to larger small-scale distribution arrangements and residential, EV or renewable circuits where nine outgoing ways are needed and the specified protection arrangement is appropriate. If a smaller board will accommodate the circuit schedule, compare the 8- and 10-module options below.
Construction and key features
- 1.2mm powder-coated steel enclosure with raised DIN rail
- 100A main switch and Type 2 SPD factory fitted
- Nine usable outgoing ways within the twelve-module housing
- Neutral and earth bars on both sides, with shrouded terminals
- Removable gland plate and multiple cable-entry knockouts
- Currently listed standards: BS EN 61439-3 and BS 7671:2018 Amendment 2
Usable-way figures refer to the stated product configurations. Final product selection and protective-device requirements must follow the installation design and applicable manufacturer instructions.
Technical specs
- Enclosure: 12 module steel housing, IP40
- Main Switch: 100A isolator
- Surge Protection: Type 2 SPD, pre-fitted
- Usable Ways: 9
- Material: 1.2mm non-combustible steel, white powder coat
- Operating Voltage: 230V AC, 50Hz
- Standards: BS EN 61439-3, BS 7671:2018 A2
Installation notes
This enclosure is supplied fully assembled with main switch and SPD fitted. Final wiring and certification must be carried out by a qualified electrician.
- Delivered pre-built – no extra internal wiring needed
- Knockouts and gland plate provided for easy entry
- Ensure 12 module (9 usable ways) meets load requirements
- Indoor installation only (IP40)
FAQs
When should I use the 12 module enclosure?
It’s a strong fit for EV installs with multiple outgoing circuits or hybrid renewable setups where more space is needed compared with a 6, 8, or 10 module board.
Does this include surge protection?
Yes. It includes a factory-fitted Type 2 SPD, meeting Amendment 2 compliance.
Is it outdoor rated?
No. This model is IP40 steel, intended for indoor use. For weatherproof boards, see our IP65 EV units.
How long for delivery?
Units are built to order. Allow 3 working days for build time, with free UK mainland next-day delivery once dispatched.
