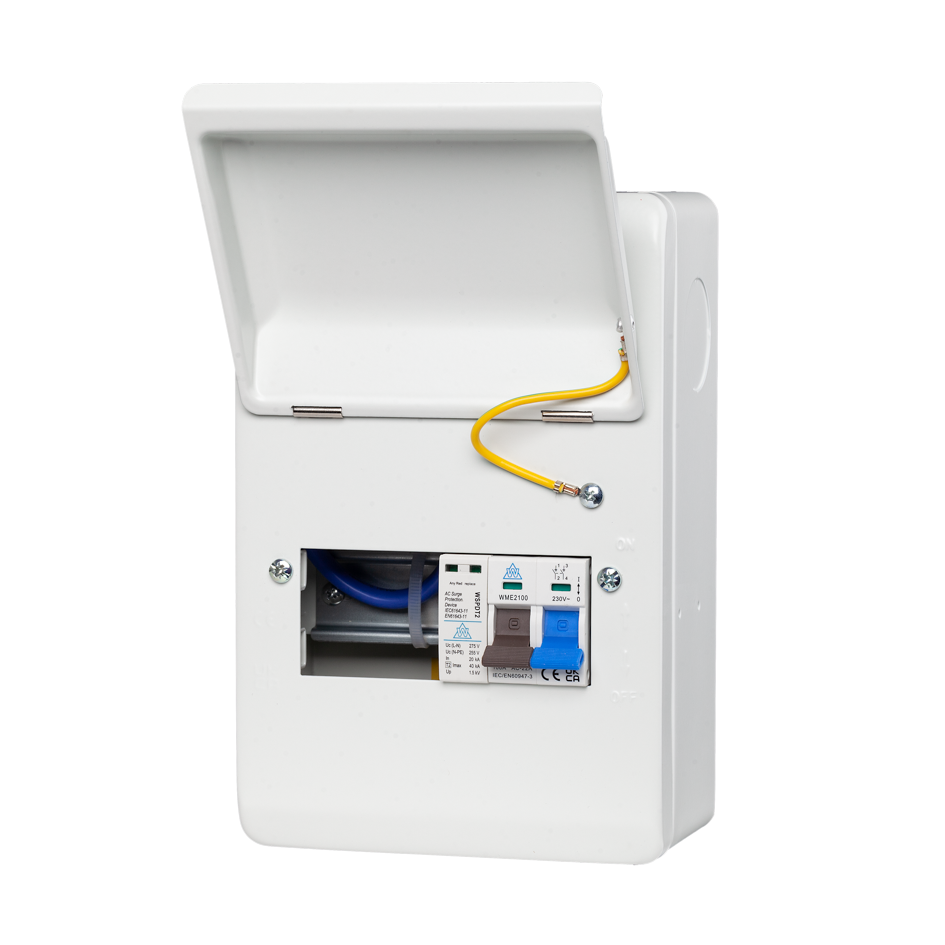

WME 6 Module Surge Protected Metal Enclosure – 100A Main Switch + SPD (WME06/SP)
£50.40
ex VAT
£60.48 inc VAT
SKU: WME06/SP
Forward orders accepted — ask us for the current lead time
Ask us about availability
Currently unavailable
3 usable ways. Main switch and surge protection included. The WME06/SP combines a 100A main switch and factory-fitted Type 2 SPD within a compact 6-module metal enclosure. Three outgoing circuit positions remain available. 3 ways Usable outgoing circuits 100A Main switch included Type 2 Factory-fitted SPD Why the usable-way count...
Read full descriptionAccepted payment methods
Description
3 usable ways. Main switch and surge protection included.
The WME06/SP combines a 100A main switch and factory-fitted Type 2 SPD within a compact 6-module metal enclosure. Three outgoing circuit positions remain available.
3 ways
Usable outgoing circuits
100A
Main switch included
Type 2
Factory-fitted SPD
Why the usable-way count matters
The main switch and surge protection device are already included in the six-module assembly. That leaves three usable outgoing ways for the circuits in your design. Knowing this upfront helps you choose an appropriately sized enclosure without unnecessary upsizing.
Where this board fits
A compact option for smaller sub-boards, residential upgrades and dedicated circuits where a six-module metal enclosure with main-switch isolation and Type 2 surge protection meets the installation specification. If you need additional outgoing ways, compare the next sizes below.
Construction and key features
- 1.2mm powder-coated steel enclosure with raised DIN rail
- 100A main switch and Type 2 SPD factory fitted
- Three usable outgoing ways within the six-module housing
- Neutral and earth bars on both sides, with shrouded terminals
- Knockouts, keyhole wall-mount fixings and captive cover screws
- Currently listed standards: BS EN 61439-3 and BS 7671:2018 Amendment 2
Usable-way figures refer to the stated product configurations. Final product selection and protective-device requirements must follow the installation design and applicable manufacturer instructions.
Technical specs
- Enclosure: 6 module steel housing, IP40
- Main Switch: 100A isolator
- Surge Protection: Type 2 SPD, factory fitted
- Usable Ways: 3
- Material: 1.2mm non-combustible steel, white powder coat
- Operating Voltage: 230V AC, 50Hz
- Standards: BS EN 61439-3, BS 7671:2018 A2
Installation notes
This unit is supplied pre-built with main switch and SPD installed. A qualified electrician must carry out final wiring and testing.
- Pre-assembled – no additional wiring inside required
- Multiple knockouts for adaptable cable entry
- Ensure selected size (6 module, 3 usable ways) suits circuit design
- Install in a dry, accessible location with adequate ventilation
FAQs
What makes the WME06/SP different?
It’s the most compact model in the WME range, offering 3 usable outgoing ways. Ideal for small EV installs, outbuildings, or sub-mains with limited circuits.
Does it include surge protection?
Yes. A factory-fitted Type 2 SPD provides transient overvoltage defence, helping you meet Amendment 2 requirements.
Can it be used outdoors?
No, this is an IP40 steel enclosure intended for indoor installs. For outdoor EV units, see our IP65 EV-ready boards.
How quickly is it supplied?
All WME units are built to order. Allow 3 working days for assembly, then next-day delivery applies once dispatched.
