4 Way IP40 Metal Enclosure – For MCBs & RCBOs (WME04)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With

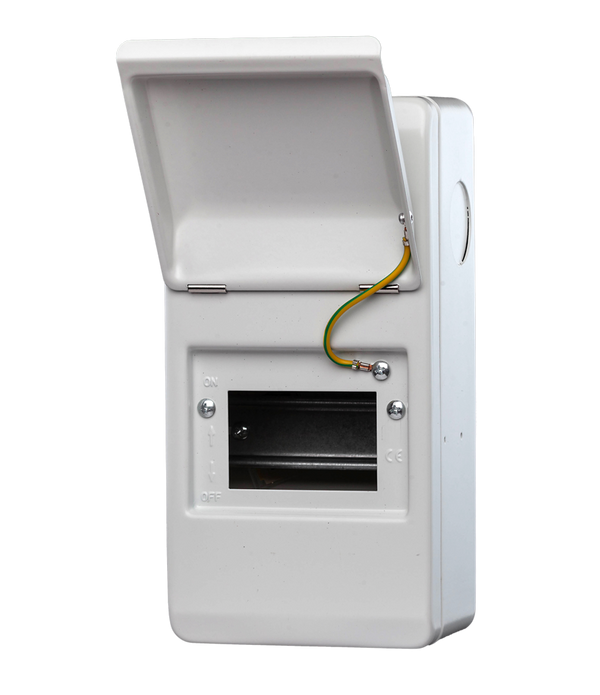

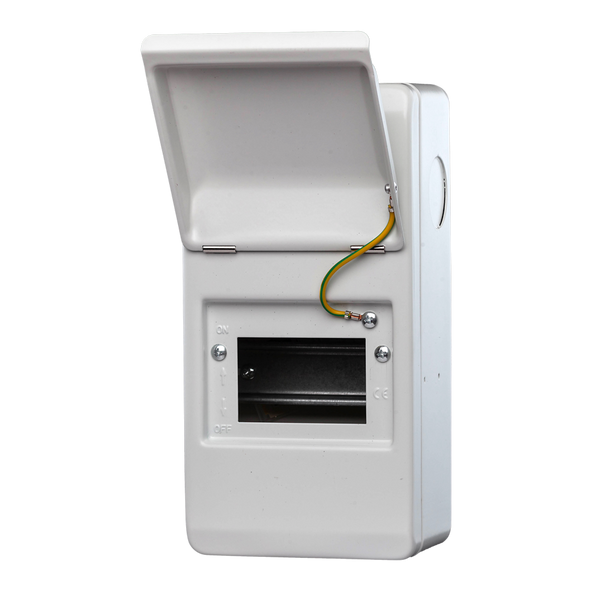

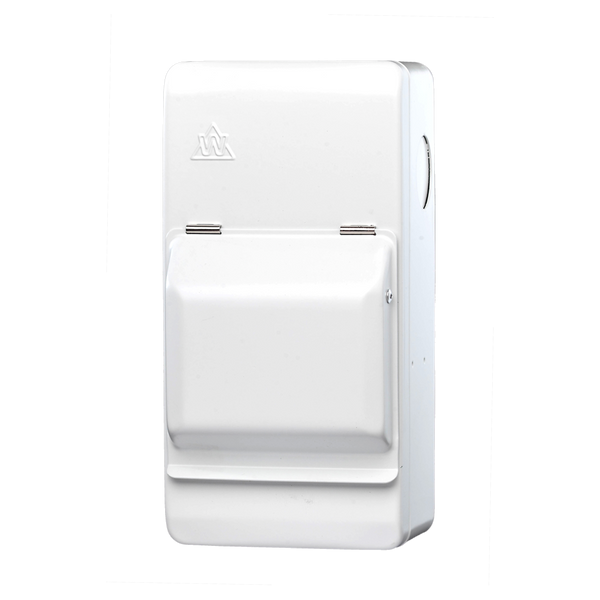

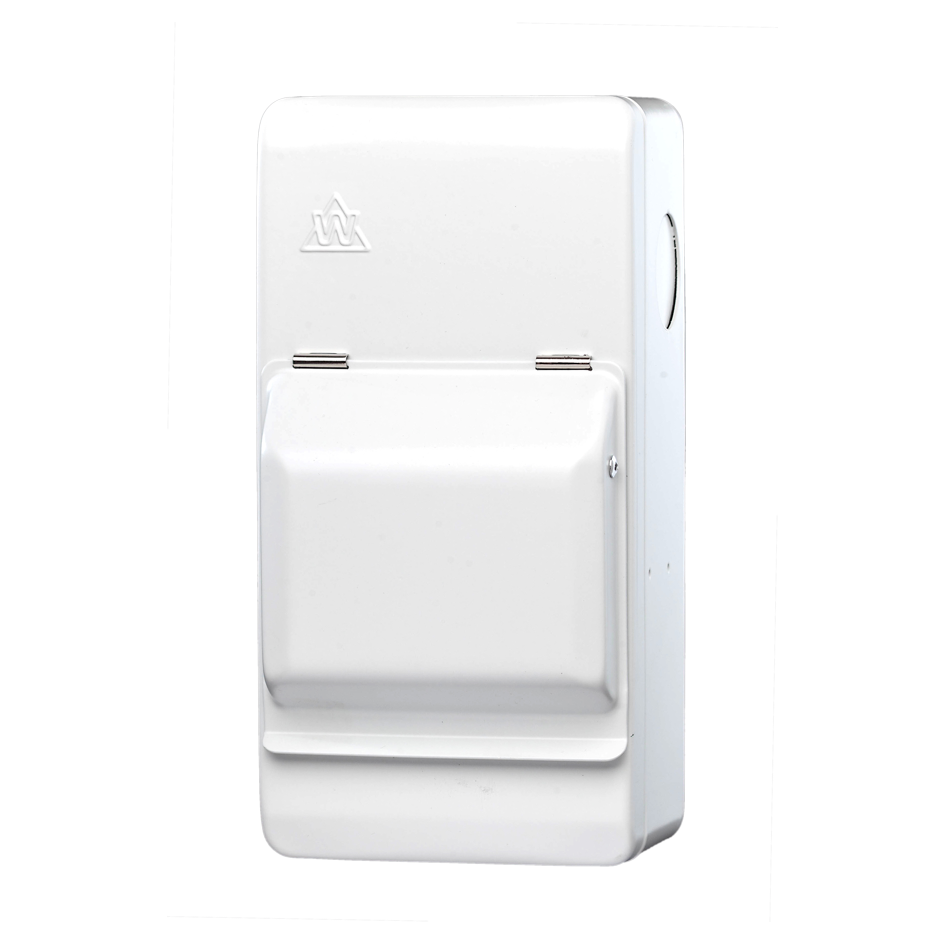

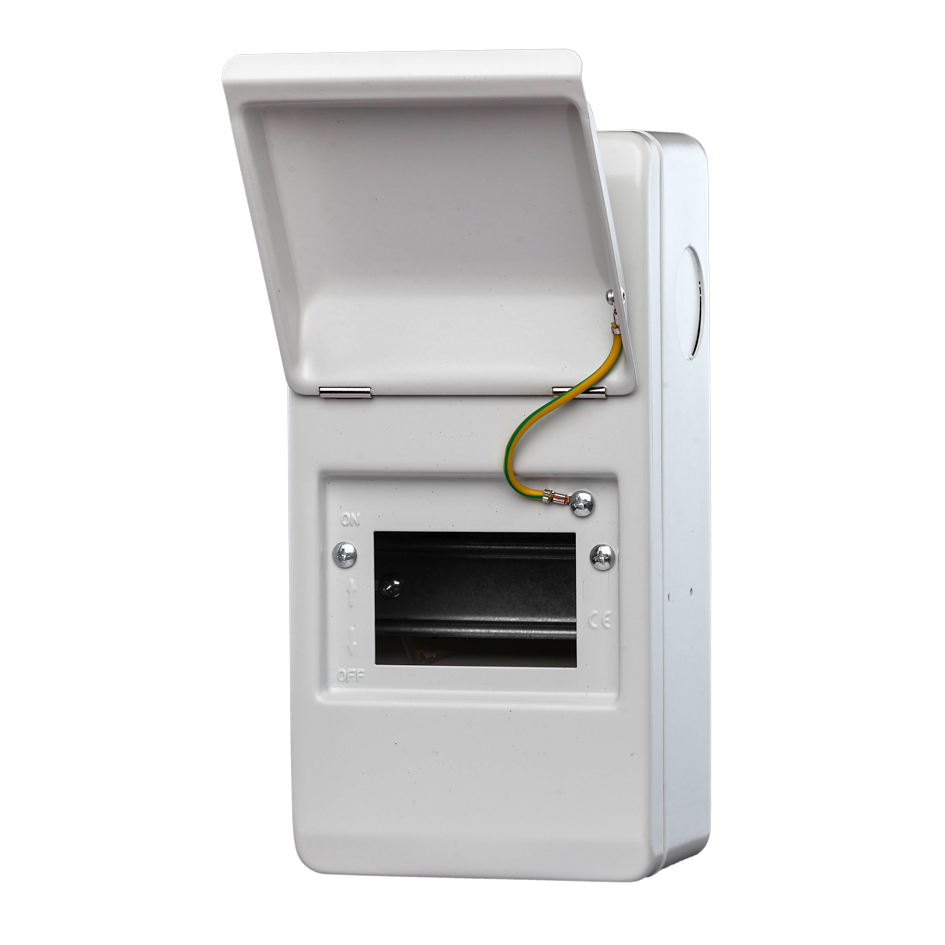

The WME04 is a compact 4-way IP40-rated metal enclosure designed to house MCBs, RCBOs, and other DIN-rail–mounted protection devices. Built from durable steel with a white polyester powder coating, it’s ideal for small domestic or light-commercial circuits where a neat, compliant, and installer-friendly solution is needed. Despite its size, the...
The WME04 is a compact 4-way IP40-rated metal enclosure designed to house MCBs, RCBOs, and other DIN-rail–mounted protection devices. Built from durable steel with a white polyester powder coating, it’s ideal for small domestic or light-commercial circuits where a neat, compliant, and installer-friendly solution is needed.
Despite its size, the WME04 maintains full compliance with BS 7671:2018 Amendment 2, offering safe cable routing, accessible terminations, and reliable mechanical strength. It’s the perfect choice for compact distribution setups, extensions, or localised control circuits where only a few outgoing ways are required.
Installer Tip: Always leave adequate bend radius behind the DIN rail when wiring small enclosures. This helps avoid stress on terminations and ensures long-term reliability under BS 7671 Regulation 526.6.
- 4 usable ways – ideal for small circuits and add-on installs
- Raised DIN rail for cleaner cable management
- Supplied with neutral and earth terminal bars
- Multiple 25mm, 32mm, and 40mm knockout entry points
- Steel body finished in white polyester powder coating
- Raised keyholes for quick wall mounting
- Complies with BS EN 62208 and BS 7671 standards

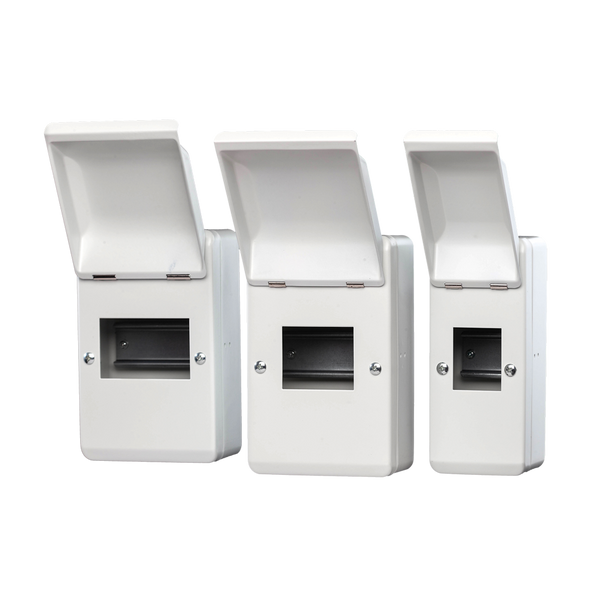

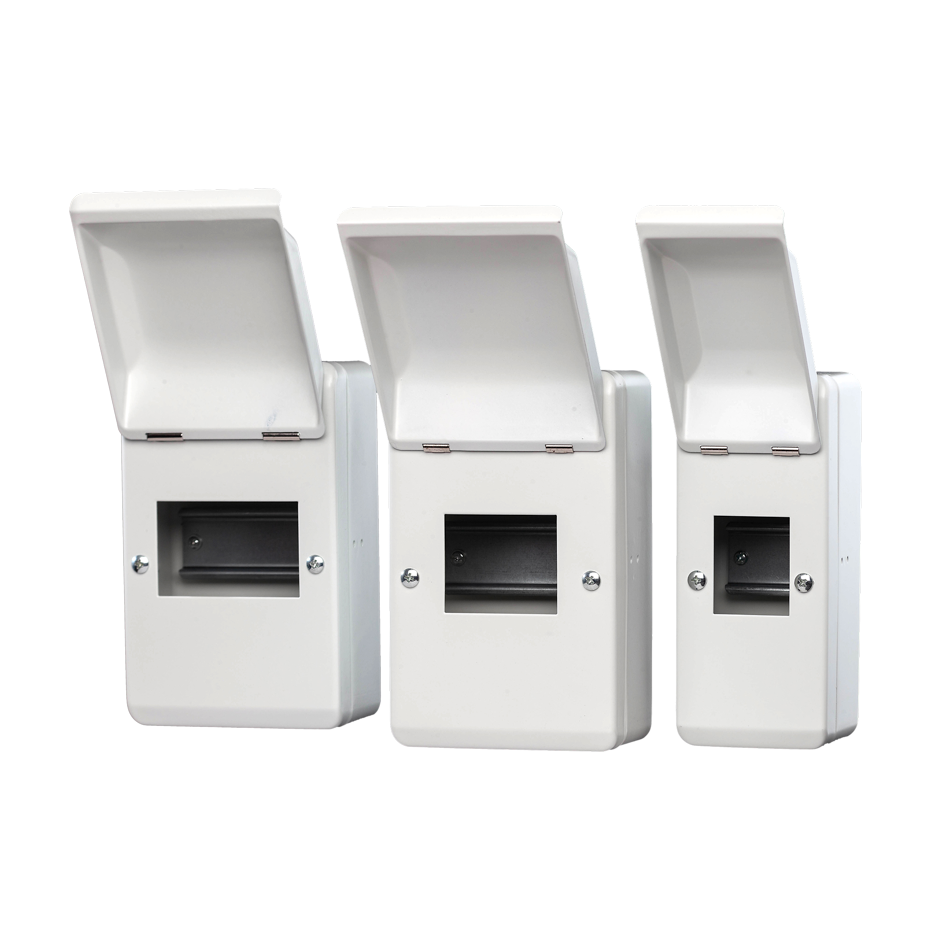

| Part Code | Description | Dimensions (W × H × D mm) |
|---|---|---|
| WME04 | 4 Way IP40 Metal Enclosure – For MCBs & RCBOs | 130 × 240 × 112 |
| WME06 | 6 Way IP40 Metal Enclosure – For MCBs & RCBOs | 160 × 240 × 112 |
| WME08 | 8 Way IP40 Metal Enclosure – For MCBs & RCBOs | 232 × 240 × 112 |
| WME10 | 10 Way IP40 Metal Enclosure – For MCBs & RCBOs | 232 × 240 × 112 |
The WME04 is small but dependable - providing a robust and compliant housing for compact protection setups. Whether used for EV-ready circuits, lighting, or control gear, it keeps your installations safe and tidy under 18th Edition requirements.
Is the WME04 supplied pre-wired?
No. It’s supplied empty to allow flexible configuration for your chosen devices.
Can I fit an RCBO or MCB inside?
Yes. It accepts standard 18mm DIN-rail devices including MCBs and RCBOs.
Does it include busbars?
No. Busbars should be purchased separately to suit your circuit configuration.
Is this enclosure suitable for outdoor use?
No. The WME04 is IP40 rated and must be installed indoors only.
Does it meet 18th Edition standards?
Yes. It fully complies with BS EN 62208 and BS 7671:2018 Amendment 2 when installed by a qualified electrician.
- Material: Steel, white polyester powder coated
- Ingress Protection: IP40 (indoor use only)
- DIN Rail: Raised 18mm rail
- Knockouts: 25mm & 32mm (top/bottom), 40mm (sides/back)
- Terminals: Neutral and earth bars included
- Mounting: Raised keyholes for wall fixing
- Dimensions: 130 × 240 × 112 mm
- Compliance: BS EN 62208, BS 7671 (18th Edition)
Install on a secure wall surface using all raised keyhole fixings. Always check knockout edges before inserting glands or conduit to prevent cable damage. This enclosure is for indoor use only and must be installed in accordance with BS 7671 and manufacturer guidance.
- Mount securely and ensure a level finish
- Use appropriate fixings for surface type
- Inspect all knockouts for sharp edges
- Fit grommets or glands to maintain IP40 protection
- Torque all terminals to manufacturer settings
