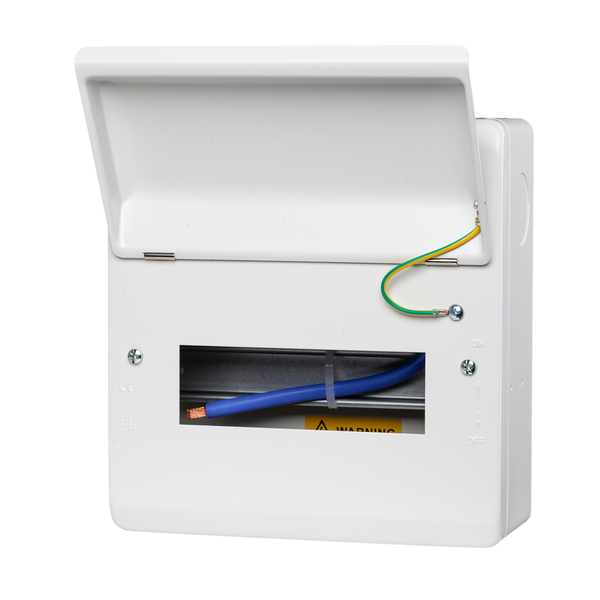

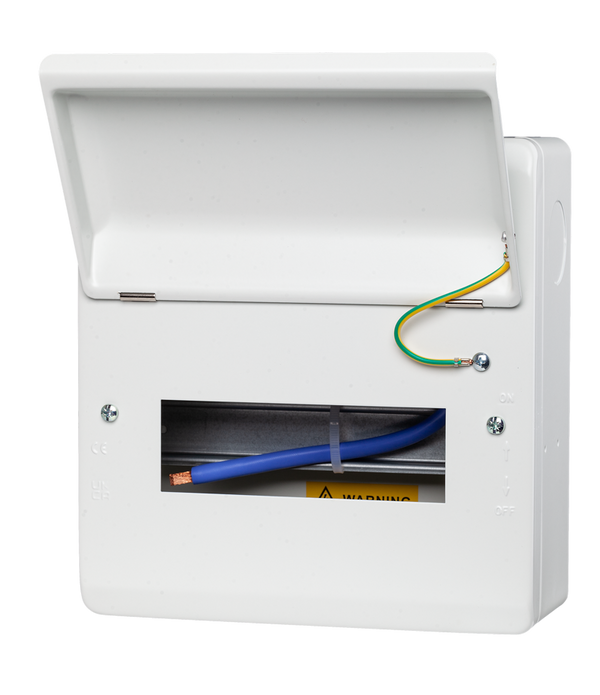

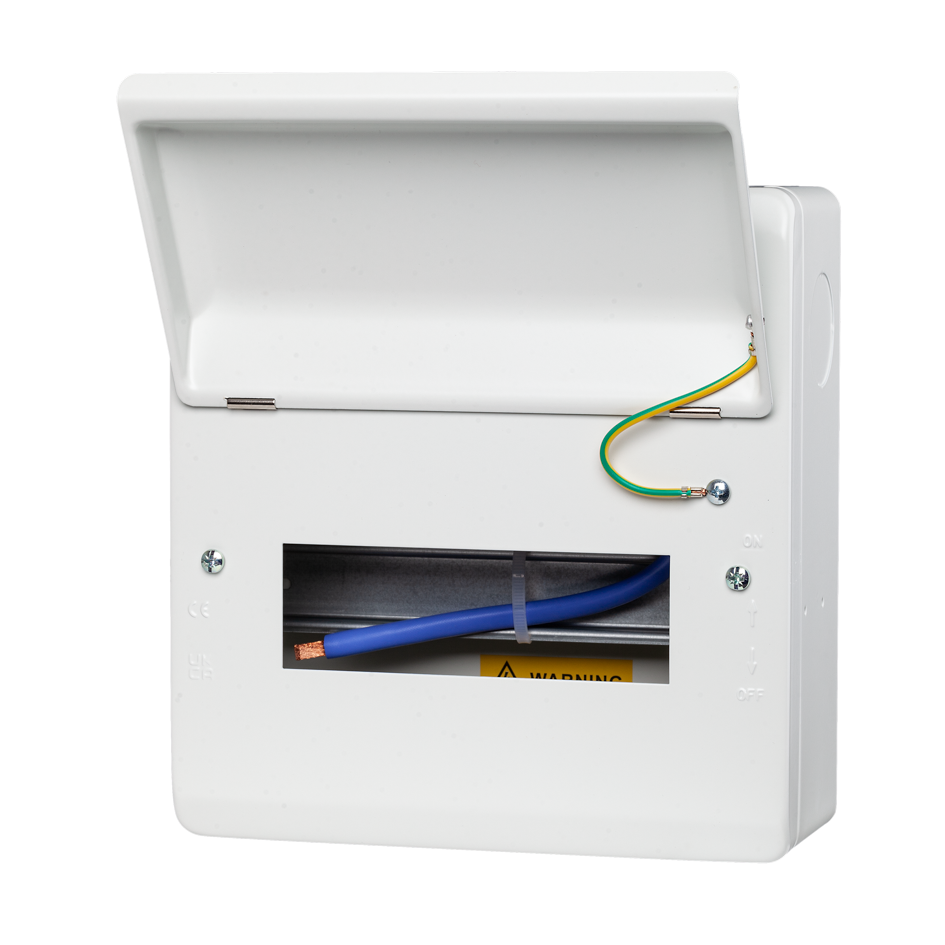

8 Way IP40 Metal Enclosure – For MCBs & RCBOs (WME08)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With
The WME08 is a versatile 8-way IP40-rated metal enclosure designed to house MCBs, RCBOs, and other DIN-rail–mounted protective devices. Built from steel and finished in a white polyester powder coating, it offers robust protection and a professional finish for mid-sized domestic or commercial distribution circuits. With additional wiring space compared...
The WME08 is a versatile 8-way IP40-rated metal enclosure designed to house MCBs, RCBOs, and other DIN-rail–mounted protective devices. Built from steel and finished in a white polyester powder coating, it offers robust protection and a professional finish for mid-sized domestic or commercial distribution circuits.
With additional wiring space compared to smaller models, the WME08 provides a clean, accessible layout that supports 18th Edition BS 7671 compliance. It’s ideal for use in small consumer units, sub-distribution boards, or EV-ready installs where a neat, compliant enclosure is required.
Installer Tip: When using multiple RCBOs, keep final conductor lengths consistent. Uneven wiring can increase strain on terminations and affect fault isolation performance under BS 7671 Regulation 526.1.
- 8 usable ways – ideal for small to mid-sized installations
- Raised DIN rail for cleaner cable management
- Neutral and earth terminal bars supplied
- Multiple knockouts: 25mm & 32mm (top/bottom), 40mm (sides/back)
- Raised keyholes for secure wall fixing
- Steel body with white polyester powder coating
- Fully compliant with BS EN 62208 and BS 7671
| Part Code | Description | Dimensions (W × H × D mm) |
|---|---|---|
| WME04 | 4 Way IP40 Metal Enclosure – For MCBs & RCBOs | 130 × 240 × 112 |
| WME06 | 6 Way IP40 Metal Enclosure – For MCBs & RCBOs | 160 × 240 × 112 |
| WME08 | 8 Way IP40 Metal Enclosure – For MCBs & RCBOs | 232 × 240 × 112 |
| WME10 | 10 Way IP40 Metal Enclosure – For MCBs & RCBOs | 232 × 240 × 112 |
The WME08 bridges the gap between compact and mid-size enclosures, offering ample space for wiring and protection devices while maintaining a minimal footprint. A trusted, regulation-ready solution for any installation requiring safe, enclosed circuit protection under BS 7671:2018 Amendment 2.
Does the WME08 come pre-wired?
No. It’s supplied empty so you can configure your choice of MCBs or RCBOs as required.
Can I fit surge protection inside this enclosure?
Yes. It can house single or modular surge devices if space and coordination requirements are met.
Does it include a busbar?
No. Busbars should be ordered separately depending on your circuit layout.
Is it suitable for outdoor or garage installs?
Only indoors. For outdoor or damp locations, use an IP65-rated enclosure.
Does it meet current wiring standards?
Yes. It’s compliant with BS EN 62208 and BS 7671:2018 Amendment 2 when installed correctly.
- Material: Steel, white polyester powder coated
- Ingress Protection: IP40 (indoor use only)
- DIN Rail: Raised 18mm rail
- Knockouts: 25mm & 32mm (top/bottom), 40mm (sides/back)
- Terminals: Neutral and earth bars included
- Mounting: Raised keyholes for wall fixing
- Dimensions: 232 × 240 × 112 mm
- Compliance: BS EN 62208, BS 7671 (18th Edition)
Install securely on a flat wall surface using the four raised keyhole fixings. Check that all knockout edges are smooth before fitting glands or conduits to preserve cable insulation and IP40 integrity. Perform insulation and polarity testing before commissioning.
- Use suitable fixings for the wall material
- Ensure a level and plumb alignment during installation
- Fit grommets or glands to open knockouts
- Maintain earth continuity with all metal components
- Only install in dry, indoor environments (IP40 rated)
