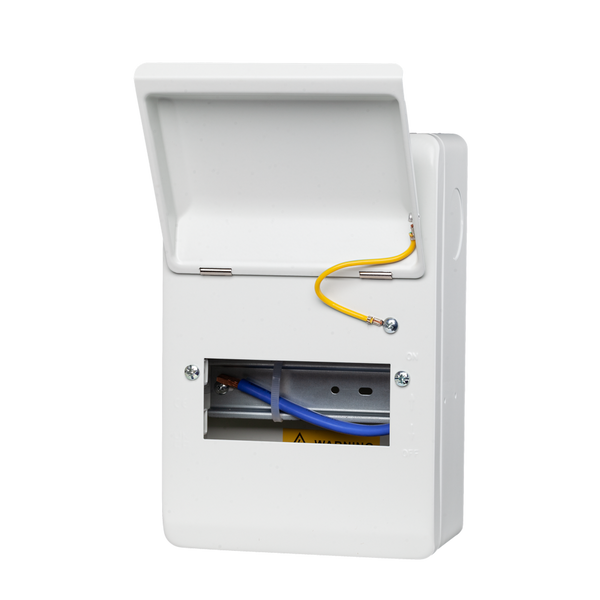

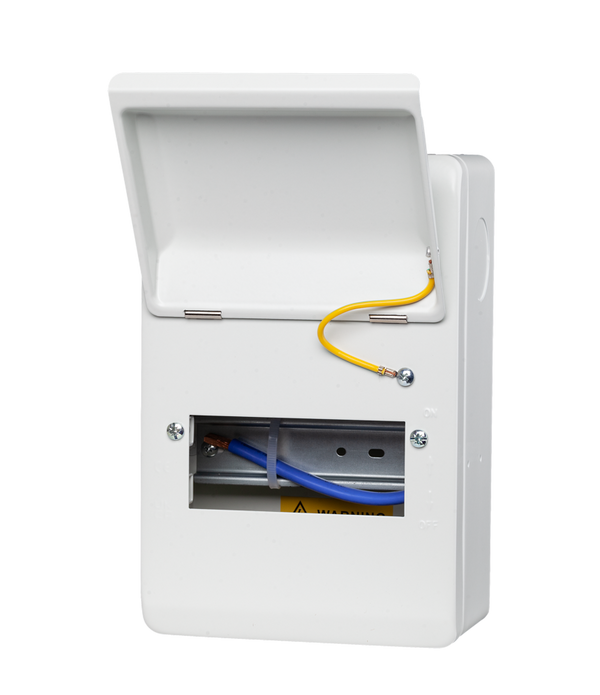

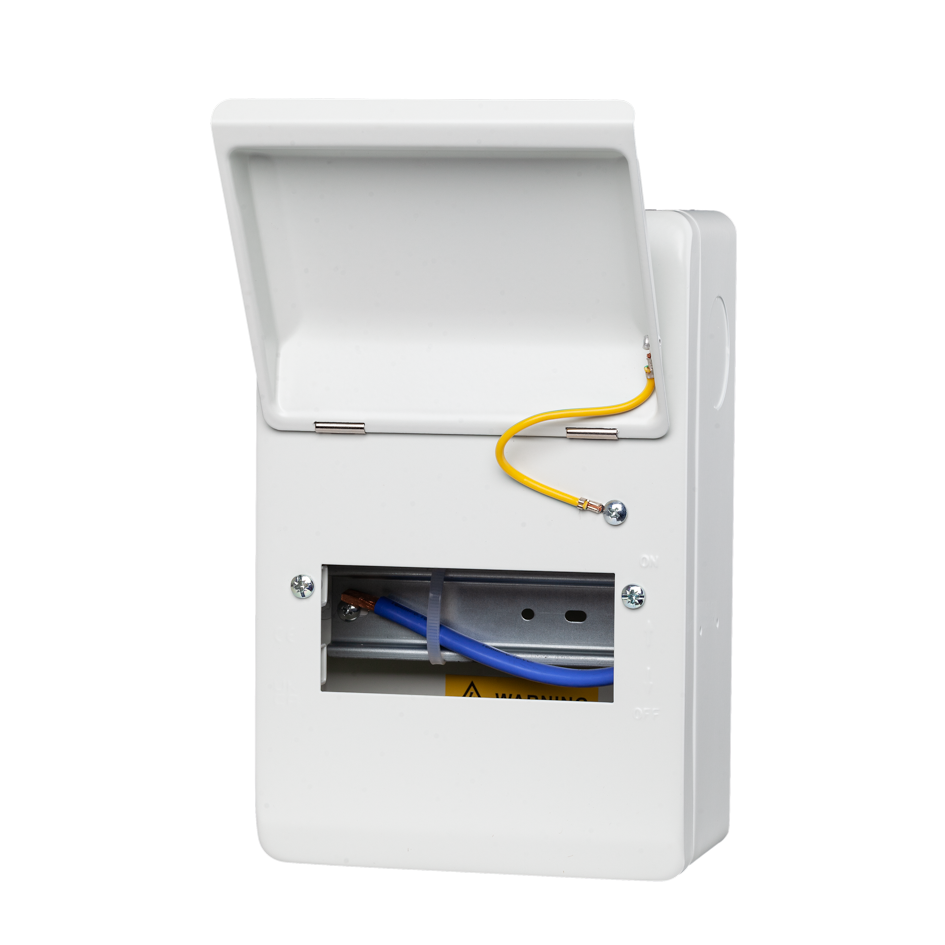

6 Way IP40 Metal Enclosure – For MCBs & RCBOs (WME06)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With
The WME06 is a durable 6-way IP40-rated metal enclosure designed to house MCBs, RCBOs, and other DIN-rail–mounted protective devices. Compact yet practical, it’s ideal for small to mid-sized distribution applications across domestic, commercial, or light-industrial environments. Manufactured from steel and finished in white polyester powder coating, the WME06 provides a...
The WME06 is a durable 6-way IP40-rated metal enclosure designed to house MCBs, RCBOs, and other DIN-rail–mounted protective devices. Compact yet practical, it’s ideal for small to mid-sized distribution applications across domestic, commercial, or light-industrial environments.
Manufactured from steel and finished in white polyester powder coating, the WME06 provides a clean, professional appearance while ensuring full compliance with BS 7671:2018 Amendment 2. Each enclosure includes neutral and earth terminal bars, multiple knockout entry points, and raised keyholes for easy surface mounting.
Installer Tip: When terminating multiple RCBOs, keep neutral conductors neatly grouped and labelled. It simplifies testing and maintenance while ensuring compliance with BS 7671 Regulation 514.9.1.
- 6 usable ways – ideal for small distribution or extension boards
- Raised DIN rail for improved cable routing
- Includes neutral and earth terminal bars
- Multiple 25mm, 32mm, and 40mm knockout entry points
- Steel enclosure with white polyester powder coating
- Raised keyholes for easy wall installation
- Complies with BS EN 62208 and BS 7671 (18th Edition)
| Part Code | Description | Dimensions (W × H × D mm) |
|---|---|---|
| WME04 | 4 Way IP40 Metal Enclosure – For MCBs & RCBOs | 130 × 240 × 112 |
| WME06 | 6 Way IP40 Metal Enclosure – For MCBs & RCBOs | 160 × 240 × 112 |
| WME08 | 8 Way IP40 Metal Enclosure – For MCBs & RCBOs | 232 × 240 × 112 |
| WME10 | 10 Way IP40 Metal Enclosure – For MCBs & RCBOs | 232 × 240 × 112 |
The WME06 offers a versatile, installer-approved solution for smaller distribution setups. Reliable, compliant, and space-efficient — it’s designed to keep your circuits safe, accessible, and BS 7671-ready.
Is the WME06 pre-wired?
No. It’s supplied empty to allow custom configuration for your choice of protective devices.
Can I install RCBOs and MCBs inside?
Yes. It accepts all standard 18mm-wide DIN-rail devices.
Does it include a busbar?
No. Busbars must be purchased separately based on your device layout.
Is this enclosure IP-rated for outdoor use?
No. The WME06 is IP40 rated for indoor environments only.
Does it meet current wiring regulations?
Yes. It complies with BS EN 62208 and BS 7671:2018 Amendment 2.
- Material: Steel, white polyester powder coated
- Ingress Protection: IP40 (indoor use only)
- DIN Rail: Raised 18mm rail
- Knockouts: 25mm & 32mm (top/bottom), 40mm (sides/back)
- Terminals: Neutral and earth bars included
- Mounting: Raised keyholes for secure wall fixing
- Dimensions: 160 × 240 × 112 mm
- Compliance: BS EN 62208, BS 7671 (18th Edition)
Install using the four raised keyhole fixings to ensure even load distribution. Knockouts are positioned on all sides for flexible cable entry. Before use, inspect the metal edges and fit grommets or glands to maintain IP40 protection.
- Mount on a secure indoor surface
- Ensure level alignment during fixing
- Deburr and protect all knockout edges
- Maintain proper earth bonding to the enclosure
- Perform insulation and polarity testing before energising
