14 Way IP40 Metal Enclosure – For MCBs & RCBOs (WME14)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With

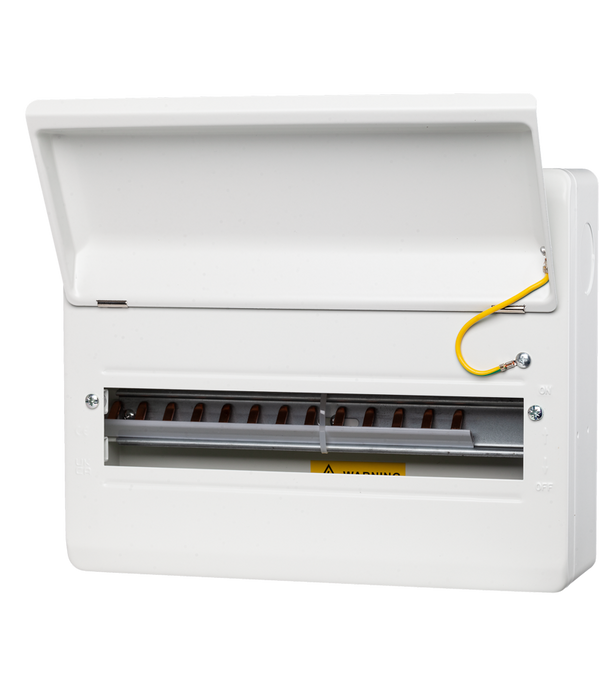

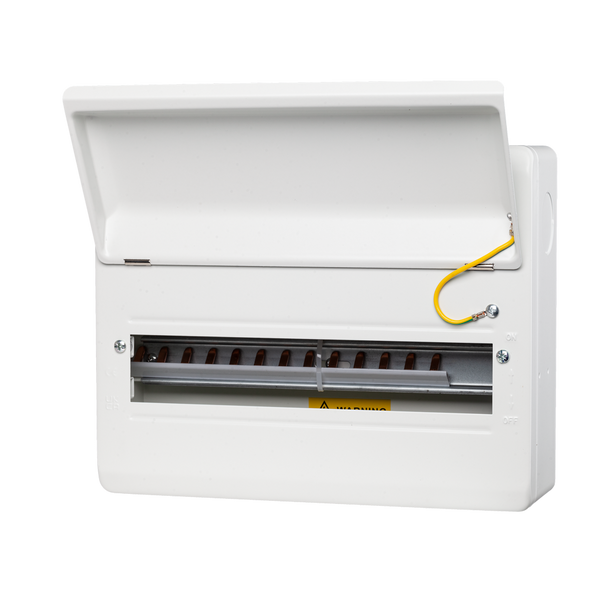

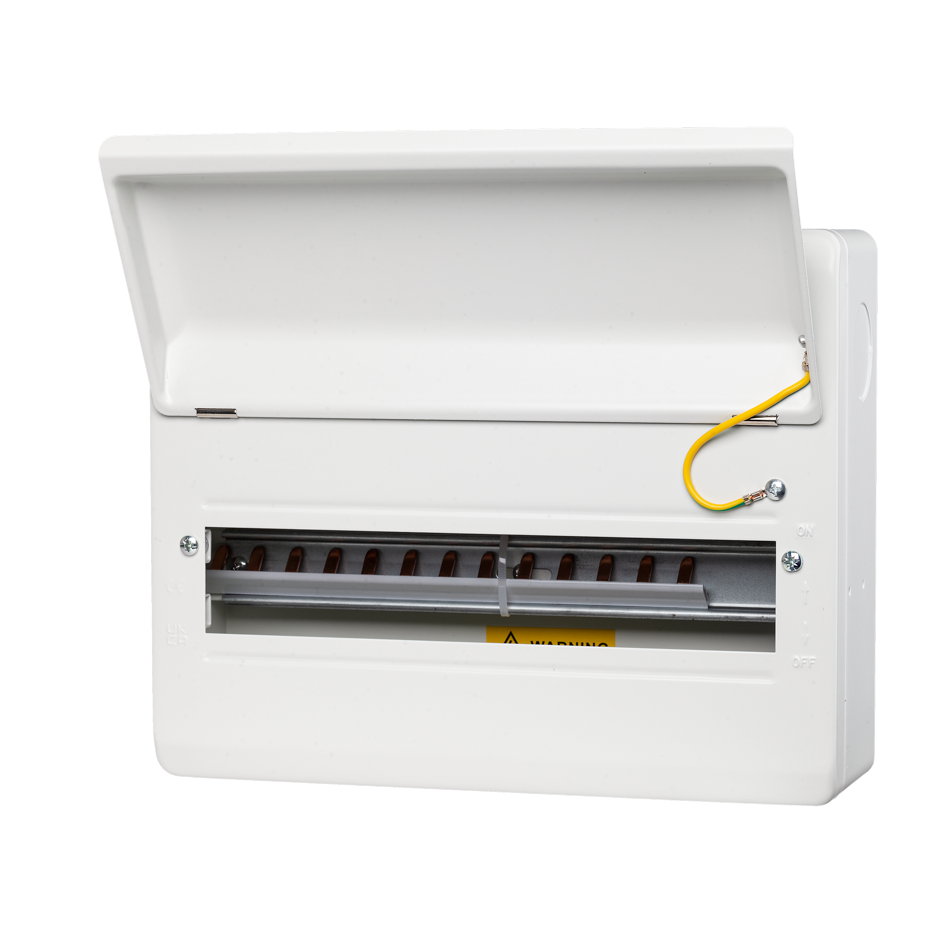

The WME14 is a 14-way IP40-rated metal enclosure designed to house MCBs, RCBOs, and other DIN-rail–mounted circuit protection devices. It provides the strength, accessibility, and compliance needed for larger indoor distribution builds across residential and light commercial environments. The powder-coated steel body ensures long-term durability and a clean finish suitable...
The WME14 is a 14-way IP40-rated metal enclosure designed to house MCBs, RCBOs, and other DIN-rail–mounted circuit protection devices. It provides the strength, accessibility, and compliance needed for larger indoor distribution builds across residential and light commercial environments. The powder-coated steel body ensures long-term durability and a clean finish suitable for visible installations.
Installer Tip: When fitting multiple RCBOs, leave sufficient neutral tail length to prevent strain on terminals during future maintenance — a key point under BS 7671 Regulation 526.6.
- 14 usable ways – ideal for larger distribution layouts
- Raised DIN rail for improved wiring space and cable management
- Supplied with neutral and earth terminal bars
- Knockout entries: 25mm & 32mm (top/bottom), 40mm (sides/back)
- Raised keyholes for accurate wall mounting
- Steel construction with white polyester powder-coated finish
- Compatible with all standard 18mm MCBs and RCBOs
| Part Code | Description | Dimensions (W × H × D mm) |
|---|---|---|
| WME10 | 10 Way IP40 Metal Enclosure | 232 × 240 × 112 |
| WME12 | 12 Way IP40 Metal Enclosure | 304 × 240 × 112 |
| WME14 | 14 Way IP40 Metal Enclosure | 304 × 240 × 112 |
| WME16 | 16 Way IP40 Metal Enclosure | 376 × 240 × 112 |
| WME18 | 18 Way IP40 Metal Enclosure | 376 × 240 × 112 |
| WME22 | 22 Way IP40 Metal Enclosure | 448 × 240 × 112 |
The WME14 offers flexibility for multi-circuit layouts while maintaining the clean, accessible wiring space expected under BS 7671 Amendment 2. Its modular design ensures compatibility with all standard protective devices and accessories in the WME Series.
Is the WME14 supplied with devices or wiring?
No, it’s supplied empty for the installer to populate with preferred devices.
Where can this enclosure be installed?
It’s suitable for dry, indoor locations where IP40-rated protection is acceptable — not for outdoor use.
Does it include busbars?
Busbars must be ordered separately depending on configuration and load requirements.
Can it be used in commercial settings?
Yes. The enclosure is robust enough for light commercial use where the environment is dry and enclosed.
Is it compliant with the 18th Edition wiring regulations?
Yes. The WME14 meets enclosure standards under BS EN 62208 and is compliant with BS 7671 Amendment 2 when correctly installed.
- Material: Steel, white polyester powder coated
- Ingress Protection: IP40 (indoor use only)
- DIN Rail: Raised 18mm rail
- Knockouts: 25mm & 32mm (top/bottom), 40mm (sides/back)
- Terminals: Neutral and earth bars supplied
- Mounting: Raised keyholes for secure wall fixing
- Dimensions: 304 × 240 × 112 mm
- Compliance: BS EN 62208, BS 7671 (18th Edition)
Ensure the enclosure is fixed securely and level using the raised keyhole mounts provided. All cable entries must be grommeted or fitted with glands to preserve insulation and maintain compliance with BS 7671 Regulation 416.2.3. Keep internal wiring routed neatly to maintain airflow and visibility of terminations.
- Mount on a solid wall using appropriate fixings
- Check knockout edges for sharp burrs before cable installation
- Maintain spacing between neutral and earth conductors
- Install in dry, ventilated indoor locations only
- Label outgoing circuits for clear identification
