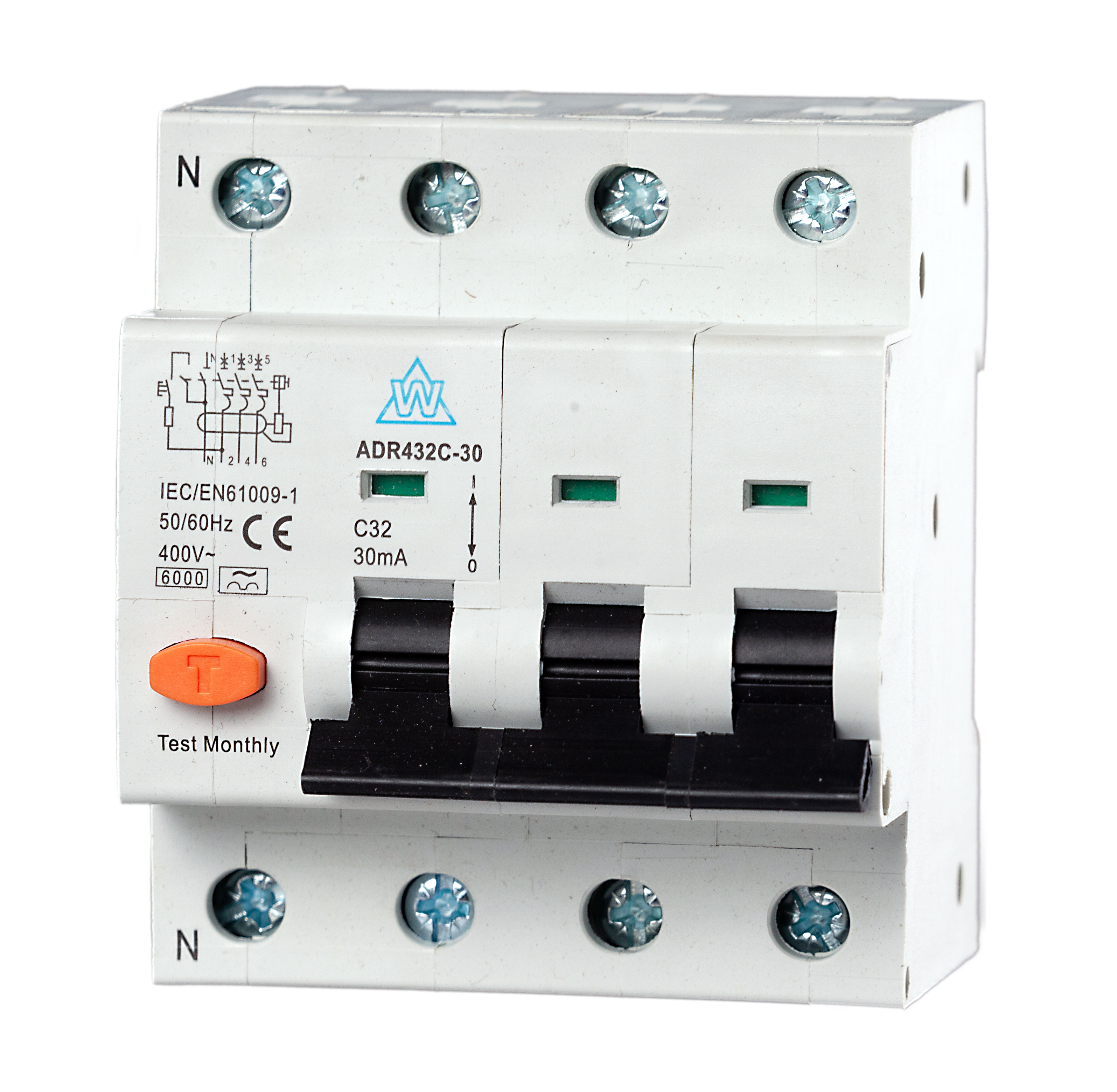

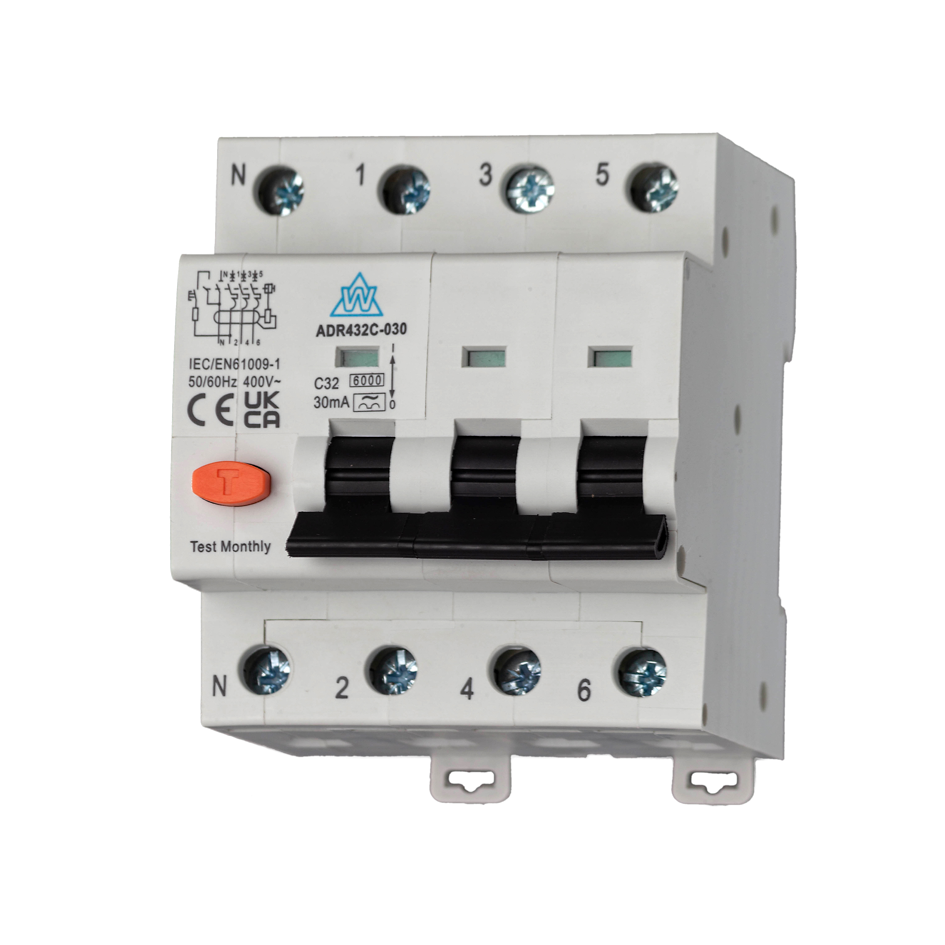

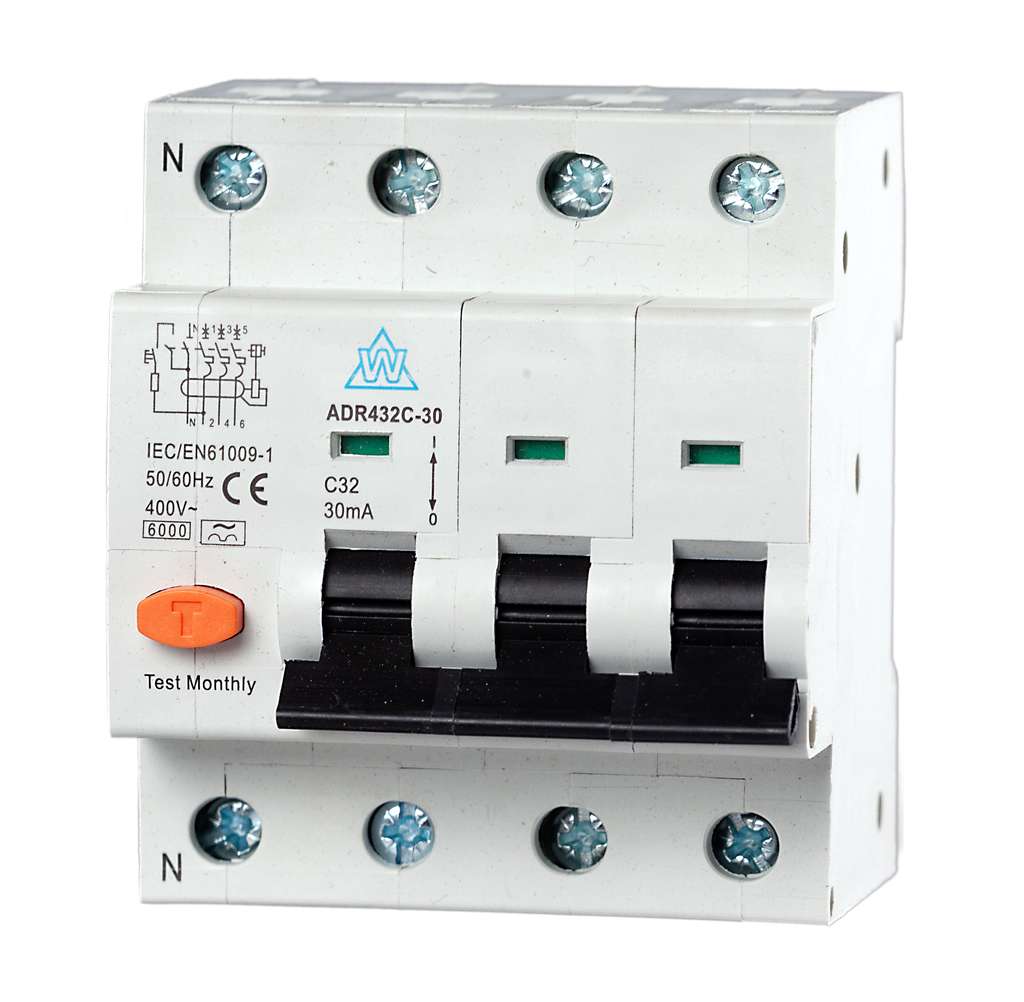

High Immunity Type A 4 Pole RCBO – 32A (ADR432C-30)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £80+
Secure Payments With
ADR432C-30 is a 32A high immunity Type A 4 pole RCBO designed for three-phase circuits where reliable overload, short-circuit, and residual current protection are required. With 30mA residual current protection, 6mA DC detection, and a 10kA breaking capacity, it is well suited to EV charger installations, heat pump systems, and...
ADR432C-30 is a 32A high immunity Type A 4 pole RCBO designed for three-phase circuits where reliable overload, short-circuit, and residual current protection are required. With 30mA residual current protection, 6mA DC detection, and a 10kA breaking capacity, it is well suited to EV charger installations, heat pump systems, and other inverter-driven applications.
Installer Tip: The twin-handle trip indicator helps show whether the fault was caused by overcurrent or residual current, making diagnosis and reset quicker on site.
Key Features
- 32A rated current – suited to dedicated three-phase circuits
- 4 pole design (3P+N) – full disconnection for three-phase applications
- Type A protection – detects AC and pulsating DC residual currents
- High immunity design – helps reduce nuisance tripping
- 6mA DC detection – suitable for EV and inverter-led applications
- Twin-handle trip indication – supports faster fault finding
- 10kA breaking capacity – robust fault protection
- 400V AC – designed for three-phase systems
Compare High Immunity RCBO Variants
| Model | Rated Current | Poles | Type | Immunity | Breaking Capacity |
|---|---|---|---|---|---|
| ADR432C-30 (This Product) | 32A | 4 Pole (3P+N) | Type A | High Immunity | 10kA |
| ADR440C | 40A | 4 Pole (3P+N) | Type A | High Immunity | 10kA |
What makes this RCBO high immunity?
ADR432C-30 is designed to help resist nuisance tripping caused by transient disturbances, making it useful on EV, renewable, and inverter-driven circuits.
Is ADR432C-30 suitable for EV charger circuits?
Yes. With 6mA DC detection and 4 pole disconnection, it is suited to EV installations where this protection format is required.
What’s the difference between ADR432C-30 and ADR440C?
ADR432C-30 is rated at 32A, while the ADR440C is the higher-rated 40A version in the same product family.
Does this RCBO come pre-wired?
No. This is a standalone 4 pole RCBO and must be installed into a compatible board by a qualified electrician.
- Product Code: ADR432C-30
- Poles: 4 Pole (3P+N)
- Rated Current: 32A
- Residual Current Protection: 30mA
- DC Detection: 6mA
- RCD Type: Type A
- Immunity Class: High Immunity
- Breaking Capacity: 10kA
- Voltage: 400V AC
Install ADR432C-30 in a compatible 4 pole DIN rail distribution board in accordance with BS 7671 and the manufacturer’s instructions. It is intended for applications requiring high-integrity three-phase RCBO protection with 6mA DC detection.
- Confirm the 32A rating is suitable for the connected circuit
- Follow manufacturer torque settings for all terminals
- Ensure correct phase and neutral connections before energising
- Test residual current and protective operation during commissioning
- Only install by a qualified electrician
