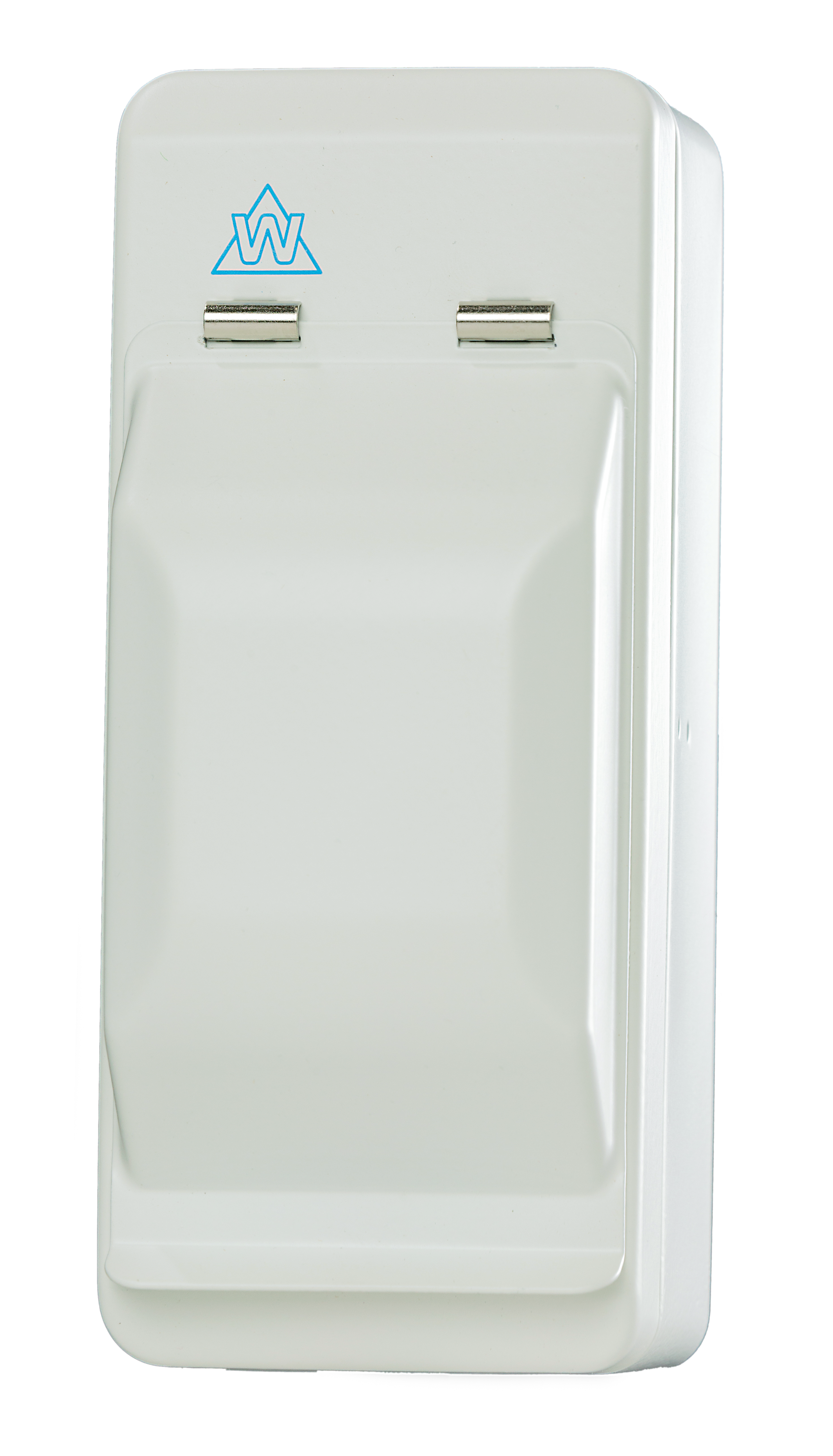

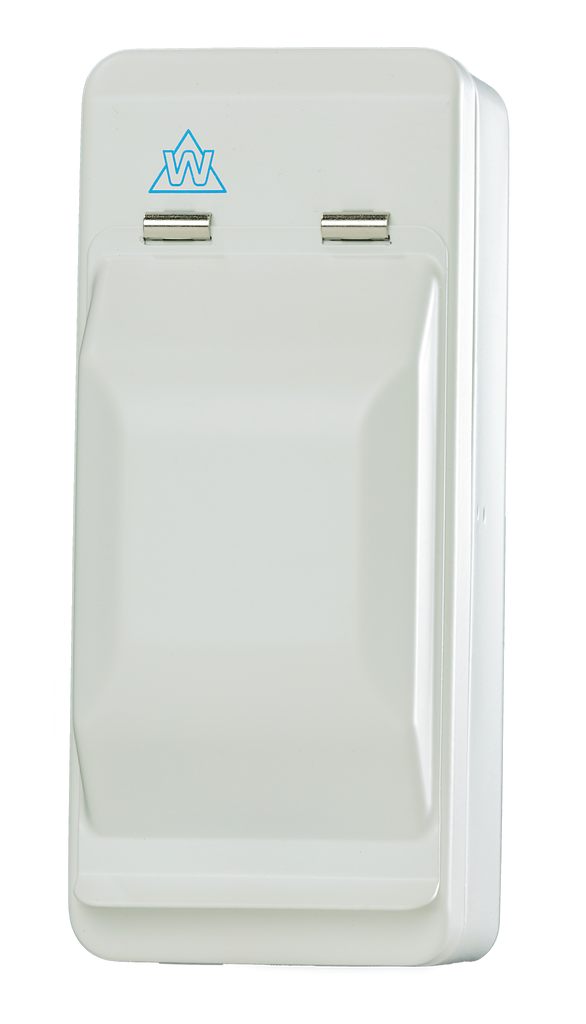

The WME2L/25 is a 2 way mini metal enclosure with lid, designed for compact circuit protection setups such as surge devices, RCBOs, or rotary isolators. Built from robust powder-coated steel, it offers a professional finish and dependable protection for small domestic or commercial add-ons. Installer Tip: The WME2L/25 is ideal...
The WME2L/25 is a 2 way mini metal enclosure with lid, designed for compact circuit protection setups such as surge devices, RCBOs, or rotary isolators. Built from robust powder-coated steel, it offers a professional finish and dependable protection for small domestic or commercial add-ons.
Installer Tip: The WME2L/25 is ideal where space is tight - for example, retrofitting a Type A RCBO or small SPD upstream of an EV charger. Wall mount it directly above an isolator or alongside an existing consumer unit for a clean, compliant install.
- 2 module capacity – perfect for compact RCBO or SPD setups

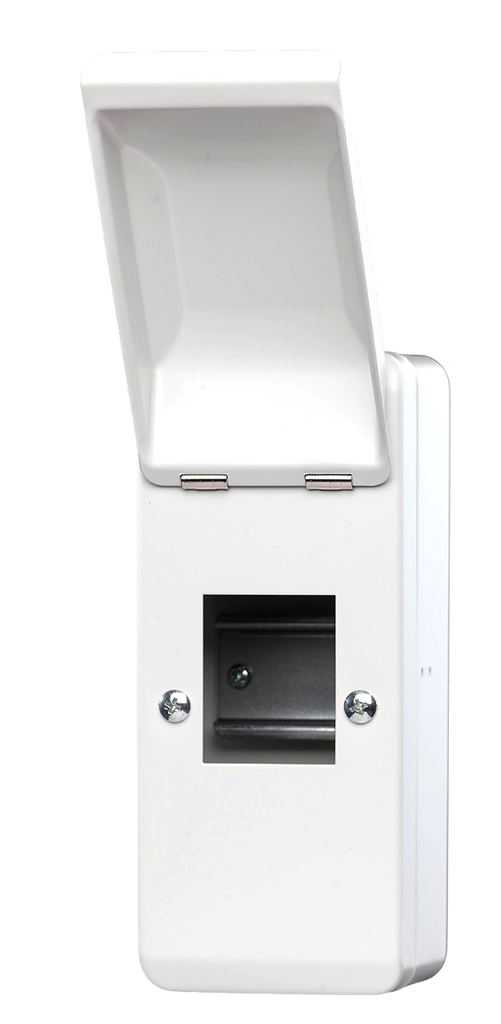

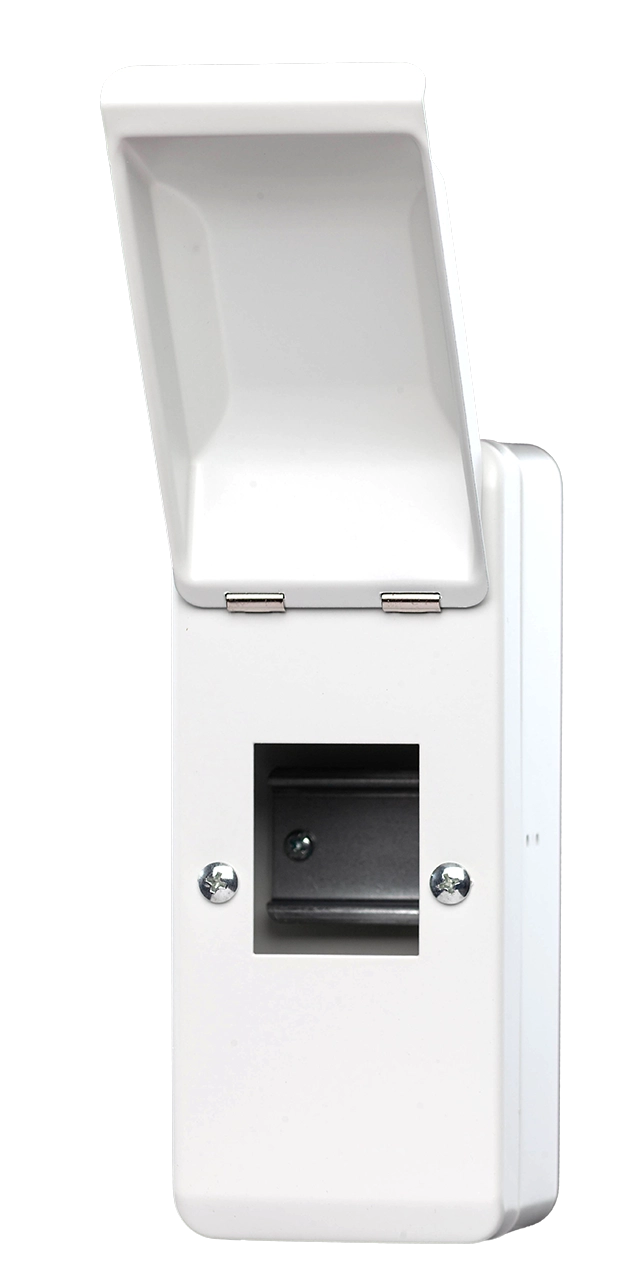

- Powder-coated metal body with hinged drop-down lid
- 25mm knockouts on top and bottom for flexible cable entry
- Pre-installed DIN rail and earth bar – ready to fit out of the box
- Surface mount with raised keyhole fixings for quick installation
- Complies with BS EN 61439-3 and 18th Edition Amendment 2 requirements

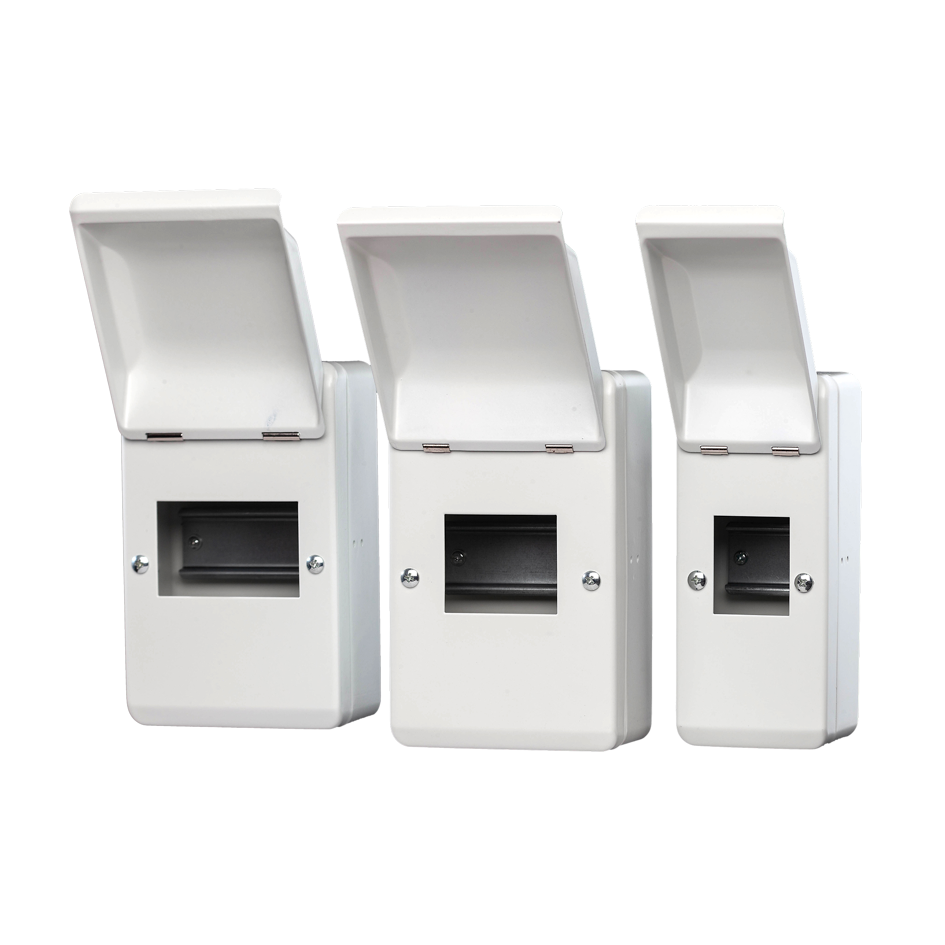

| Model | Ways | Knockouts | Dimensions (WxHxD) | Common Use |
|---|---|---|---|---|
| WME2L/25 | 2 | 25mm top & bottom | 110 × 175 × 90 mm | RCBO or SPD housing |
| WME3L/32 | 3 | 32mm | 150 × 175 × 90 mm | Small 3-module boards |

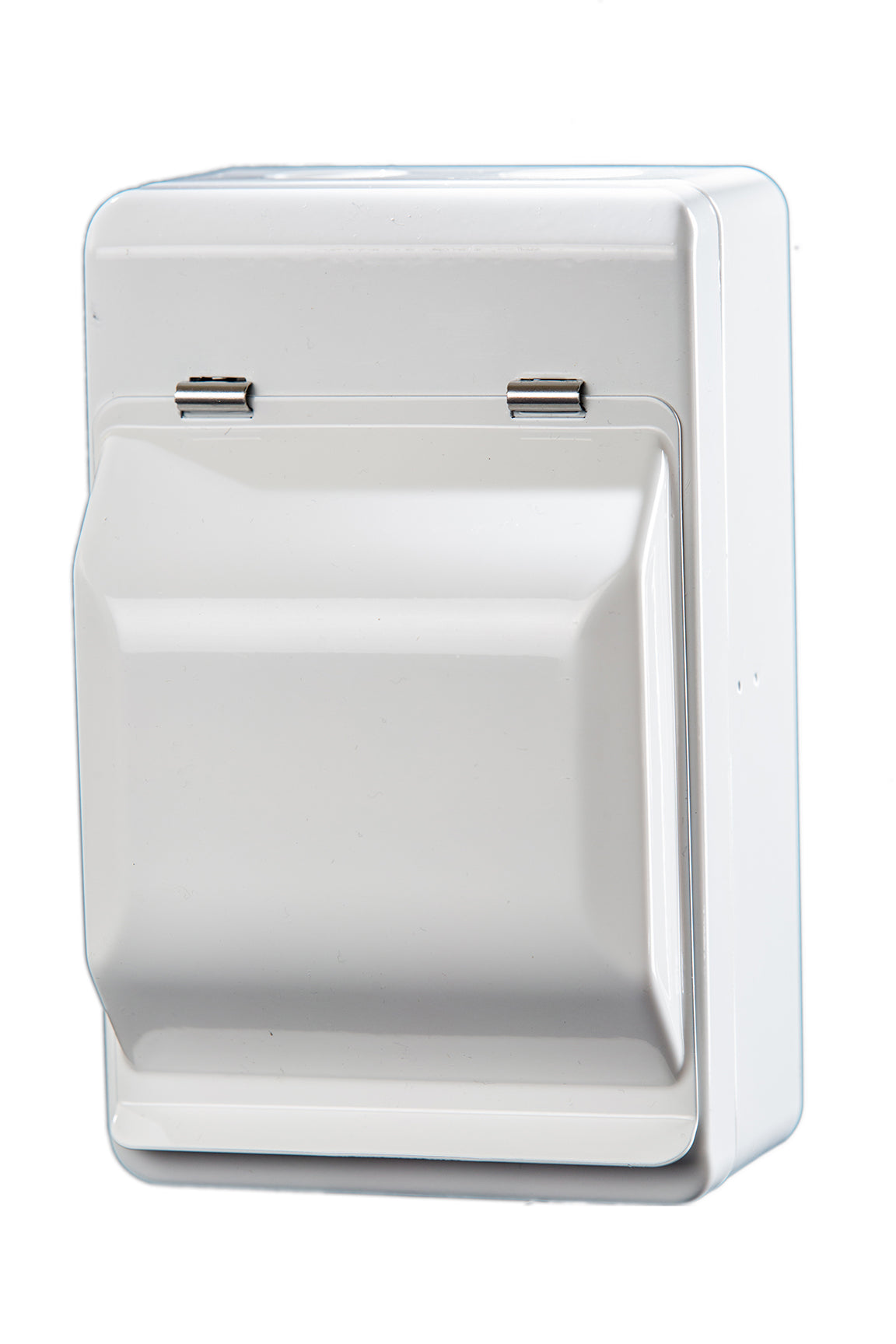

| WME4L/32 | 4 | 32mm | 190 × 175 × 90 mm | MCB + SPD or RCBO combo |
| WME5L/32 | 5 | 32mm | 230 × 175 × 90 mm | Multi-device setups |
All models share the same rugged metal construction and DIN rail compatibility, ensuring a consistent finish across your board builds and upgrades.
What’s the main use for the WME2L/25?
This compact 2-way metal enclosure is ideal for housing a single Type A RCBO or surge protection device in small domestic circuits, EV retrofits, or sub-distribution points.
Can it be used for EV charger protection?
Yes. It’s often used to mount an upstream RCBO or SPD for EV charge points, providing a neat and compliant way to protect external circuits.
Is the WME2L/25 suitable for outdoor use?
No — this enclosure is IP40 rated and designed for indoor use only. For outdoor or garage installs, use our IP65 Plastic Enclosures instead.
Are larger versions available?
Yes. For more module space, view the 3-way, 4-way, or 5-way options in the same range.
- Model: WME2L/25
- Enclosure Type: Metal, surface-mount with hinged lid
- Module Capacity: 2 ways
- Knockouts: 25mm circular knockouts (top & bottom)
- Fixings: Rear keyhole mounts for easy installation
- Material: Powder-coated steel (grey finish)
- DIN Rail: 18mm standard rail (included)
- Earth Terminal Bar: Included
- IP Rating: IP40 (indoor use)
- Voltage Rating: 230V / 400V AC
- Dimensions (WxHxD): 110mm × 175mm × 90mm
- Torque: 2.0 Nm (earth terminal bar)
- Compliance: BS EN 61439-3, 18th Edition (Amendment 2)
Supplied with DIN rail and earth terminal bar pre-installed to save setup time. Always confirm final connections and torque settings meet BS 7671 requirements.
- Mount via rear keyhole slots for secure wall fixing
- Use 25mm knockouts for cable entry (top or bottom)
- Ensure internal terminations meet BS 7671 torque specs
- Fit only by a qualified electrician
- Recommended for indoor use only – IP40 rating
