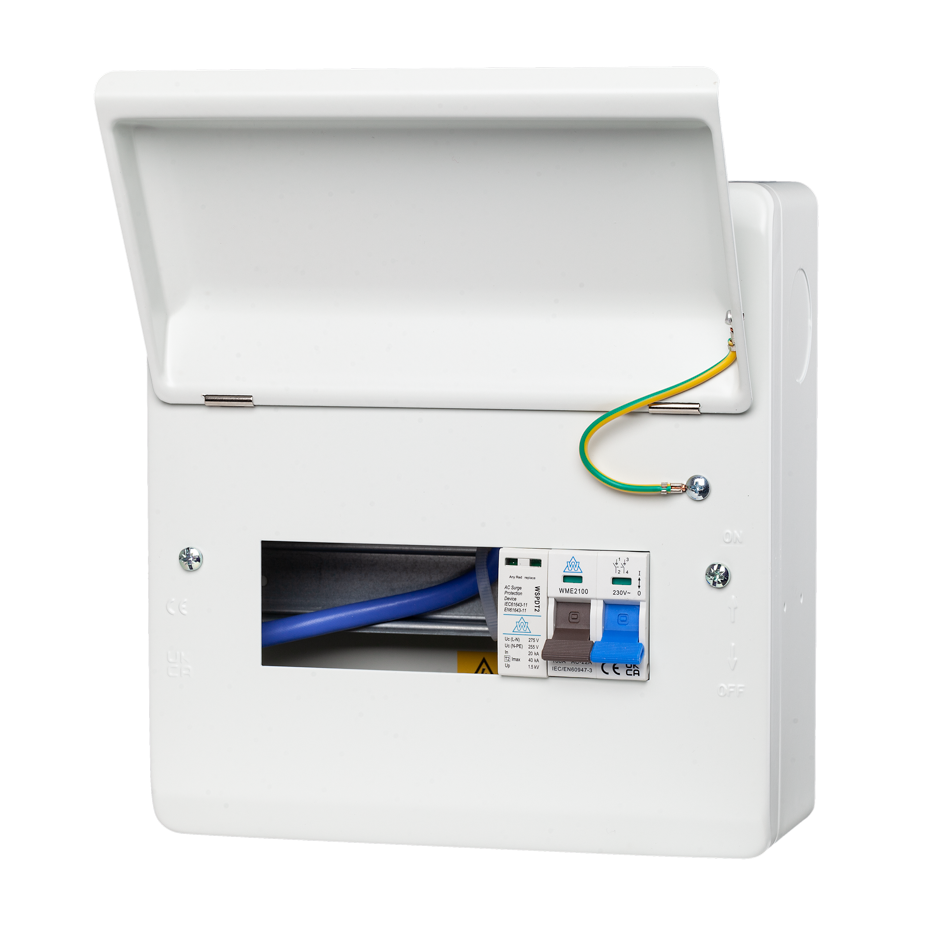

The WME08/SP is an 8 module surge protected metal enclosure fitted with a 100A main switch and integrated Type 2 Surge Protection Device (SPD). Designed for EV-ready installs, residential upgrades, and light commercial distribution, it combines safe circuit isolation and transient surge defence in a compact steel housing.
With 5 usable ways, the WME08/SP is ideal for single EV charger supplies, small sub-boards, or dedicated renewable circuits. Each unit is built from 1.2mm non-combustible steel, powder-coated in white, and designed for installers — including raised DIN rail, multiple knockouts, and generous wiring space.
Installer Tip: The 8 module version gives more flexibility than the 6 way while keeping size compact. Choose this if you need extra circuits for EV supply plus small domestic loads.
Key Features
- 100A main switch isolator – full isolation for safe maintenance
- Factory-fitted Type 2 SPD – Amendment 2 compliant surge protection
- 8 module enclosure – 5 usable outgoing ways
- 1.2mm steel body, white powder-coated finish
- Neutral & earth bars both sides, fully shrouded terminals
- Removable gland plate for simple cable entry
- Complies with BS EN 61439-3 & BS 7671:2018 A2
Compare WME Surge Protected Enclosure Variants
| Model | Modules | Usable Ways | Protection |
|---|---|---|---|
| WME06/SP | 6 | 3 | 100A Main Switch + SPD |
| WME08/SP (This Product) | 8 | 5 | 100A Main Switch + SPD |
| WME10/SP | 10 | 7 | 100A Main Switch + SPD |
| WME12/SP | 12 | 9 | 100A Main Switch + SPD |
| WME14/SP | 14 | 11 | 100A Main Switch + SPD |
| WME16/SP | 16 | 13 | 100A Main Switch + SPD |
| WME18/SP | 18 | 15 | 100A Main Switch + SPD |
| WME22/SP | 22 | 19 | 100A Main Switch + SPD |
| WME28/SP | 28 | 24 | 100A Main Switch + SPD |
| WME36/SP | 36 | 32 | 100A Main Switch + SPD |
