WME 14 Module Surge Protected Metal Enclosure – 100A Main Switch + SPD (WME14/SP)
£56.40
ex VAT
£67.68 inc VAT
SKU: WME14/SP
Forward orders accepted — ask us for the current lead time
Ask us about availability
Currently unavailable

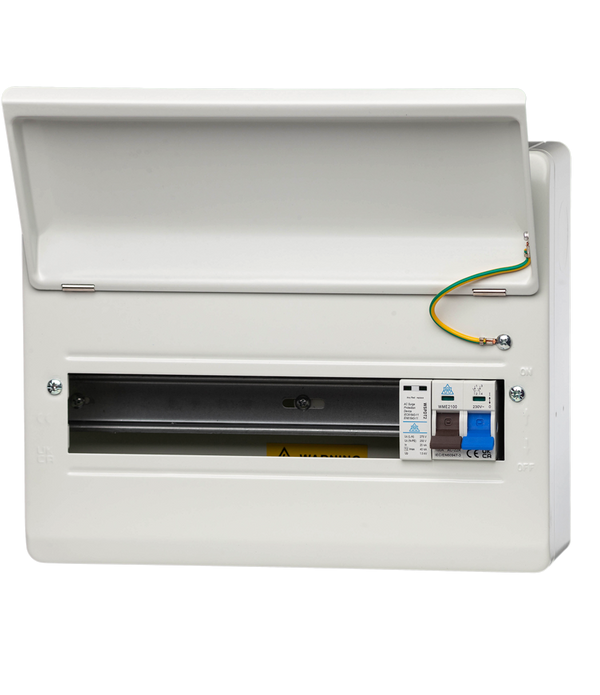

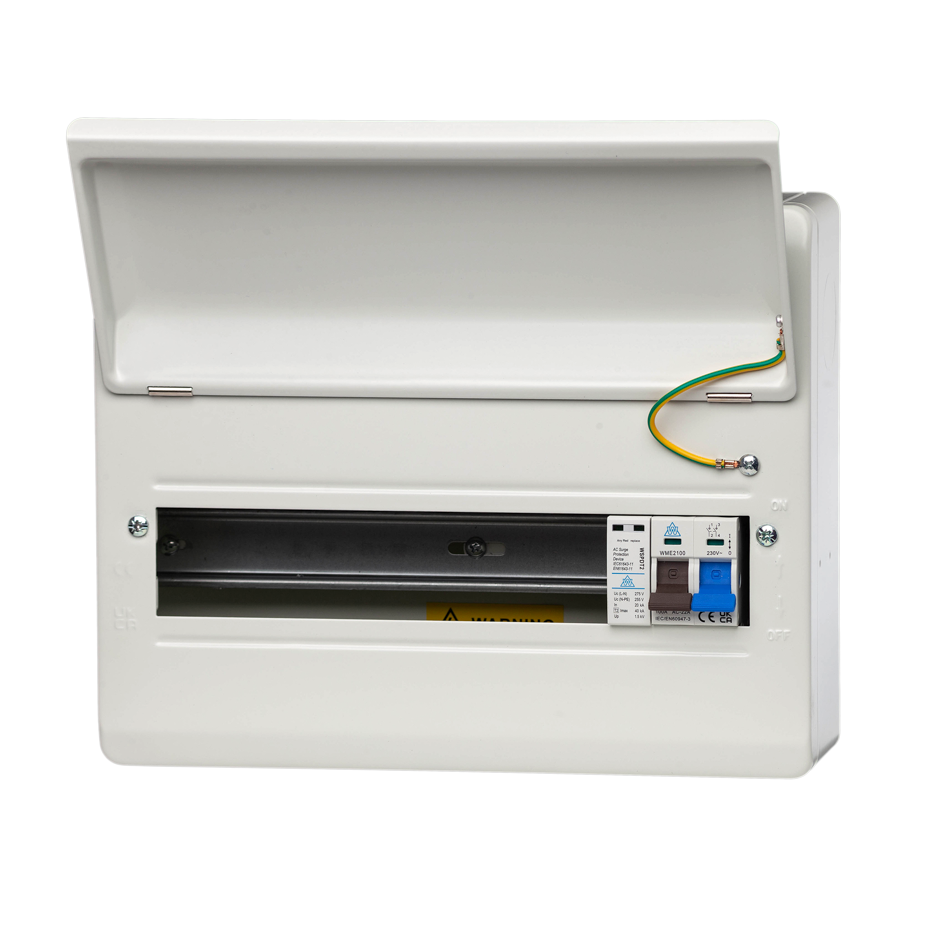

The WME14/SP is a 14 module surge protected metal enclosure fitted with a 100A main switch and an integrated Type 2 Surge Protection Device (SPD). Built for EV charger installs, domestic boards, and renewable systems, it provides safe circuit isolation and compliant surge protection in a robust steel housing. With...
Read full descriptionAccepted payment methods
Description
The WME14/SP is a 14 module surge protected metal enclosure fitted with a 100A main switch and an integrated Type 2 Surge Protection Device (SPD). Built for EV charger installs, domestic boards, and renewable systems, it provides safe circuit isolation and compliant surge protection in a robust steel housing.
With 11 usable ways, the WME14/SP is suited for larger EV-ready supplies, multi-circuit domestic installs, and renewable connections such as PV inverters or hybrid heat pump systems. Manufactured from 1.2mm non-combustible steel, it features a powder-coated white finish, raised DIN rail, multiple knockouts, and a generous wiring space for easy installation.
Installer Tip: The 14 module size is a great balance when you need more outgoing ways than a 12 module but don’t want to step up to a much larger board. Ideal for EV installs with multiple circuits.
Key Features
- 100A main switch isolator – safe and compliant isolation
- Type 2 SPD included – factory fitted for Amendment 2 compliance
- 14 module enclosure – 11 usable outgoing ways
- 1.2mm steel body, white powder-coated finish
- Neutral & earth bars on both sides, shrouded terminals
- Removable gland plate for flexible cable entry
- Complies with BS EN 61439-3 & BS 7671:2018 A2
Compare WME Surge Protected Enclosure Variants
| Model | Modules | Usable Ways | Protection |
|---|---|---|---|
| WME12/SP | 12 | 9 | 100A Main Switch + SPD |
| WME14/SP (This Product) | 14 | 11 | 100A Main Switch + SPD |
| WME16/SP | 16 | 13 | 100A Main Switch + SPD |
| WME18/SP | 18 | 15 | 100A Main Switch + SPD |
Technical specs
- Enclosure: 14 module steel housing, IP40
- Main Switch: 100A isolator
- Surge Protection: Type 2 SPD, pre-fitted
- Usable Ways: 11
- Material: 1.2mm non-combustible steel, powder-coated white
- Operating Voltage: 230V AC, 50Hz
- Standards: BS EN 61439-3, BS 7671:2018 A2
Installation notes
This unit is supplied pre-assembled with main switch and SPD fitted. Final wiring and certification must be carried out by a qualified electrician.
- Supplied fully built – no additional internal wiring required
- Knockouts and gland plate provided for flexible entry
- Ensure 14 module (11 usable ways) suits your circuit requirements
- Indoor installation only (IP40 steel housing)
FAQs
When should I choose the 14 module board?
Use the 14 module version when you need more ways than a 12 module allows, but want to avoid the footprint of larger enclosures. Perfect for EV installs with multiple outgoing circuits.
Does this unit include surge protection?
Yes. Each enclosure is factory fitted with a Type 2 SPD to protect against transient overvoltages and meet Amendment 2 compliance.
Is it suitable for outdoor installs?
No, this is an IP40 indoor steel board. For outdoor-ready solutions, view our IP65 EV enclosures.
What’s the lead time?
Built to order in 3 working days. After dispatch, free next-day UK mainland delivery applies on orders over £30.
