Metal Fuse Switch 100A with Fuseholder (WFMS100)
£35.35
ex VAT
£42.42 inc VAT
SKU: WFMS100
Currently unavailable
The WFMS100 is a metal switch-fuse unit with a 100A main switch for installations requiring a fused supply to downstream equipment. Its IP40 enclosure has a polyester powder coating and top and bottom cable-entry knockouts.This is the base version with a 22 × 58mm fuse holder. For the version explicitly...
Read full descriptionAccepted payment methods
Description
The WFMS100 is a metal switch-fuse unit with a 100A main switch for installations requiring a fused supply to downstream equipment. Its IP40 enclosure has a polyester powder coating and top and bottom cable-entry knockouts.
This is the base version with a 22 × 58mm fuse holder. For the version explicitly supplied with 63A, 80A and 100A fuse links, see WFMS100/3F.
- 100A twin-pole main switch
- 22 × 58mm cartridge fuse holder
- Dimensions: 130 × 238 × 87mm (W × H × D)
- IP40 metal enclosure
- 25mm and 32mm knockouts on the top and bottom faces
The 100A figure is the main-switch rating. The permitted circuit load also depends on the selected fuse, fuse holder and installation design.
Compare the WFMS range
| Model | Main equipment | Fuse pack / selection | Dimensions W × H × D |
|---|---|---|---|
| WFMS100 | 100A twin-pole main switch; 22 × 58mm fuse holder | Base unit; ask about the required fuse link | 130 × 238 × 87mm |
| WFMS100/3F | 100A twin-pole main switch; 22 × 58mm fuse holder | 63A, 80A and 100A fuse links supplied | 130 × 238 × 87mm |
| WFMS100/3FSP | 100A main switch; fuse holder; SPD | 63A, 80A and 100A fuse links supplied | 160 × 240 × 112mm |
| WFMS/3P | 125A four-pole main switch; three-pole fuse holder | Three-phase version; confirm fuse links required | 240 × 380 × 90mm |
| WFMSRT00-3F | Time-delayed RCD; fuse holder | 63A, 80A and 100A fuse links supplied; confirm RCD specification | 130 × 238 × 87mm |
The three supplied fuse ratings are selection options, not a statement that three fuse positions are fitted. Match the chosen fuse to the holder, cable and circuit design.

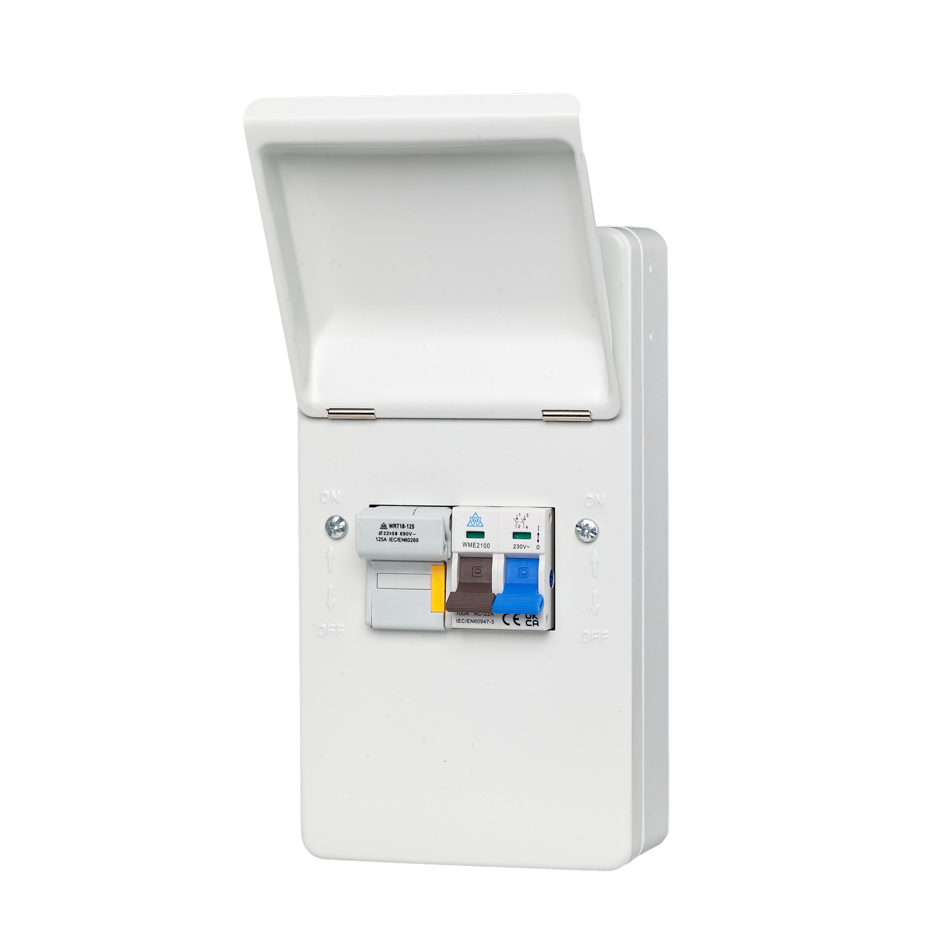

Images may show another configuration in the range. Select by the product code and listed contents.
Technical specs
| Product code | WFMS100 |
|---|---|
| Main switch | 100A, twin pole |
| Fuse holder | 22 × 58mm cartridge format |
| Fuse links supplied | Confirm the required fuse link when ordering |
| Dimensions (W × H × D) | 130 × 238 × 87mm |
| Enclosure | Metal with polyester powder coating |
| Ingress protection | IP40 |
| Cable entries | 25mm and 32mm circular knockouts on the top and bottom faces |
Installation notes
Installation and commissioning should be carried out by a qualified electrician using the instructions for the supplied assembly and fitted devices. Select fuse links for the circuit load, cable protection, holder rating and prospective fault current. Check terminal torque and enclosure earthing against the supplied instructions.
Use the designated isolation device before accessing the fuse holder. The fuse holder itself must not be used as a switch disconnector.
FAQs
What does the 100A rating refer to?
It is the main-switch rating. The fuse, fuse holder, cable and circuit design determine the permitted protected load.
Which fuse links are included?
The base listing specifies the main switch and fuse holder. For a pack with 63A, 80A and 100A links, choose WFMS100/3F; otherwise confirm your fuse requirement when ordering.
Which version includes surge protection?
The WFMS100/3FSP is listed with an SPD and the three fuse-link ratings. Select the required complete unit rather than assuming a retrofit kit is included.
Is this the three-phase version?
For the version specifically listed with a four-pole main switch and three-pole fuse holder, see WFMS/3P. A pack of three fuse links does not establish three-phase suitability.
Can it be installed outdoors?
The enclosure is rated IP40. Select an enclosure and complete assembly suitable for the installation environment; this is not a weatherproof outdoor enclosure.
