EV Consumer Units for EV Charger Installations
EV consumer units provide a dedicated, regulation-compliant supply for electric vehicle chargers. Under BS 7671 (18th Edition Amendment 2), EV circuits must include surge protection, appropriate RCD/RCBO protection, and – where required – PEN fault disconnection. Our EV charging consumer units are pre-configured to meet these requirements.
Quick answer: An EV charger requires its own dedicated consumer unit with SPD protection and the correct RCD/RCBO type. Standard house boards are not compliant for new EV installations.
Read more
Each EV kit includes the core protection required for safe charging:
- Type 2 Surge Protection Device (SPD) – mandatory for EV circuits
- Type A or Type B RCBO – depending on charger DC leakage requirements
- PEN fault detection (PME protection) where earthing conditions require disconnection
- IP65 outdoor options for weather-exposed installs
Whether you are installing a domestic wallbox, a garage charger, or a commercial multi-bay system, these EV distribution units are built to simplify compliance and reduce time on site.
See our delivery information or returns policy for full details.
3 Way EV RCBO Enclosure – Type A High Immunity 32A Type B (WMEV332B)
£27.50
The WMEV332B is a compact 3-way EV RCBO enclosure designed to provide both earth leakage and overload protection for single-phase EV charging circuits. Fitted with a 32A Type A High Immunity RCBO (Type B curve), it offers full compliance with BS 7671:2018 Amendment 2 and...

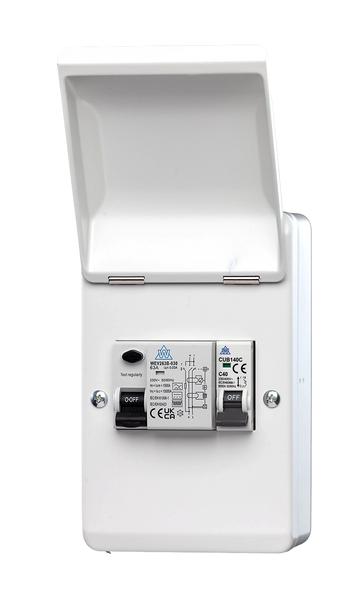

WEV Electric Vehicle Kit - 63A RCD plus 40A C MCB
£132.00
The WEVKIT63 is a pre-built EV protection kit featuring a 63A B-Type RCD and a 40A Type C MCB – designed to meet the latest EV charger requirements, including protection against smooth DC earth leakage. It's a ready-to-fit solution for installers working with Tesla chargers...
A-Type RCBO EV Kit – 2 Way 40 A C Curve (WMEV240C)
£28.34
The WMEV240C is a 2-way A-Type RCBO EV Kit fitted with a 40 A C-curve high-immunity Type A RCBO. It provides combined overload, short-circuit and earth-leakage protection (30 mA AC + 6 mA DC) and meets the latest 18th Edition Amendment 2 requirements for EV...
EV Connection Unit – 100A Main Switch + Surge Protection + 40A MCB (WEVCU40BSP)
£34.19
The WEVCU40BSP is a pre-wired EV connection unit designed to provide local isolation, surge protection, and overcurrent protection for EV charge point circuits drawing up to 40A. Built into a compact 5-way IP40 metal enclosure, it includes a 100A double-pole main switch, Type 2 SPD,...
4 Way Metal EV Protection Unit – 32A C Curve A-Type RCBO + SPD (WMRC32CSP)
£31.90
The WMRC32CSP is a 4 Way Metal EV Protection Unit equipped with a 32 A C-Curve A-Type RCBO and Type 2 SPD inside a robust steel housing. Designed for commercial and higher inrush EV charger applications, it delivers overload, earth-leakage, and surge protection in one...
What Is an EV Consumer Unit?
An EV consumer unit (sometimes called an EV charging board or EV charger fuse box) is a dedicated distribution board designed specifically for electric vehicle charging circuits. It separates the EV load from the main house installation and provides the additional protection required under modern wiring regulations.
Why a Dedicated EV Charging Consumer Unit Is Required
- EV chargers draw sustained high loads
- Inverter-based charging can produce DC leakage
- Surge protection is required under BS 7671
- PME earthing may require PEN fault detection
Installing a standard split-load board will not meet current EV compliance requirements.
Key Protection Components Inside an EV Kit
- Surge Protection (SPD) – protects charger electronics from voltage spikes
- RCBO protection – overload and earth leakage in one device
- Type B RCD where required – for DC-sensitive chargers
- PEN fault detection – essential for PME supplies without earth rods
Domestic vs Commercial EV Distribution Units
- Domestic installs – compact 2–4 way boards for single wallbox chargers
- Garage installs – IP-rated enclosures for outbuildings
- Commercial charging – higher-capacity boards for multi-bay systems
- Outdoor setups – IP65 weatherproof EV charging enclosures
EV Charger RCD Type Explained
Most EV chargers are compatible with Type A RCBOs. However, chargers without built-in DC monitoring require Type B RCD protection. Always check the manufacturer’s installation guide before selecting the device.
Compliance & Standards
All EV consumer units supplied by Power & Data UK comply with BS EN 61439-3 and are designed to meet the requirements of BS 7671 (18th Edition Amendment 2). Devices are UK stocked and backed by manufacturer warranty.
Related EV Protection Categories
Need help choosing the correct EV charging consumer unit? Contact our technical team for guidance before ordering.
