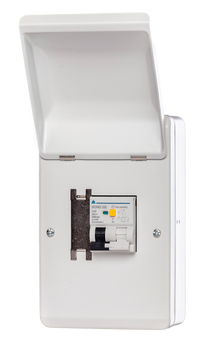

3 Way EV RCBO Enclosure – Type A High Immunity 32A Type C (WMEV332C)
£37.70
ex VAT
£45.24 inc VAT
SKU: WMEV332C
The WMEV332C is a compact 3-way EV RCBO enclosure engineered for earth leakage and overload protection on single-phase EV charging circuits. Supplied with a 32A Type A High Immunity RCBO (Type C curve), it provides dependable 30mA AC and 6mA DC leakage protection, ensuring compliance with BS 7671:2018 Amendment 2....
Read full descriptionAccepted payment methods
Description
The WMEV332C is a compact 3-way EV RCBO enclosure engineered for earth leakage and overload protection on single-phase EV charging circuits. Supplied with a 32A Type A High Immunity RCBO (Type C curve), it provides dependable 30mA AC and 6mA DC leakage protection, ensuring compliance with BS 7671:2018 Amendment 2.
This Type C version is designed for EV chargers with higher inrush currents — typically those using switched-mode power supplies or onboard transformers. Its compact metal body and EV-specific protection make it an excellent choice for residential and light commercial installs requiring 6mA DC detection and reliable disconnection performance.
Installer Tip: Type C curves are best suited for EV chargers with higher start-up or transformer inrush currents. Always verify the charger specification to avoid nuisance tripping.
- Supplied with 32A Type A High Immunity RCBO (C Curve)
- Detects AC, pulsating DC, and 6mA smooth DC leakage
- 3-module IP40 metal enclosure – compact and robust
- Dual overload and residual current protection
- PME-ready and compatible with surge protection devices
- Built to order – typically dispatched within 3 working days
| Part Code | Description | RCBO Rating | Trip Curve |
|---|---|---|---|
| WMEV332B | 3 Way EV RCBO Enclosure – Type A High Immunity 32A Type B | 32 A | B |
| WMEV332C | 3 Way EV RCBO Enclosure – Type A High Immunity 32A Type C | 32 A | C |
| WMEV340B | 3 Way EV RCBO Enclosure – Type A High Immunity 40A Type B | 40 A | B |
| WMEV340C | 3 Way EV RCBO Enclosure – Type A High Immunity 40A Type C | 40 A | C |
The WMEV332C provides reliable EV circuit protection where Type C performance is preferred. With full 6mA DC leakage sensing and robust overload protection, it’s designed to keep modern EV charging systems safe and 18th Edition compliant.
Technical specs
- Model: WMEV332C
- Modules: 3
- Current Rating: 32 A
- Trip Curve: C
- Type: A High Immunity RCBO
- Earth Leakage: 30 mA AC / 6 mA DC
- Protection: Overload & Residual Current
- Enclosure: IP40 metal body
- Application: Single-phase EV charger supply
- Compliance: BS EN 61009, BS EN 61439, BS 7671 (18th Edition)
Installation notes
Install only by a qualified electrician in accordance with BS 7671. This Type C variant is ideal for EV chargers with higher inrush currents or load transients. Always confirm the RCBO type and rating with the charger manufacturer before energising.
- Mount securely on a flat wall surface
- Ensure correct polarity and earth continuity
- Test RCBO operation with a calibrated tester before commissioning
- Use indoors in dry, ventilated environments (IP40 rated)
- Clearly label as EV circuit protection
FAQs
What’s the difference between Type B and Type C RCBO curves?
Type C RCBOs tolerate higher inrush currents before tripping, making them ideal for EV chargers with transformer or inverter-based designs.
Is this unit compatible with PME fault detection?
Yes. It can be used as part of a PME-compliant installation when paired with a PEN fault detection device.
Does it include surge protection?
No. Surge protection can be added separately at the supply board if required.
Is it pre-wired?
No. The RCBO is supplied fitted but un-wired, allowing the installer to configure the final connections.
Is this suitable for domestic EV chargers?
Yes. It’s ideal for 32 A single-phase chargers, particularly those with higher startup currents.
