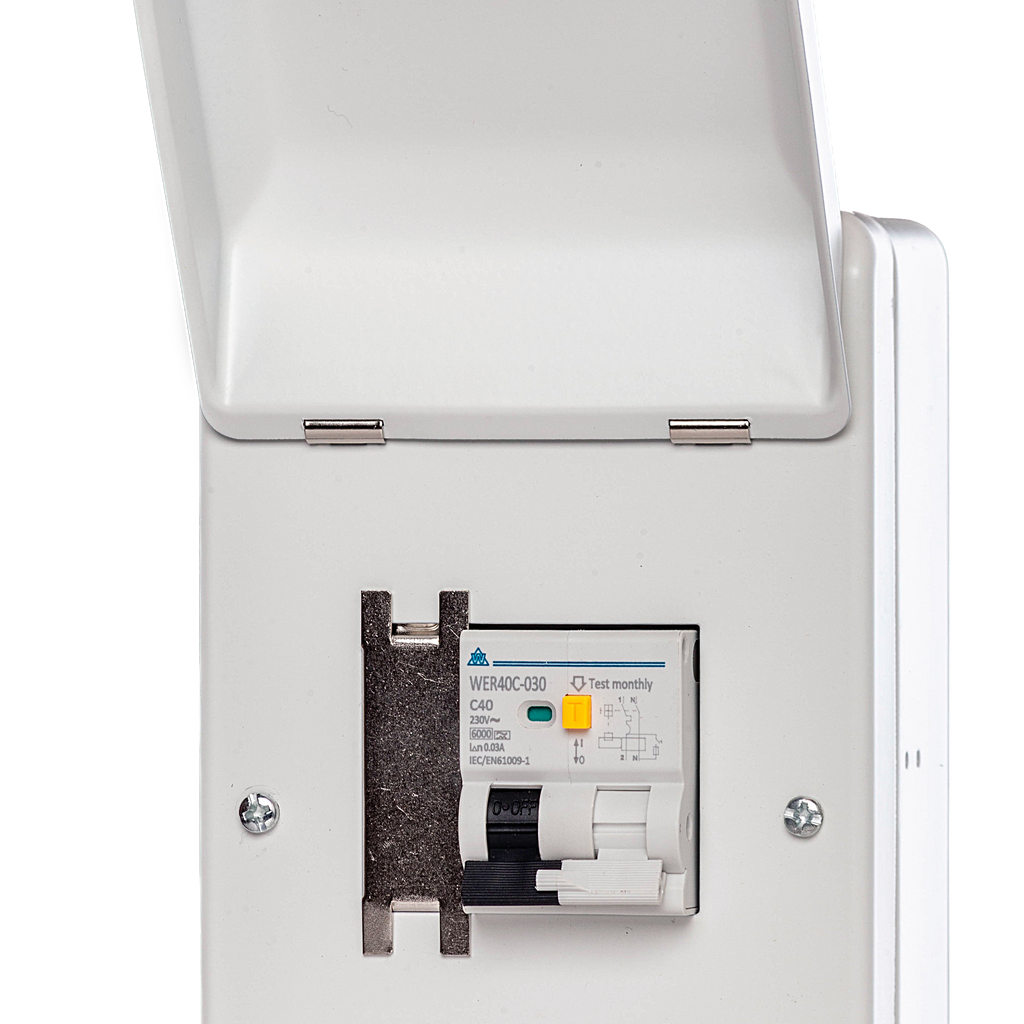

3 Way EV RCBO Enclosure – Type A High Immunity 40A Type B (WMEV340B)

£37.70 ex VAT £45.24 inc VAT

The WMEV340B is a robust 3-way EV RCBO enclosure providing earth-leakage and overload protection for higher-rated single-phase EV chargers. Supplied with a 40A Type A High Immunity RCBO (Type B curve), it delivers 30 mA AC and 6 mA DC protection in line with BS 7671:2018 Amendment 2. This model...

Read full description

Accepted payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Description

The WMEV340B is a robust 3-way EV RCBO enclosure providing earth-leakage and overload protection for higher-rated single-phase EV chargers. Supplied with a 40A Type A High Immunity RCBO (Type B curve), it delivers 30 mA AC and 6 mA DC protection in line with BS 7671:2018 Amendment 2.

This model is ideal for 9.6 kW EV chargers or heavier single-phase loads where full 6 mA DC detection is required. Its compact, IP40-rated metal body keeps installs neat and compliant while supporting PME and surge-protected configurations.

Installer Tip: For 40 A EV circuits, verify cable sizing and voltage-drop calculations per BS 7671 Section 525 to maintain efficiency and safety.

  • Supplied with 40 A Type A High Immunity RCBO (B curve)
  • Detects AC, pulsating DC and 6 mA smooth DC leakage
  • 3-module IP40 metal enclosure – compact and durable
  • Provides overload and residual current protection in one device
  • PME-ready and SPD-compatible for full EV compliance
  • Built to order – typically dispatched within 3 working days
Part Code Description RCBO Rating Trip Curve
WMEV332B 3 Way EV RCBO Enclosure – Type A High Immunity 32 A Type B 32 A B
WMEV332C 3 Way EV RCBO Enclosure – Type A High Immunity 32 A Type C 32 A C
WMEV340B 3 Way EV RCBO Enclosure – Type A High Immunity 40 A Type B 40 A B
WMEV340C 3 Way EV RCBO Enclosure – Type A High Immunity 40 A Type C 40 A C

The WMEV340B delivers dependable protection for high-demand single-phase EV circuits, combining Type A RCBO technology with a compact metal enclosure for fast, compliant installation under the 18th Edition requirements.

Technical specs
  • Model: WMEV340B
  • Modules: 3
  • Current Rating: 40 A
  • Trip Curve: B
  • Type: A High Immunity RCBO
  • Earth Leakage: 30 mA AC / 6 mA DC
  • Protection: Overload & Residual Current
  • Enclosure: IP40 metal body
  • Application: Single-phase EV charging supply
  • Compliance: BS EN 61009, BS EN 61439, BS 7671 (18th Edition)
Installation notes

This unit must be installed by a qualified electrician. It is suited to single-phase EV chargers drawing up to 40 A and requiring 6 mA DC leakage protection. Confirm RCBO curve and rating with the charger manufacturer before energising.

  • Securely mount on a flat surface using appropriate fixings
  • Maintain correct polarity and earth continuity
  • Torque terminals to manufacturer specification
  • Install in dry, ventilated indoor locations (IP40)
  • Label clearly as EV supply point
FAQs

Is the 40 A Type B RCBO suitable for domestic EV chargers?

Yes. It’s ideal for 9 kW–9.6 kW single-phase chargers that require 6 mA DC detection and standard Type B trip characteristics.

What’s the benefit of a High Immunity Type A RCBO?

It avoids nuisance tripping caused by harmonics or charger inverter noise while still detecting both AC and DC faults.

Does this unit include surge protection?

No. It provides RCBO protection only; SPD can be added at the supply board if required.

Is it PME compliant?

Yes — when used with an appropriate PEN fault detection device.

Is it pre-wired?

No. It’s supplied un-wired for flexible termination on site.
