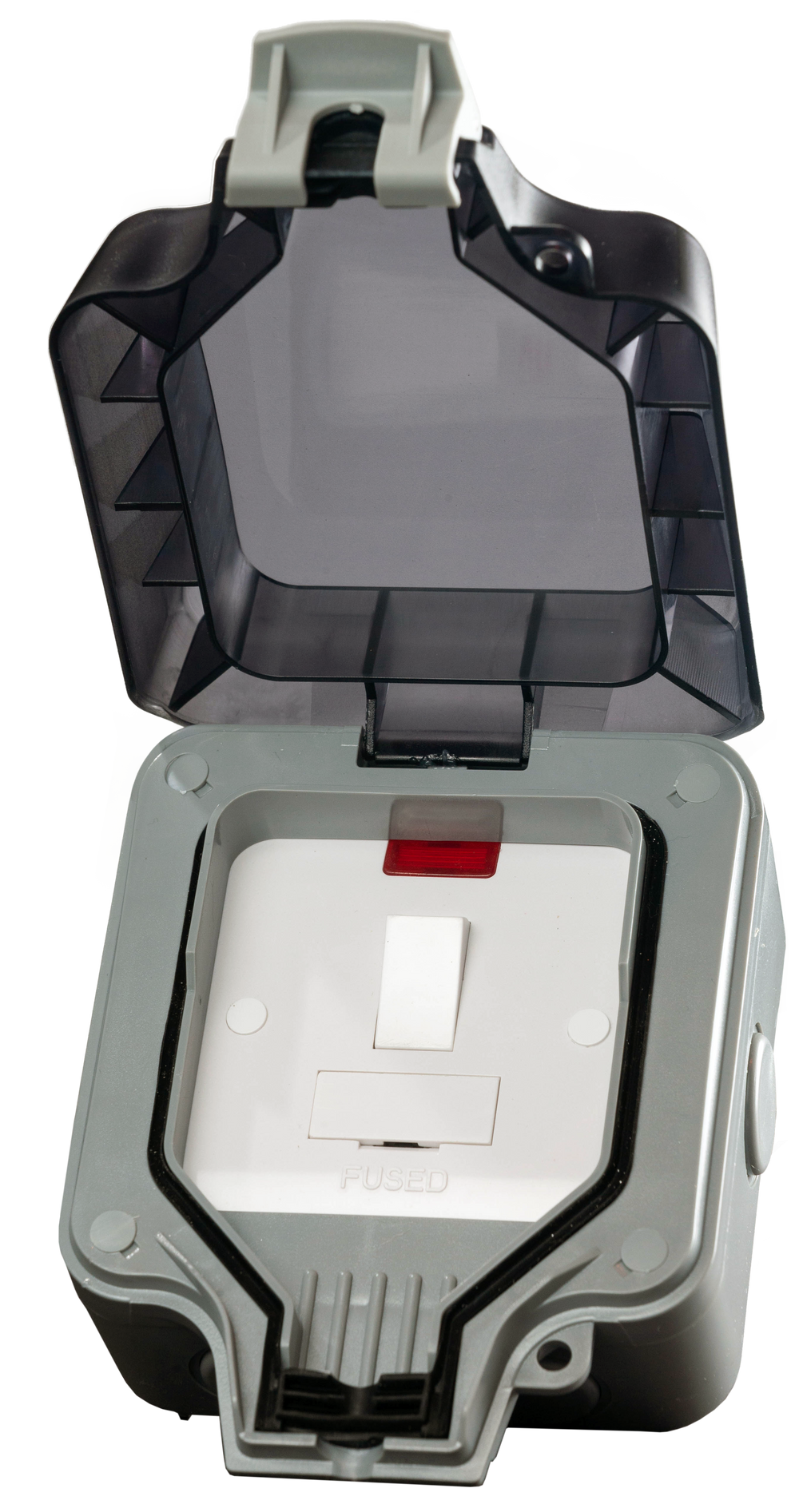

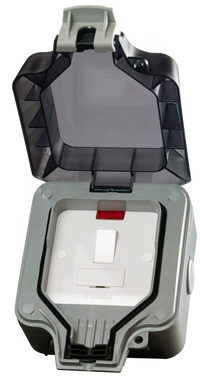

13A IP66 Weatherproof Switched Fused Spur (WPF13)
£9.40
ex VAT
£11.28 inc VATWas £12.00 ex VAT
SKU: WPF13
The WCED WPF13 13A weatherproof switched fused spur provides a fused connection and local on/off control for suitable fixed outdoor equipment. Its IP66 enclosure makes it a practical choice where a hardwired connection needs protection from dust and water. Choose it for a specified garden-lighting or outdoor-appliance circuit that needs...
Read full descriptionAccepted payment methods
Description
The WCED WPF13 13A weatherproof switched fused spur provides a fused connection and local on/off control for suitable fixed outdoor equipment. Its IP66 enclosure makes it a practical choice where a hardwired connection needs protection from dust and water.
Choose it for a specified garden-lighting or outdoor-appliance circuit that needs a fused connection rather than a plug socket. Your electrician should match the fuse and circuit protection to the equipment; the 13A unit rating is not a recommendation to use a 13A fuse for every load.
A practical connection point for fixed equipment
- Switch, fuse holder and indicator together: local control and fused connection in one wall-mounted accessory.
- IP66 enclosure: dust and water protection when installed and closed in accordance with the supplied instructions.
- Polycarbonate housing with a latching lid: a protective cover over the accessory for outdoor use.
- Cable-entry options on all four sides: removable blanking caps help the installer plan the cable route.
- 112 × 150 × 80mm (W × H × D): check the mounting space before ordering.
Fused spur or weatherproof socket?
| Product | Connection | Choose when |
|---|---|---|
| WPF13 — this product | Weatherproof switched fused spur | The fixed equipment is to be hardwired through a fused connection unit. |
| WPS113 | One-gang 13A IP66 socket | You need a plug-in connection for one appliance or tool. |
| WPS213 | Two-gang 13A IP66 socket | You need two socket outlets; total permitted loading still depends on the accessory and circuit ratings. |
Complete your outdoor connection
If your electrician has specified a weatherproof fused connection unit, order WPF13 in the quantity required. Select the cable-entry accessories and fuse to suit the installation, and check the supplied instructions before fitting.
Unsure whether the appliance needs a spur or a socket? contact Power & Data UK with the equipment make and model and intended location. You can also view the Whitecliffe weatherproof range datasheet or browse the weatherproof socket and switch range.
Technical specs
- Product code: WPF13
- Brand: WCED / Whitecliffe
- Accessory: 13A weatherproof switched fused connection unit
- Protection rating: IP66
- Dimensions: 112 × 150 × 80mm (W × H × D)
- Housing: polycarbonate with latching protective lid
- Cable entries: removable blanking caps on all four sides
- Indicator: visible indicator on the switched spur
- Manufacturer-listed standard: BS1363
- Fuse selection: match the fuse to the connected equipment and supplied instructions; do not assume every load needs 13A
Installation notes
A qualified electrician should select and install the accessory using the supplied instructions and the requirements of the connected equipment.
- Confirm that a switched fused connection unit is the correct connection method and select the fuse for the appliance.
- Assess the circuit protection and location; an IP rating alone does not establish suitability for every installation.
- Use cable-entry accessories suited to the cable and enclosure, keeping unused entries sealed as instructed.
- Keep the gasket, lid catch and cover in good condition so the completed installation maintains its intended protection.
- Complete the required inspection and tests before putting the equipment into service.
FAQs
Is WPF13 IP65 or IP66?
Whitecliffe lists WPF13 as IP66 in both the product table and weatherproof range datasheet. The legacy page address contains “IP65”, but the specification for this model is IP66.
What is the difference between a fused spur and an outdoor socket?
A fused spur is for a fixed, hardwired connection with a fuse selected for the equipment. A socket accepts a plug. For plug-in tools or appliances, compare the WPS113 single socket and WPS213 double socket. Follow the equipment manufacturer’s connection requirements.
Does every appliance connected to it need a 13A fuse?
No. The unit rating and the correct appliance fuse are different considerations. Your electrician should select the fuse from the equipment instructions and circuit design, and check the fitted fuse before commissioning.
Can it be exposed to rain?
It is intended for outdoor use with the enclosure, lid and cable entries installed as instructed. The IP rating depends on maintaining the seals and closing the cover correctly; it is not an immersion rating.
Does it replace an RCD?
No. The fuse and switch do not provide residual current protection. Any RCD protection required for the circuit must be provided separately as part of the installation design.
How much mounting space does it need?
The manufacturer lists the enclosure as 112mm wide × 150mm high × 80mm deep. Allow additional room for opening the lid, operating the accessory and bringing in the cables.
