10 Way Heat Pump Consumer Unit with Type B HP RCD + RCBOs (WME10/HP40R16)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £80+
Secure Payments With
Pre-wired in the UK and tested before dispatch – allow up to 3 working days for shipping. The WME10/HP40R16 10 Way Heat Pump Consumer Unit is a custom-configured protection board for inverter-driven heat pump systems. It is supplied with Type B HP RCD protection, Type 2 surge protection, a 16A...
Pre-wired in the UK and tested before dispatch – allow up to 3 working days for shipping.
The WME10/HP40R16 10 Way Heat Pump Consumer Unit is a custom-configured protection board for inverter-driven heat pump systems. It is supplied with Type B HP RCD protection, Type 2 surge protection, a 16A MCB, 3 x 16A RCBOs and a 100A main switch inside a compact metal enclosure.
Installer Note: This board uses Whitecliffe's Type B HP RCD technology, developed for inverter-driven heat pump systems where smooth DC and high-frequency residual currents may be present.
Why Choose the 10-Way Version?
The WME10/HP40R16 offers all the required pre-fitted protection devices in a compact footprint. With 10 usable ways, it’s the ideal choice for smaller domestic installs or where board space is limited. For larger projects, see the 12-way version.
Key Features
- Factory-fitted devices: 40A Type B RCD, 100A M/S, 16A MCB, 3 x 16A RCBO, 2P Type 2 SPD + Blank
- Compact size: 232 × 240 × 112mm enclosure
- Expansion ready: spare DIN space for future RCBO or MCB
- Compliant: BS 7671:2018+A2:2022 renewable regulations
- Durable build: white powder-coated steel, surface mount with knockouts
Variant Comparison
| Variant | Configuration | Best For |
|---|---|---|
| WME10/HP40R16 (10-Way – This Product) | Pre-fitted with 40A Type B RCD, 16A MCB, 3 x 16A RCBO, 110A Main Switch, 2P Type 2 SPD + Blank 232 × 240 × 112mm enclosure |
Compact installs with limited circuits, small domestic setups |

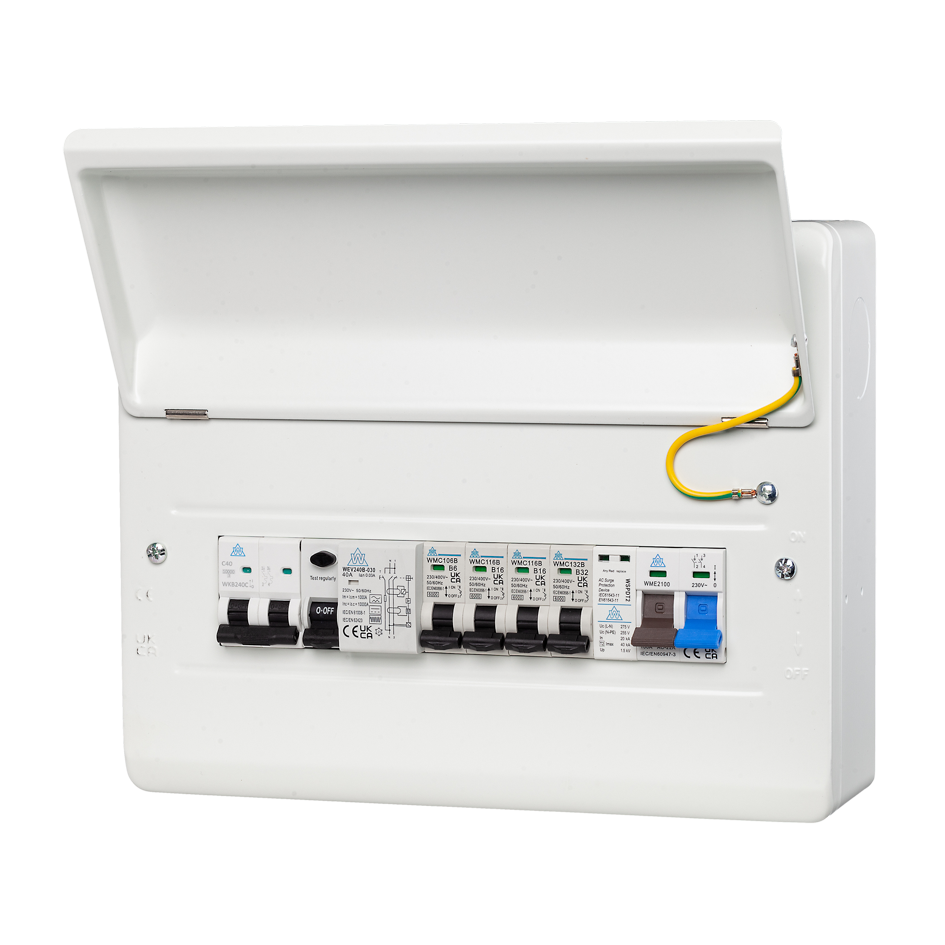

| WME12/HP40C (12-Way) | Same pre-fitted devices with extra DIN space 304 × 240 × 112mm enclosure |
Larger installs or where spare ways are needed for future RCBOs/MCBs |
Is this board compliant for heat pump installs under the 18th Edition?
Yes. It includes a Type B RCD and a Type 2 SPD, both required for inverter-driven loads such as heat pumps. For standalone installs, see our Heat Pump RCD.
What’s the difference between the 8-way and 12-way versions?
The devices supplied are the same. The 12-way simply provides more DIN space for adding future RCBOs or MCBs.
Can I add RCBOs to this board?
Yes. Spare DIN ways are included for adding outgoing protection devices. For nuisance-trip resistance, see our High Immunity RCBOs.
How quickly can this be delivered?
Each unit is built to order and dispatched within 3 working days. For in-stock options, see our 6 Way Consumer Units.
| Product Code | WME10/HP40R16 |
| Product Type | Heat Pump Consumer Unit |
| Enclosure Size | 10 Way |
| Dimensions | 232 x 240 x 112mm |
| Main Switch | 100A Main Switch |
| RCD | Type B HP RCD |
| MCB | 16A MCB |
| RCBOs | 3 x 16A RCBOs |
| SPD | Integrated Type 2 Surge Protection Device |
| Enclosure Material | Metal |
| Build Type | Factory Assembled & Pre-Wired |
This board is supplied pre-wired and must be installed by a qualified electrician. It simplifies compliant protection for heat pump circuits requiring Type B RCD and SPD integration.
- Mount securely on a dry, internal surface using standard fixings
- Use rear or side knockouts for incoming and outgoing cables
- Ensure correct earthing and SPD bonding as per BS 7671
- Do not modify pre-wiring – contact us for custom builds if needed
