EV Connection Unit – 100A Main Switch + 32A B Curve MCB + SPD + kWh Meter (WSRC532BSP)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £80+
Secure Payments With

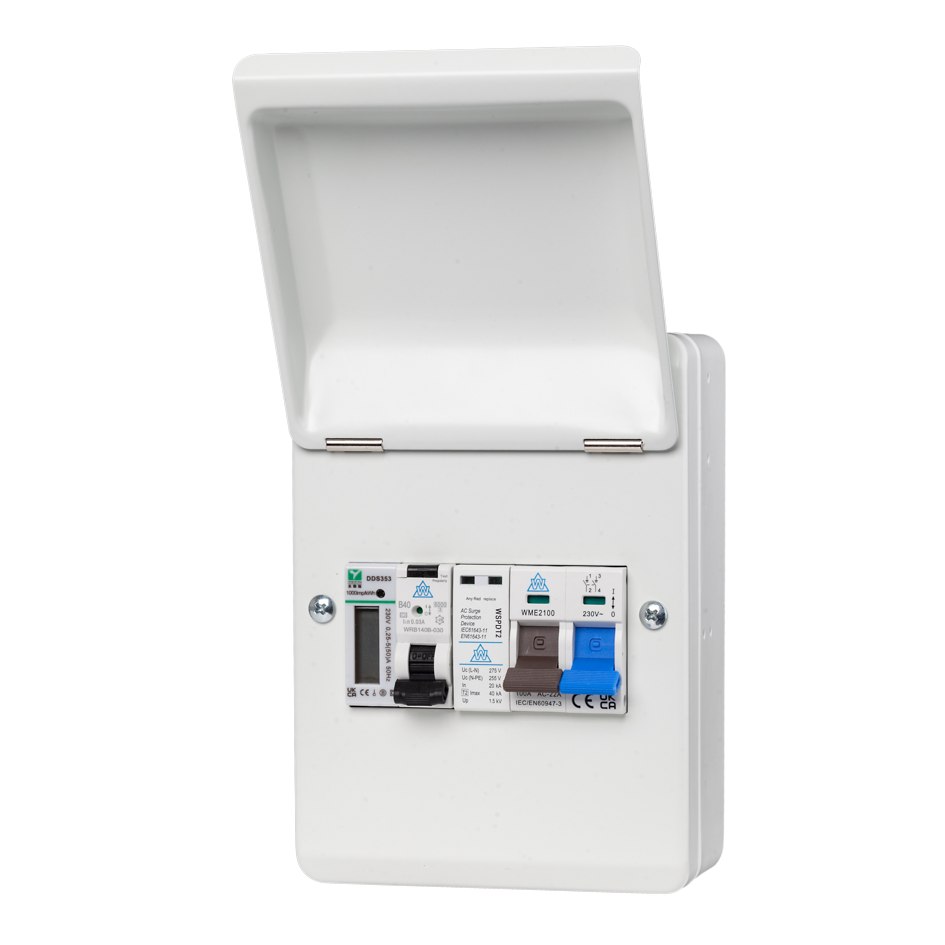

WSRC532BSP is a compact EV connection unit supplied with a 100A main switch, 32A B Curve MCB, Type 2 surge protection device, and a built-in kWh meter. It provides isolation, overload protection, surge protection, and energy monitoring in one pre-wired assembly. Based on the WCED EV connection unit format, this...
WSRC532BSP is a compact EV connection unit supplied with a 100A main switch, 32A B Curve MCB, Type 2 surge protection device, and a built-in kWh meter. It provides isolation, overload protection, surge protection, and energy monitoring in one pre-wired assembly.
Based on the WCED EV connection unit format, this board is suitable for EV charger installations and can also be used where a compact metered supply board is needed for other dedicated circuits. It is built to order and designed to simplify installation by combining the key protective devices into one enclosure.
- 100A Main Switch – double pole isolation of incoming supply
- 32A B Curve MCB – overload and short-circuit protection
- Type 2 SPD – protection against transient overvoltages and surges

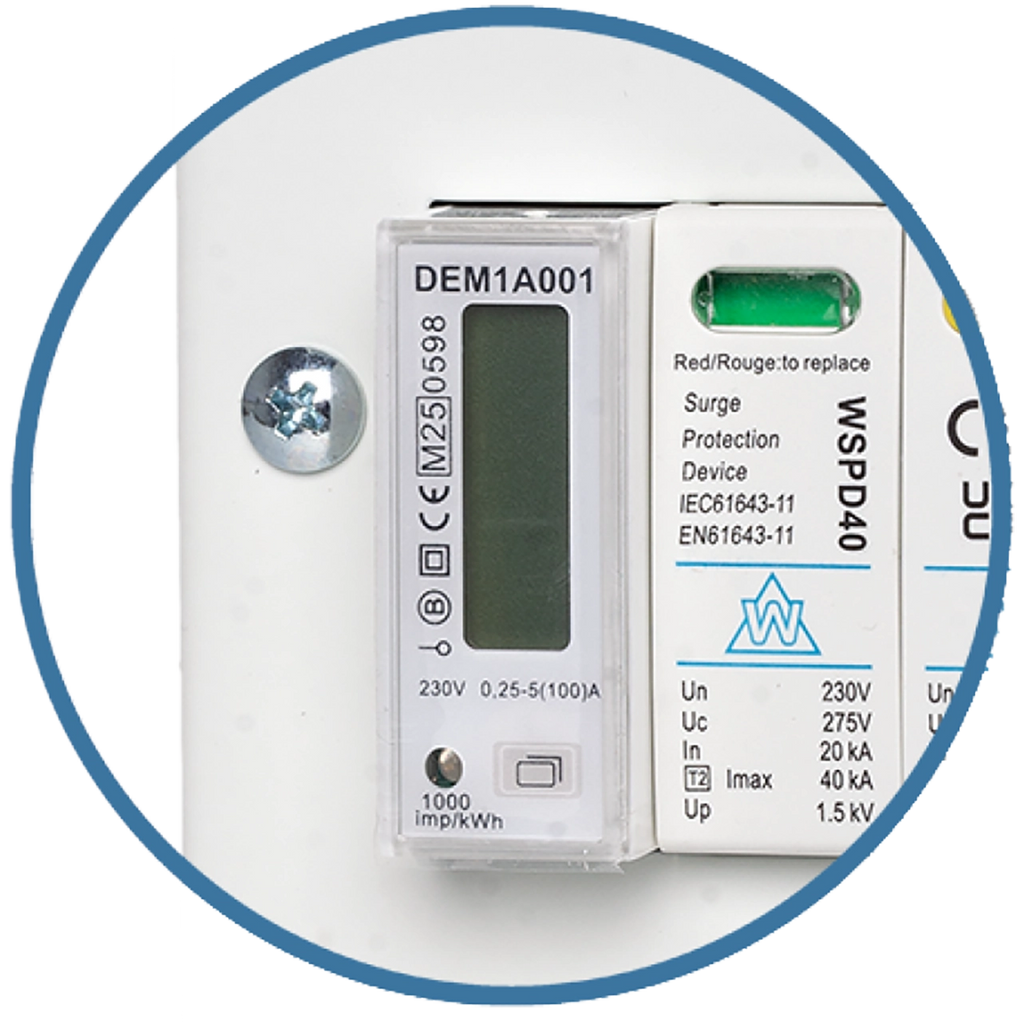

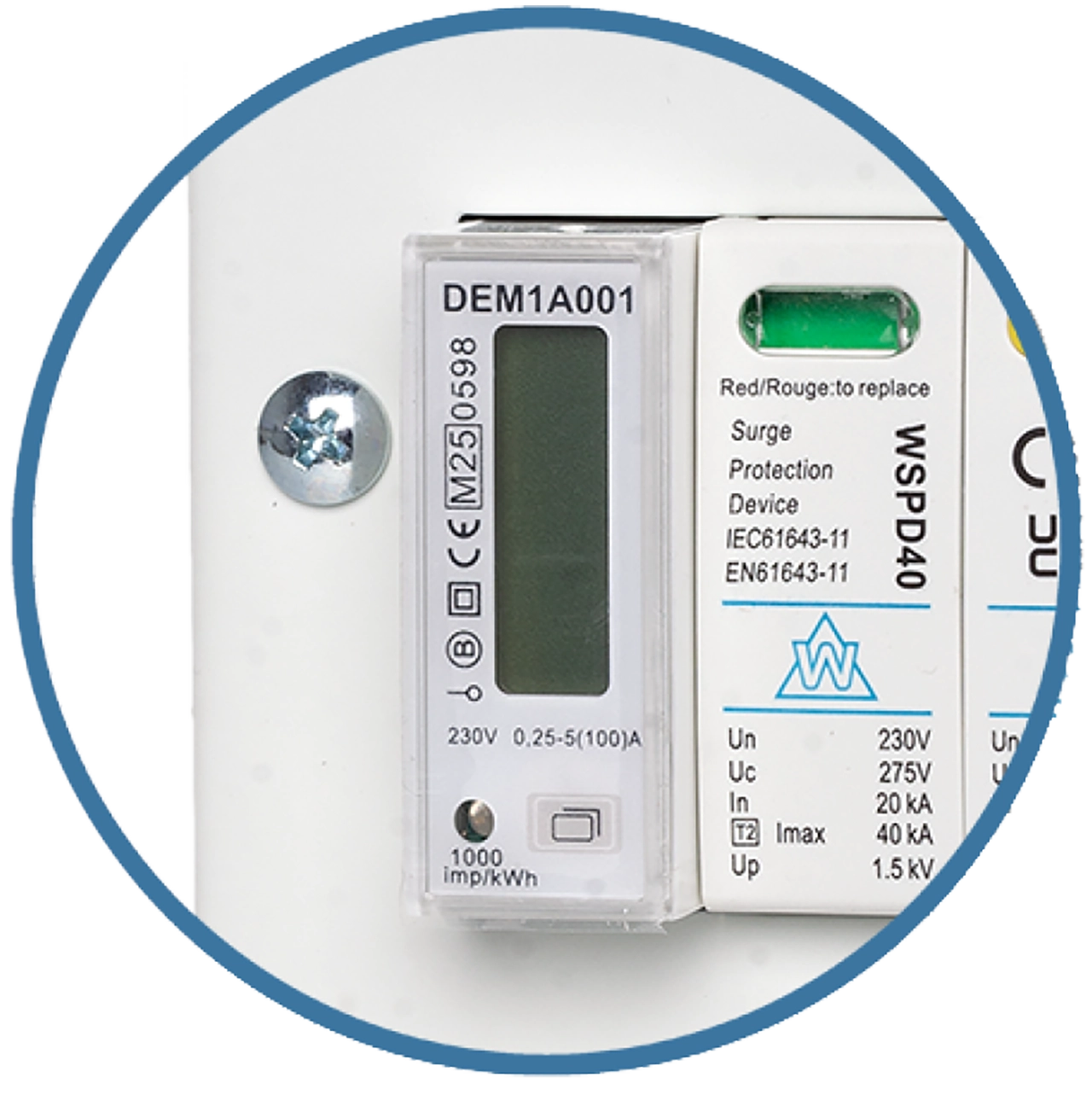

- Built-in kWh Meter – allows local energy usage monitoring
- Compact enclosure – dimensions 175mm x 110mm x 91mm
- Built to order – other MCB ratings available on request
Please allow 2–3 working days from order for assembly.
Is this suitable for EV charger installations?
Yes. WSRC532BSP is designed as an EV connection unit with a 100A main switch, 32A B Curve MCB, Type 2 SPD, and built-in kWh meter, making it suitable for dedicated EV supply arrangements.
Does this unit include surge protection?
Yes. It includes a built-in Type 2 surge protection device to help protect connected equipment against transient overvoltages.
Is the MCB fixed at 32A?
The standard configuration includes a 32A B Curve MCB. Other MCB ratings are available on request.
What does the kWh meter do?
The built-in kWh meter allows local monitoring of energy consumption on the connected circuit.
- Model: WSRC532BSP
- Product Type: EV Connection Unit with SPD and kWh Meter
- Main Switch: 100A Main Switch
- MCB: 32A B Curve
- SPD: Type 2 Surge Protection Device
- Meter: Built-in kWh Meter
- Dimensions: 175mm x 110mm x 91mm
- Other Options: Other MCB ratings available on request
This unit should be installed by a qualified electrician in accordance with BS 7671 and the equipment manufacturer's instructions. It is designed to provide a compact, pre-configured solution for isolation, overload protection, surge protection, and metering on dedicated circuits such as EV supplies.
- Confirm the selected MCB rating is suitable for the connected load
- Install within a suitable location and enclosure environment for the application
- Verify all terminations are tightened to the correct torque settings
- Test protective devices and confirm correct operation during commissioning
- Check SPD status indicator after installation and as part of routine inspection
