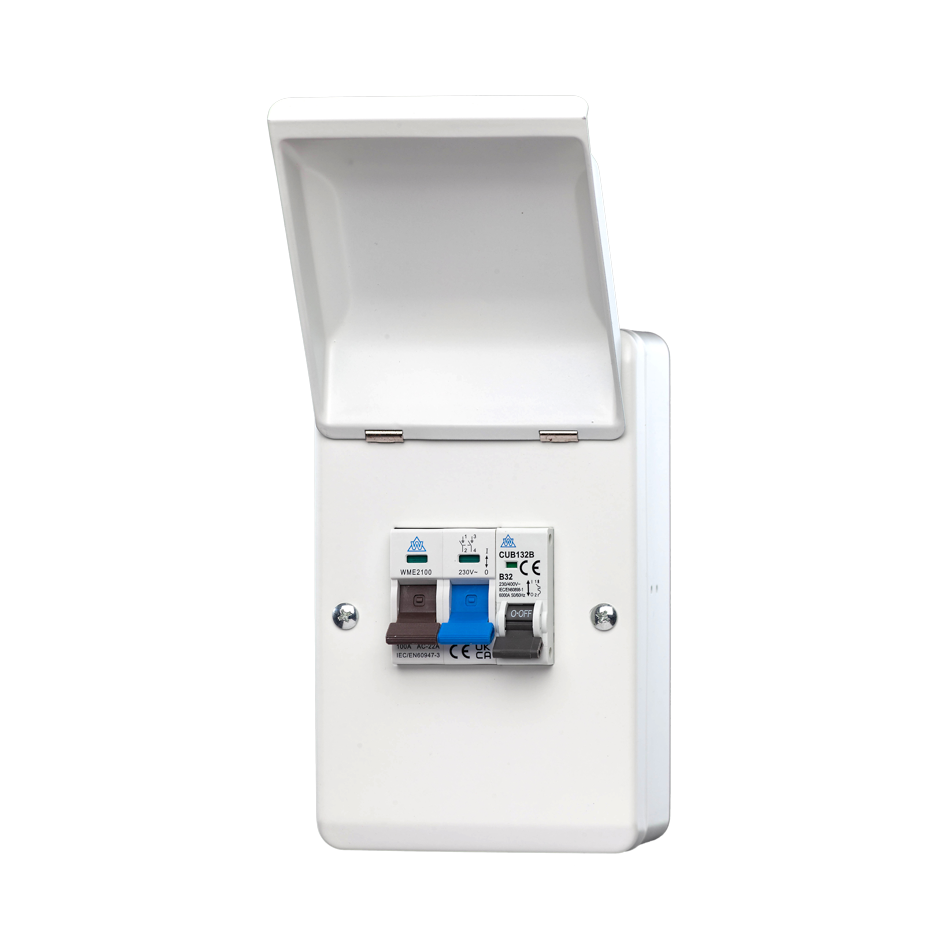

3 Way EV Connection Unit – 100A Main Switch + 32A MCB (WEVCU)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £80+
Secure Payments With

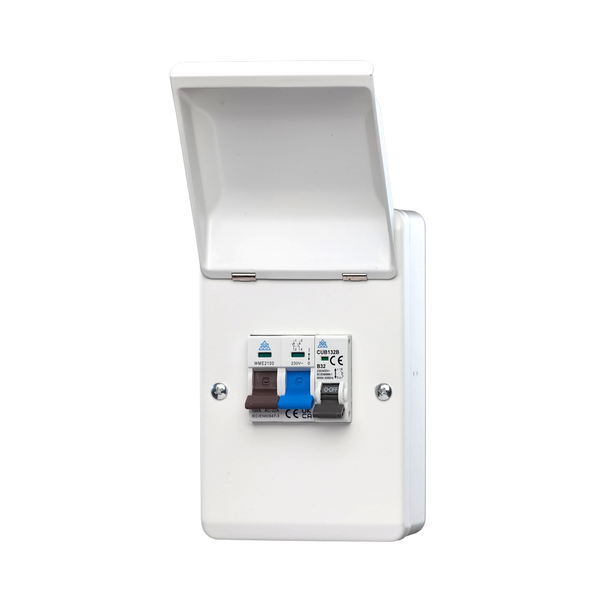

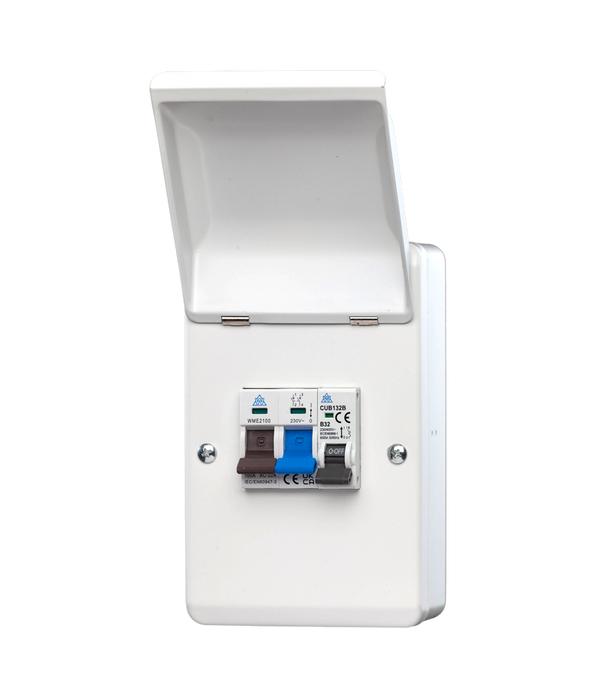

WEVCU is a compact 3-way IP40 metal EV connection unit supplied with a 100A main switch and 32A MCB. It provides a straightforward, pre-configured solution for isolation and overcurrent protection on dedicated EV charger circuits. Designed for installers who need a neat, cost-effective connection point, this unit is well suited...
WEVCU is a compact 3-way IP40 metal EV connection unit supplied with a 100A main switch and 32A MCB. It provides a straightforward, pre-configured solution for isolation and overcurrent protection on dedicated EV charger circuits.
Designed for installers who need a neat, cost-effective connection point, this unit is well suited to indoor EV supply arrangements where a compact steel enclosure and simple protective layout are required. The 100A main switch allows safe isolation of the incoming supply, while the 32A MCB provides overload and short-circuit protection for the outgoing circuit.
- 100A Main Switch – double pole isolation of incoming supply
- 32A MCB – overload and short-circuit protection for dedicated EV circuits
- 3-way IP40 steel enclosure – compact indoor board format
- Installer-friendly layout – suitable for dedicated EV charger supplies
- Compact dimensions – 110mm x 175mm x 91mm
This unit is commonly used as a simple EV charger connection point where local isolation and circuit protection are required in one enclosure. If you need additional options, you can also browse our wider range of EV protection units and connection boards, MCBs, and surge protection devices.
What is the WEVCU used for?
WEVCU is used as a compact EV connection unit, providing local isolation and MCB protection for a dedicated EV charger circuit.
Does this unit include a main switch?
Yes. It is supplied with a 100A double pole main switch for isolation of the incoming supply.
What protection device is included?
This version includes a 32A MCB for overload and short-circuit protection.
Is this suitable for outdoor installation?
No. This unit uses an IP40 metal enclosure and is intended for indoor use. For outdoor applications, use an IP-rated alternative.
Are other EV connection unit versions available?
Yes. Other configurations are available in the range where different breaker types or ratings are required.
- Model: WEVCU
- Product Type: EV Connection Unit
- Enclosure: 3-way IP40 metal enclosure
- Main Switch: 100A double pole
- MCB: 32A
- Dimensions: 110mm x 175mm x 91mm
This unit is intended for indoor installation and should be fitted by a qualified electrician in accordance with BS 7671 and the relevant equipment instructions.
- Install in a dry internal location only – IP40 enclosure
- Confirm the 32A MCB is suitable for the intended EV charger circuit
- Check all terminations are tightened to the correct torque settings
- Ensure cable selection and routing are appropriate for the connected load
- Test isolation and protective operation during commissioning
