Empty IP65 Plastic Enclosure – 12 Usable Ways
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £80+
Secure Payments With

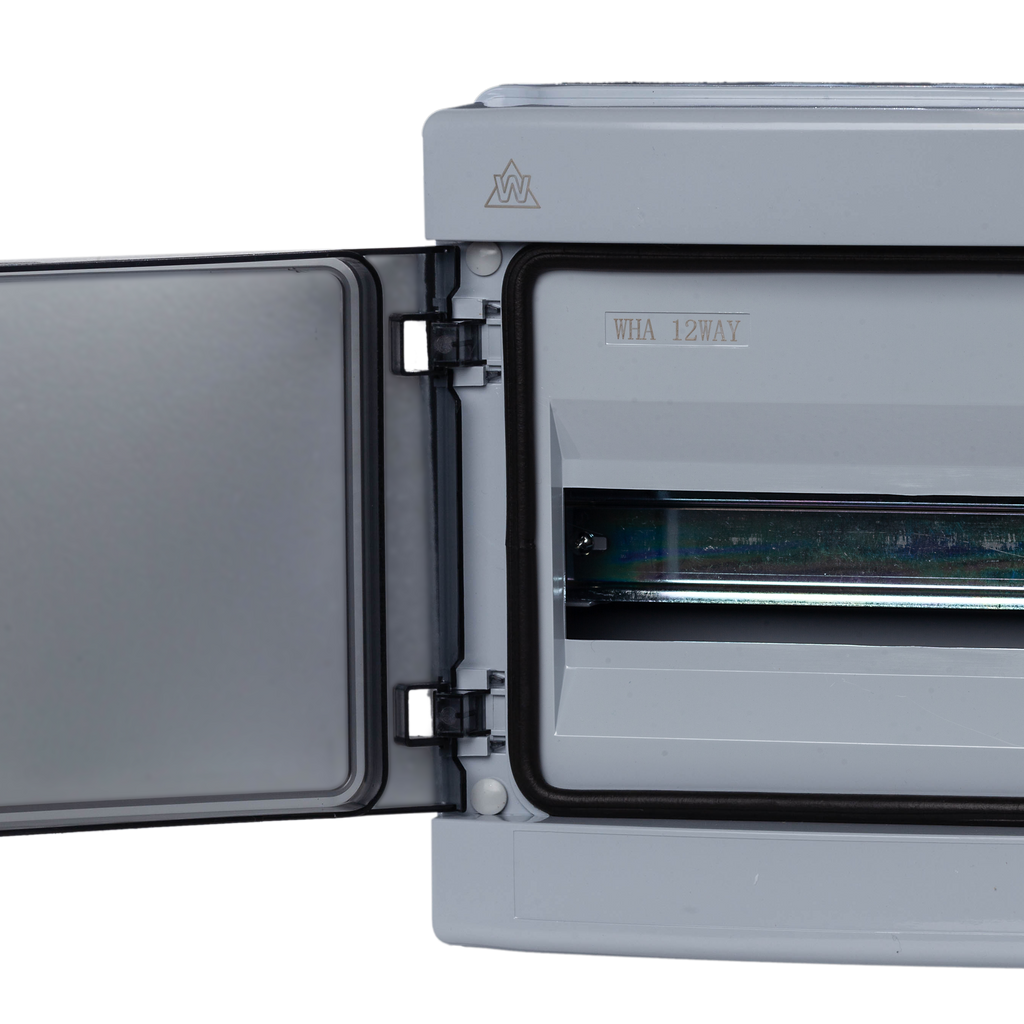

The WHA12-PME is a heavy-duty IP65-rated plastic enclosure with 12 usable DIN ways, designed for larger outdoor electrical installations where reliability and protection are essential. Built for EV charger clusters, workshops, heat pump supplies, and garden distribution circuits, it provides ample space for multiple breakers, RCDs, and surge devices. Each...
The WHA12-PME is a heavy-duty IP65-rated plastic enclosure with 12 usable DIN ways, designed for larger outdoor electrical installations where reliability and protection are essential. Built for EV charger clusters, workshops, heat pump supplies, and garden distribution circuits, it provides ample space for multiple breakers, RCDs, and surge devices.
Each enclosure includes Earth and Neutral bars for straightforward wiring, with a robust plastic housing that maintains ingress protection against moisture, dust, and impact. The deep body allows comfortable wiring clearance and accessory mounting while keeping the footprint compact for wall installations.
Installer Tip: Use this 12-way version for multi-circuit setups — ideal when combining RCBOs, SPDs, and isolators within one enclosure. Always verify clearances if using 2-pole or 4-pole devices.
- IP65 weatherproof protection for external environments
- Spacious 12-way configuration for multi-circuit use
- Includes Earth & Neutral bars and fixing hardware
- Compatible with MCBs, RCBOs, and SPDs
- Complies with BS EN 61439 and 18th Edition Amendment 2
Available Variants:
| Part Code | Description | Dimensions (W × H × D mm) |
|---|---|---|
| WHA465 | 4-way IP65 plastic enclosure | 140 × 205 × 95 |
| WHA865 | 8-way IP65 plastic enclosure | 212 × 205 × 95 |
| WHA12-PME | 12-way IP65 plastic enclosure | 295 × 255 × 140 |
Need a complete pre-wired unit? Check our EV-ready consumer unit kits or Garage Unit range for assembled options with RCBO and surge protection fitted.
What makes the WHA1265 suitable for outdoor use?
It’s rated IP65 for protection against dust and water jets, built with UV-stabilised plastic to withstand sunlight and weather exposure.
Is this enclosure large enough for surge and RCBO combinations?
Yes – the 12-way format provides space for several RCBOs, a main switch or isolator, and a Type 2 SPD. It’s well suited to multi-circuit EV or heat pump systems.
Does the unit come pre-fitted?
No – this is an empty enclosure with Earth and Neutral bars supplied. Devices are purchased separately.
Can I use this for multiple EV charge points?
Yes, it’s ideal for dual or multiple EV setups where additional RCBO and surge space is needed. See our EV Kits for pre-wired builds.
What’s supplied?
Includes enclosure body, transparent cover, Earth & Neutral bars, and wall-mount fixings.
- Part Code: WHA1265
- Rating: IP65 – weatherproof and dust-tight
- Material: Reinforced UV-resistant plastic
- Configuration: 12 usable DIN ways
- Bars Supplied: Earth & Neutral
- Mounting: Surface mount, wall fix
- Use: Indoor or outdoor installations
- Dimensions (W × H × D): 295 × 255 × 140 mm
- Compliance: BS EN 61439, IEC 60529
This 12-way enclosure provides additional space for complex circuit builds. Installation should be completed by a qualified electrician and in accordance with BS 7671.
- Mount securely on a flat, stable surface using provided fixings
- Seal cable glands fully to maintain IP65 integrity
- Ensure adequate cable bending space and tidy routing
- Use short, direct earth leads for SPDs
- Confirm breaker compatibility before fitting
