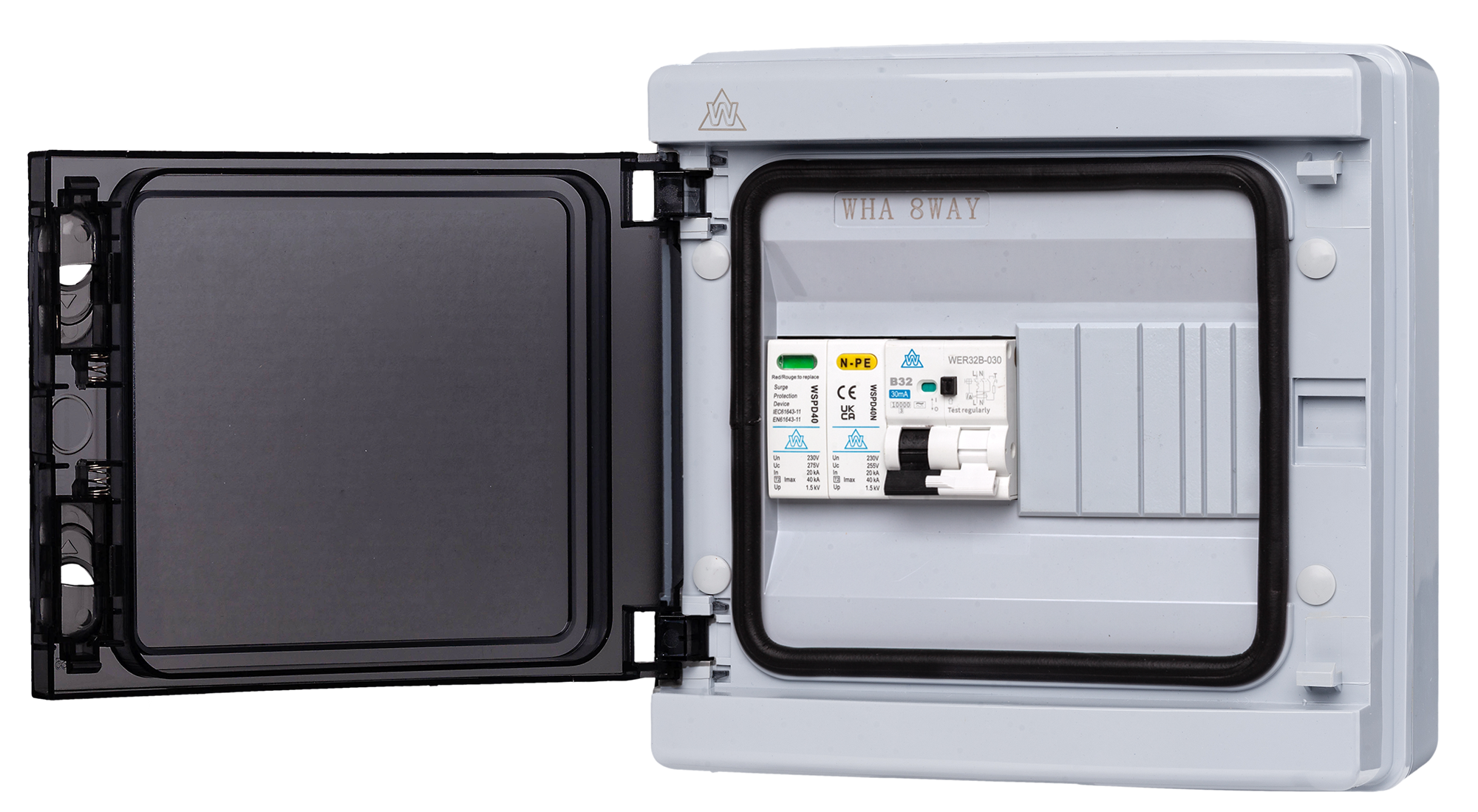

8 Way IP65 Enclosure – 32A C Curve Type A RCBO + Surge Protection (WPRC32CSP/8)

The WPRC32CSP/8 combines a 32A C Curve Type A RCBO and Type 2 surge protection in an 8-way IP65 plastic enclosure. The RCBO provides overcurrent and residual-current protection, while the SPD protects against transient overvoltages.

This /8 version uses the larger enclosure format. The fitted devices occupy part of that space: eight ways does not mean eight spare outgoing circuits. Select the current rating, trip curve and protection arrangement against the charger instructions and circuit design.

Key details

• RCBO current rating: 32A
• Overcurrent trip curve: C
• Residual-current protection: Type A
• Surge protection: Type 2 SPD
• Enclosure: 8-way IP65 plastic

For EV charging, confirm the required smooth-DC fault protection and any open-PEN protection separately. A Type A RCBO and SPD do not, by themselves, establish that all charge-point protection requirements are met.

Compare 8-way WPRC kits

Compare the standard enclosure version, WPRC32CSP, or browse our EV protection kits. Check exact dimensions and available outgoing space with us where these affect the installation.

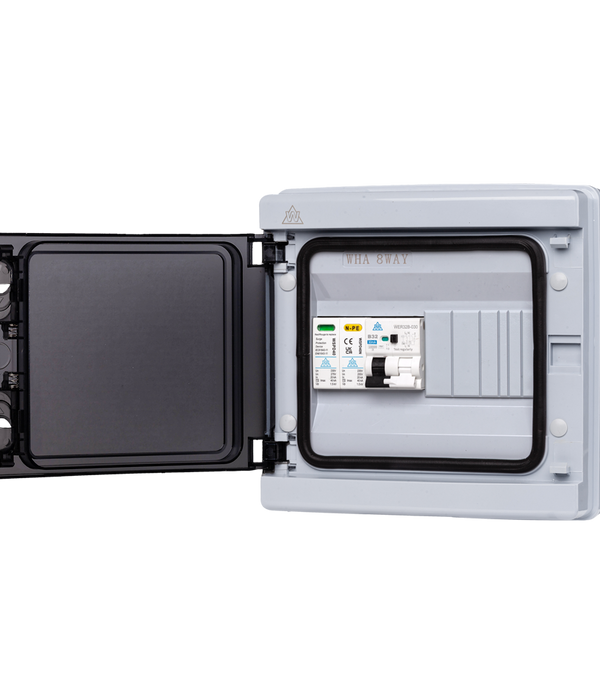

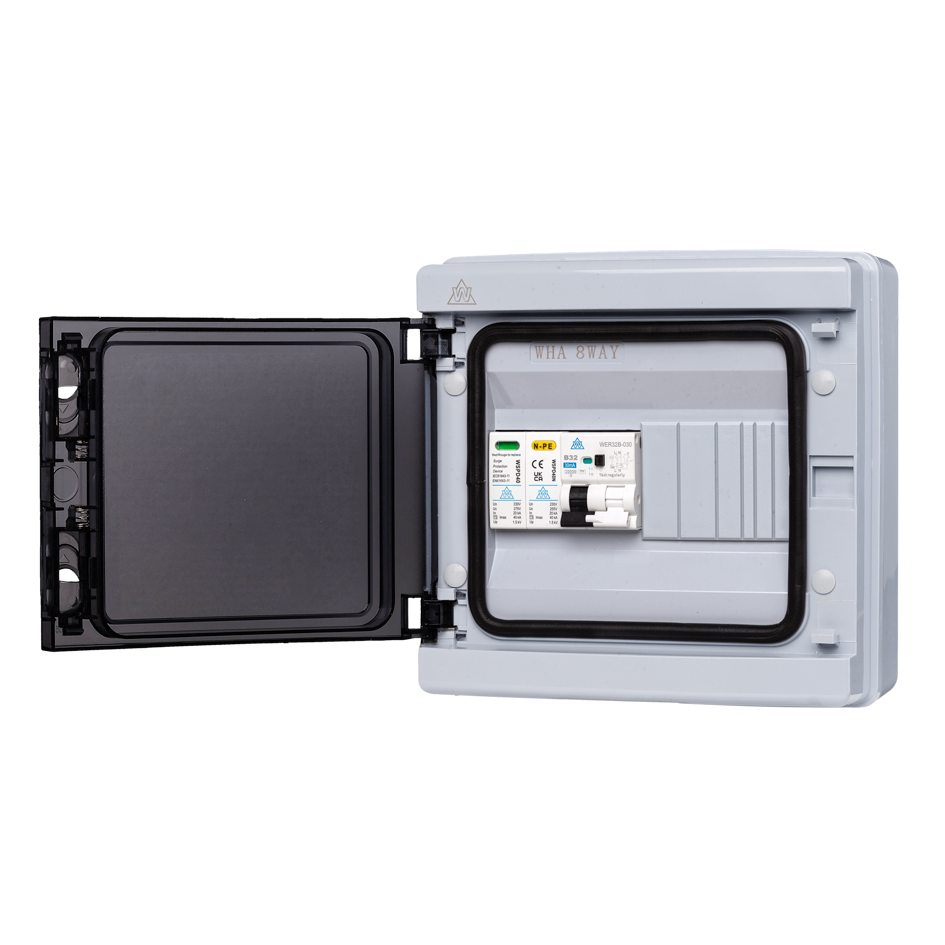

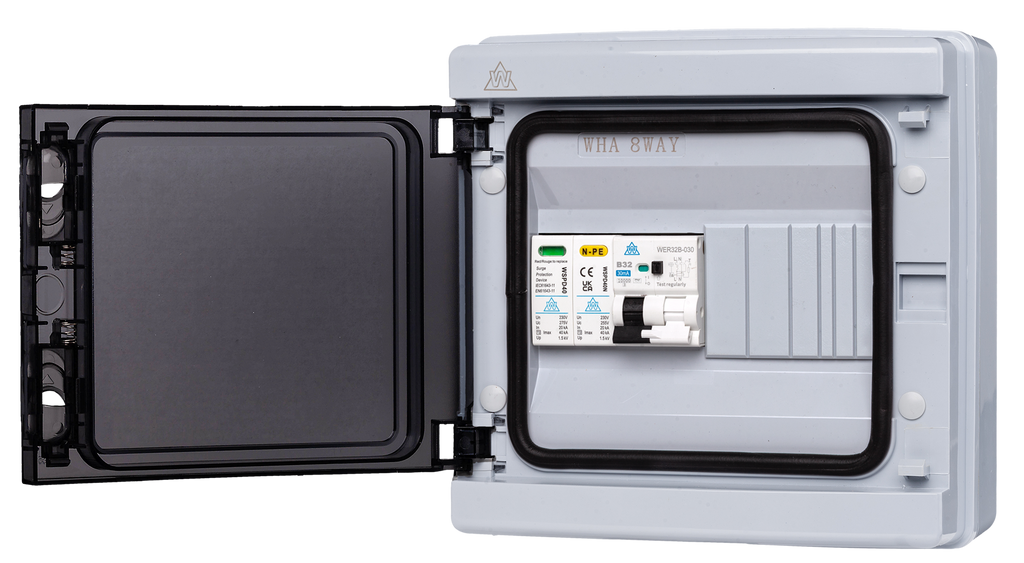

Images may show another model from the series. Use the listed part code, current rating and curve when ordering.

• Part code: WPRC32CSP/8
• RCBO current rating: 32A
• Overcurrent trip curve: C
• Residual-current protection: Type A
• Surge protection: Type 2 SPD
• Enclosure: 8-way IP65 plastic

For the exact /8 assembly dimensions, fitted RCBO model and sensitivity, SPD performance values and available outgoing space, please contact Power & Data UK before ordering.

A built-in 6mA smooth-DC detection function is not confirmed for this kit. Confirm the required EV DC-fault protection separately.

A qualified electrician must select, install and test the WPRC32CSP/8 against the charger requirements, circuit design and supplied assembly instructions.

• Verify that the 32A rating and C Curve characteristic suit the load, cable and required disconnection performance.
• Confirm residual-current, smooth-DC and any open-PEN protection required by the complete EV installation.
• Follow the supplied assembly line/load markings and wiring diagram; do not infer the feed direction from another RCBO or enclosure.
• Use suitable mounting and cable-entry fittings and maintain the enclosure's IP65 rating.
• Follow the supplied SPD connection, conductor, coordination and terminal-torque instructions.
• Inspect, test and label the completed circuit before putting it into service.

What does WPRC32CSP/8 include?

A 32A C Curve Type A RCBO and Type 2 SPD in an 8-way IP65 plastic enclosure.

Does Type A mean 6mA smooth-DC detection?

No. Type A describes residual-current response to AC and pulsating DC. It does not, on its own, establish a built-in 6mA smooth-DC trip function. Confirm the charger's DC-protection arrangement and the exact supplied kit specification.

Is the RCBO curve the same as the residual-current type?

No. B or C Curve identifies the overcurrent tripping characteristic. Type A identifies the residual-current protection type. Both must suit the circuit design.

Are all eight ways spare?

No. The enclosure format includes space occupied by the fitted RCBO and SPD. Please contact Power & Data UK to confirm the available outgoing space and approved device arrangement.

Does the kit include open-PEN protection?

The listed configuration is an RCBO and SPD. Confirm any separate open-PEN protection required for the earthing arrangement; residual-current and surge protection perform different functions.
