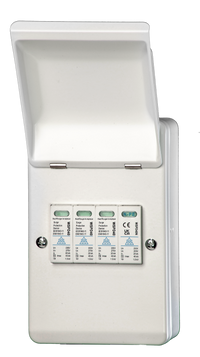

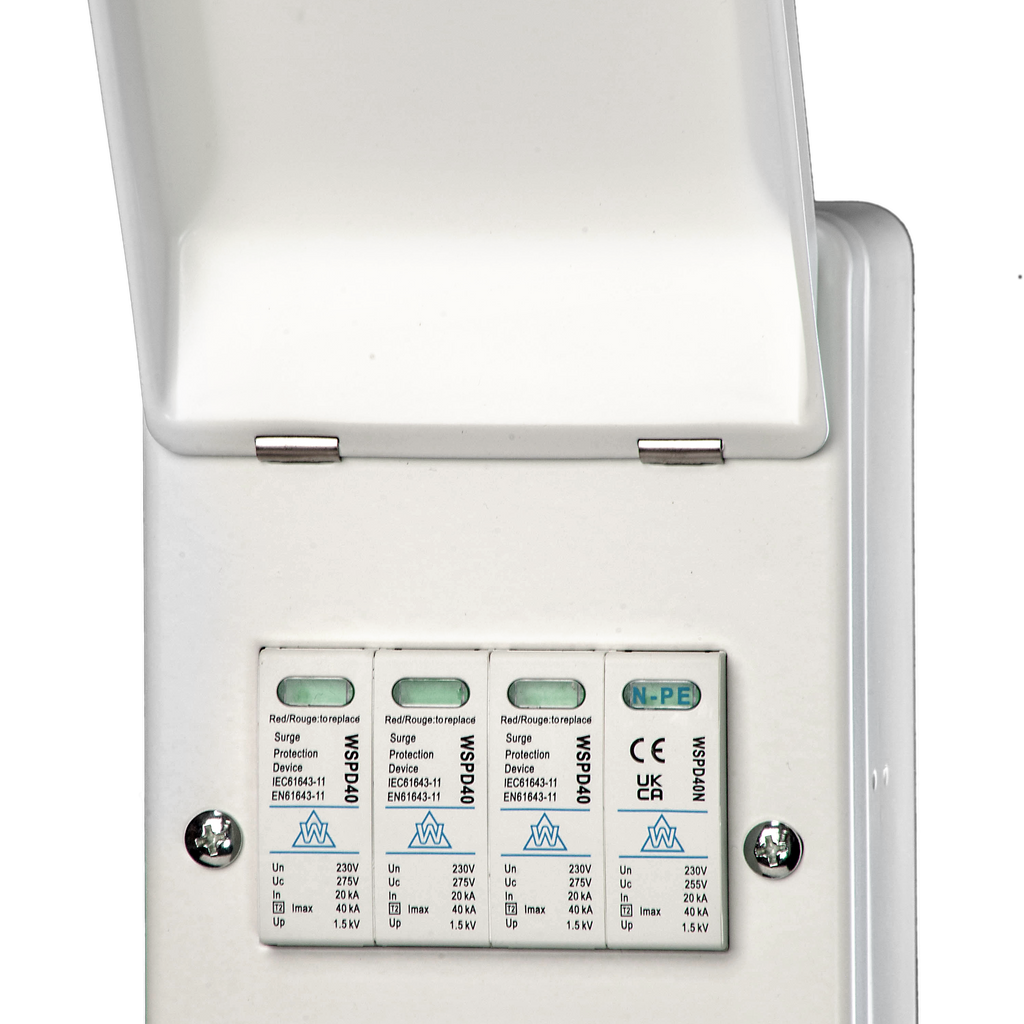

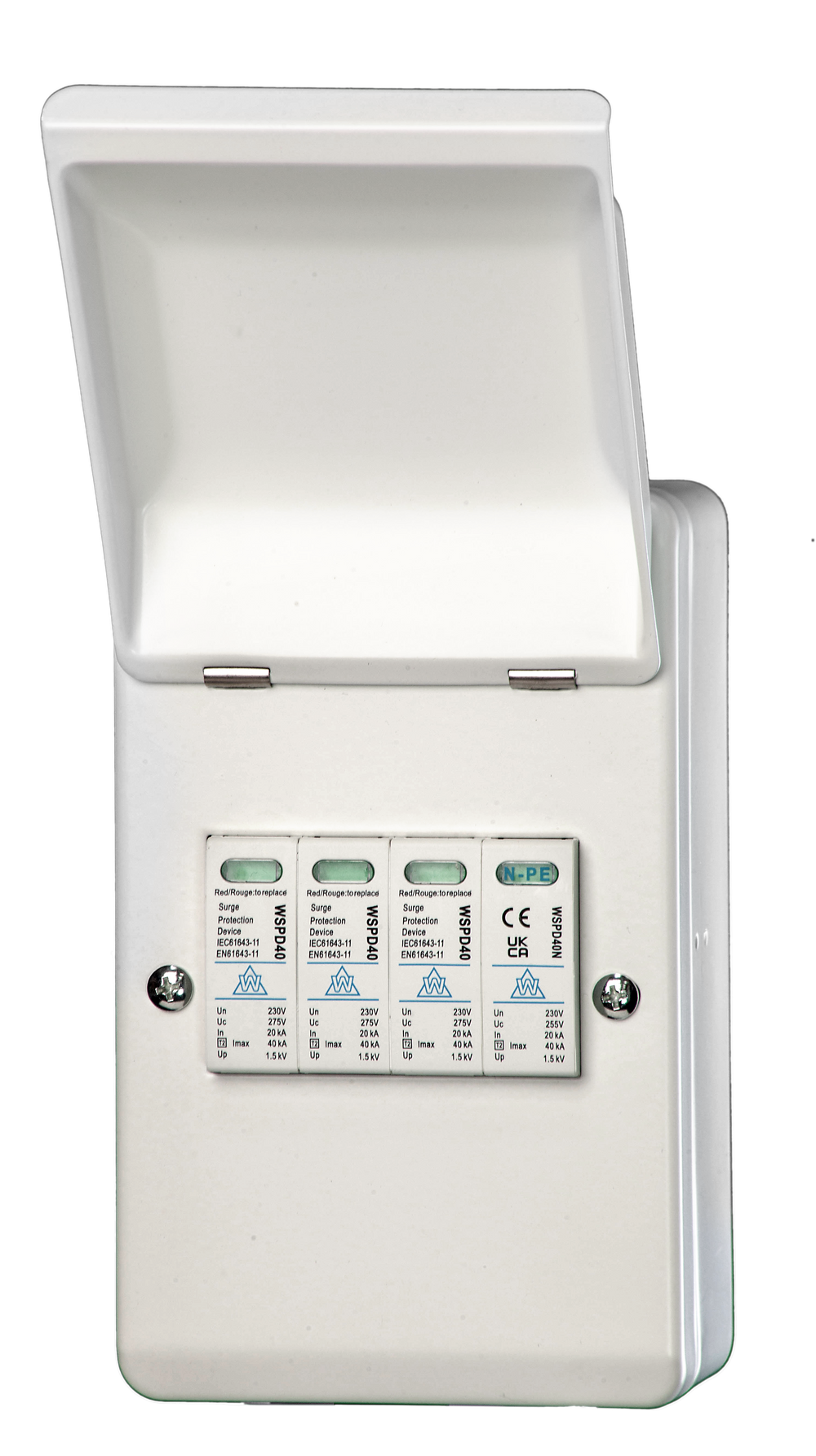

The WCED WME3P40SP is a pre-assembled 3-phase surge protection unit housed in a durable steel enclosure – built to safeguard commercial, industrial, and EV installations from transient overvoltages. Each unit includes a 4-pole Type 2 SPD, making it fully compliant with BS 7671 (18th Edition Amendment 2) requirements. Suitable for...
The WCED WME3P40SP is a pre-assembled 3-phase surge protection unit housed in a durable steel enclosure – built to safeguard commercial, industrial, and EV installations from transient overvoltages. Each unit includes a 4-pole Type 2 SPD, making it fully compliant with BS 7671 (18th Edition Amendment 2) requirements.
Suitable for three-phase distribution boards, EV charger supplies, and industrial machinery feeds, this unit comes pre-assembled and tested for fast installation on site. All models are built to order with a 3-working day turnaround.
- 4-Pole Type 2 SPD included – protects against voltage transients
- Steel IP-rated enclosure – robust and regulation-ready
- Pre-assembled & tested – saves install time
- Applications: EV chargers, warehouses, panelboards, renewables
- Lead time: Built to order in 3 working days
For PME supplies, pair with our PME fault detection units to ensure EV compliance without installing a separate earth rod.
What type of SPD is included?
The unit comes with a factory-fitted 4-pole Type 2 SPD, rated at 40kA discharge and suitable for TN-C-S, TN-S, and TT systems.
Is this suitable for EV installations?
Yes – it’s often specified for EV charger mains protection on commercial sites or large three-phase residential installs. For PME earthing systems, use with a PEN fault detection device for full compliance.
Does it come wired and assembled?
Yes – the SPD is pre-mounted and wired inside the metal enclosure. Only final terminations need to be made on site by a qualified electrician.
Can this unit be used indoors?
Yes – the metal housing is IP-rated for safe use in plant rooms, distribution cupboards, or sheltered outdoor cabinets.
What’s the delivery time?
All models are built to order and shipped within 3 working days from purchase.
- SKU: WME3P40SP
- System Type: 3 Phase (L1, L2, L3, N, E)
- SPD Type: Type 2, 4 Pole
- Nominal Discharge Current (In): 20kA per mode
- Maximum Discharge Current (Imax): 40kA
- Enclosure Material: Metal-clad, surface mount
- Mounting: Pre-drilled for wall installation
- Dimensions: Approx. 240mm x 160mm x 112mm
- Conformity: BS EN 61643-11, IEC 61643-11
This surge protection unit is pre-built for fast, compliant install. Final wiring must be completed by a qualified electrician, ensuring all earth connections are short and direct.
- Mount enclosure securely to wall or control panel framework
- Connect L1, L2, L3, N, and earth as marked
- Keep earth leads as short as possible to minimise impedance
- Confirm system voltage and SPD compatibility before energising
