3 Phase Type 2 Surge Protection Unit – 40A MCB, Metal IP40
£73.80 ex. VAT
£88.56 inc. VAT
3 Phase Type 2 Surge Protection Unit with 40A MCB | WPCUSP440C
£54.70
ex VAT
£65.64 inc VAT
SKU: WPCUSP440C
The WPCUSP440C combines a three-phase Type 2 surge protection device and 40A four-pole MCB in a plastic IP65 enclosure, providing an enclosed surge-protection assembly for installers specifying three-phase systems. Surge protection and MCB in one enclosure A dedicated enclosure gives the surge-protection assembly its own place alongside the wider distribution...
Read full descriptionAccepted payment methods
Description

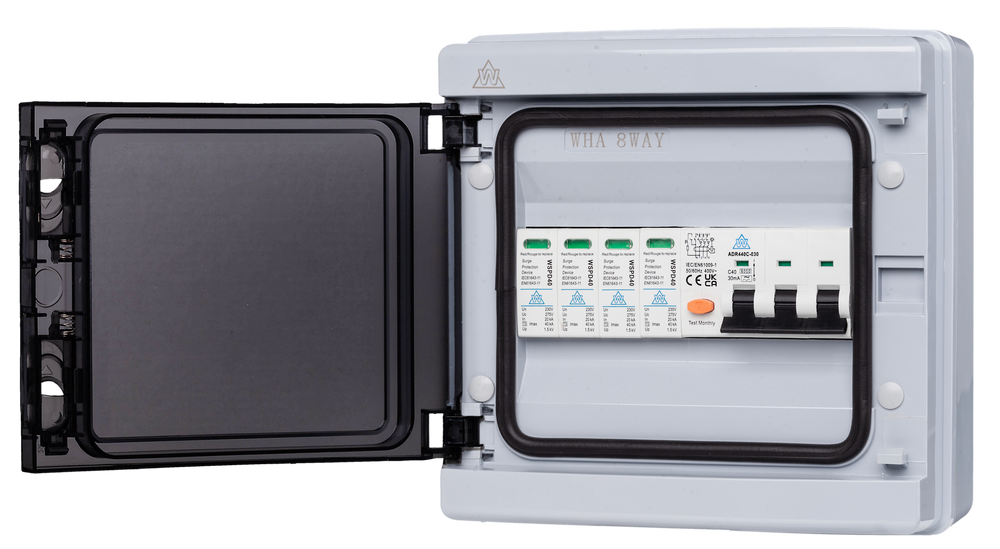

The WPCUSP440C combines a three-phase Type 2 surge protection device and 40A four-pole MCB in a plastic IP65 enclosure, providing an enclosed surge-protection assembly for installers specifying three-phase systems.
Surge protection and MCB in one enclosure
A dedicated enclosure gives the surge-protection assembly its own place alongside the wider distribution equipment. This listing is the MCB configuration, so you can identify the protection arrangement before ordering.
- Type 2 surge protection: helps protect connected equipment against transient overvoltages when correctly selected and coordinated.
- 40A four-pole MCB: provides the assembly's listed overcurrent protective device.
- Plastic IP65 enclosure: an option where the enclosure specification requires this material and ingress-protection rating.
- One assembly reference: quote WPCUSP440C for product enquiries and repeat orders.
Check the protection arrangement The MCB provides overcurrent protection. Any required residual-current protection must be provided separately; this product is not the RCBO version.
Compare the plastic and metal enclosure options
Choose the enclosure for the installation environment and assembly requirements. The IP rating and enclosure material differ between these products.
| Product | Configuration | When to consider it |
|---|---|---|
| WPCUSP440C — this product | Plastic IP65 enclosure; Type 2 SPD and 40A four-pole MCB | Your enclosure specification calls for the plastic IP65 assembly. Confirm the fitted components and cable-entry requirements for the job. |
| WMCUSP440C metal surge unit | Metal IP40 enclosure; Type 2 SPD and 40A MCB | Your installation calls for a metal enclosure in an environment suitable for IP40. |
Need a different protection arrangement? Browse three-phase surge protection units and three-phase boards and accessories.
Confirm the build for your job Ask Power & Data UK about WPCUSP440C if you need the fitted component references, enclosure dimensions, usable spare space or dispatch lead time before ordering. Include the product code and your required delivery date.
Technical specs
| Specification | Details |
|---|---|
| Product code | WPCUSP440C |
| Configuration | Three-phase MCB and surge protection assembly |
| Overcurrent device | 40A four-pole MCB |
| Surge protection | Type 2 SPD |
| Enclosure material | Plastic |
| Enclosure rating | IP65 |
Please confirm the exact fitted component references, electrical ratings, assembly dimensions and usable spare space before ordering for a specified installation.
Installation notes
A qualified electrician must select and install this assembly using the instructions for the supplied enclosure and fitted devices, together with the applicable BS 7671 requirements.
- This product is the MCB version; assess any additional residual-current protection required.
- Confirm supply characteristics, earthing arrangements and protective-device coordination.
- Maintain the enclosure's required ingress protection when choosing entries, glands and mounting arrangements.
- Check spare module space and assembly compatibility before adding devices.
FAQs
What configuration am I ordering?
WPCUSP440C is listed with a Type 2 SPD and 40A four-pole MCB in a plastic IP65 enclosure. Quote this code if you need the exact fitted component references confirmed before ordering.
Does the MCB also provide residual-current protection?
No. The MCB provides overload and short-circuit protection. Any residual-current protection required by the installation must be provided separately.
Is there a metal enclosure option?
Compare WMCUSP440C, which is the metal IP40 MCB/SPD assembly. The enclosure material and IP rating differ, so select against the installation environment.
Can I add more outgoing circuits?
Ask for the usable spare module space and assembly compatibility to be confirmed before planning additional devices. Nominal enclosure capacity does not establish the space left after the fitted components.
How do I check dimensions and delivery timing?
Contact Power & Data UK quoting WPCUSP440C, the dimensions you need to verify and your required delivery date. The team can confirm the current build information and dispatch timing.
