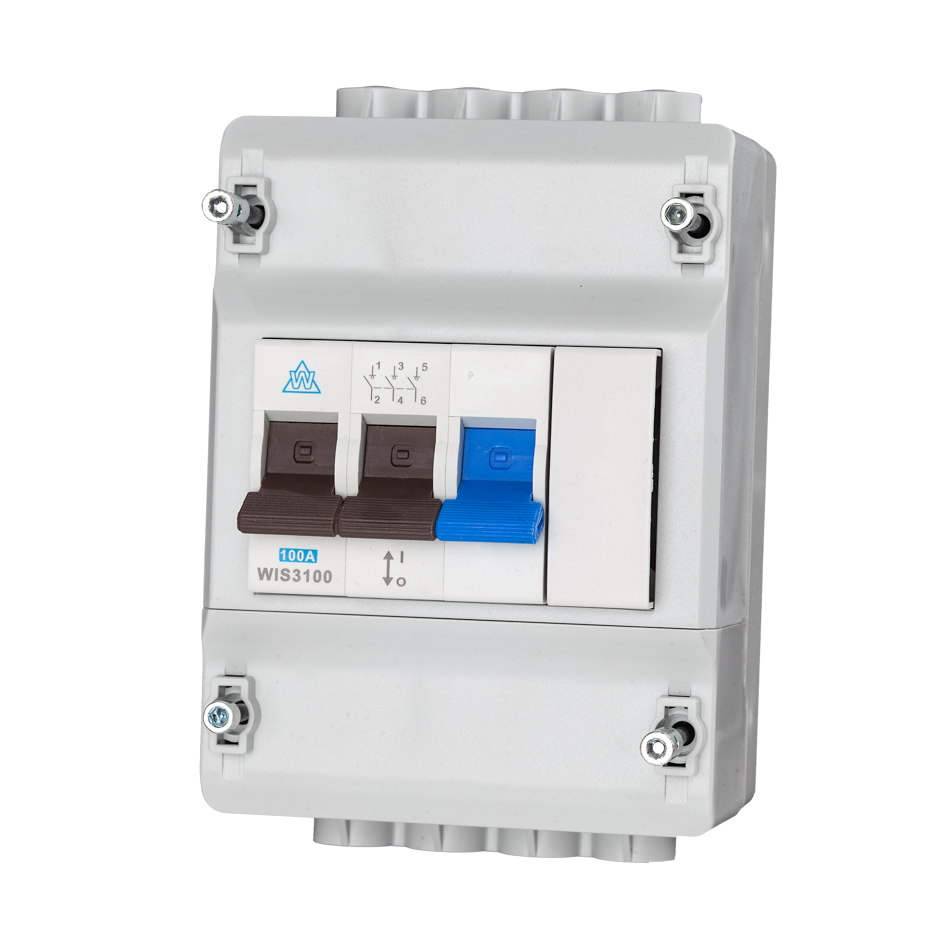

100A Plastic Meter Isolator 3 Module 2P&N (WEC3100)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £80+
Secure Payments With
The WEC3100 is a 100A plastic meter isolator supplied in a 3 module enclosure with a 2P&N twin screw terminal main switch. Part of the Whitecliffe plastic meter isolation range, the WEC3100 is designed as a compact and secure isolation solution where additional internal space is needed compared to the...
The WEC3100 is a 100A plastic meter isolator supplied in a 3 module enclosure with a 2P&N twin screw terminal main switch.
Part of the Whitecliffe plastic meter isolation range, the WEC3100 is designed as a compact and secure isolation solution where additional internal space is needed compared to the smaller WEC2100 meter isolator. The catalogue lists this model as a 3 module enclosure & 100A, 2P&N, twin screw terminal main switch in a 95 x 145 x 82mm format.
The wider range features a three-part seal and secure enclosure, sealed lid screws, a two-part lid for extra safety, and a switch that is lockable through a padlock or suitable lock. Whitecliffe also describes the range as suitable for resistive and moderately inductive loads such as switching lighting and heating control boards in homes, shops, offices, warehouses, factories, and hospitals.
- 100A main switch – 2P&N twin screw terminal configuration
- 3 module enclosure – extra internal space compared with the 2 module version
- Plastic meter isolation enclosure – compact and practical for indoor use
- Secure design – three-part seal and secure enclosure with sealed lid screws
- Lockable – suitable for safe isolation procedures
- IP20 rated – for suitable indoor installations
What is the WEC3100?
The WEC3100 is a 100A plastic meter isolator in a 3 module enclosure with a 2P&N twin screw terminal main switch.
What is the difference between the WEC2100 and WEC3100?
The WEC2100 is listed as a 2 module enclosure with 100A 2P main switch, while the WEC3100 is a 3 module enclosure with 100A 2P&N twin screw terminal main switch.
Is the WEC3100 lockable?
Yes. Whitecliffe states that switches in this range are lockable through a padlock or by means of a lock.
What size is the WEC3100?
The catalogue dimensions are 95 x 145 x 82mm.
Where is this isolator typically used?
Whitecliffe describes the plastic meter isolation range as suitable for resistive and moderately inductive loads such as switching lighting and heating control boards in homes, shops, offices, warehouses, factories, and hospitals.
- Product Code: WEC3100
- Description: 3 module enclosure & 100A, 2P&N, twin screw terminal main switch
- Current Rating: 100A
- Switch Configuration: 2P&N
- Terminal Type: Twin screw terminal main switch
- Enclosure Type: Plastic meter isolation enclosure
- Enclosure Size: 3 module
- Ingress Protection: IP20
- Safety Features: Three-part seal and secure enclosure, sealed lid screws, two-part lid
- Locking: Switch lockable through padlock or suitable lock
- Dimensions: 95 x 145 x 82mm
- Applications: Suitable for resistive and moderately inductive loads such as lighting and heating control boards
This unit should be installed by a qualified electrician in accordance with current wiring regulations and manufacturer guidance.
- Mount the enclosure securely in a suitable indoor location
- Use the twin screw terminal main switch in accordance with the required installation arrangement
- Ensure all conductors are correctly terminated and secured
- Use the sealing and lock-off features where safe isolation or tamper resistance is required
- Confirm the enclosure and switch configuration are suitable for the intended application before energising
The Whitecliffe plastic meter isolation range is listed as IP20 and suitable for resistive and moderately inductive loads in a wide range of indoor applications.
