Main Switch vs Meter Isolator: What’s the Difference?
Main switch and meter isolator get used interchangeably all the time, but they do not always mean exactly the same thing in practice. Both are used for isolation, both sit around the supply side of an installation, and both can look similar in compact enclosures - but the context they are used in matters.
In simple terms, a main switch is the primary isolating switch for a board or enclosure, while a meter isolator usually refers to an isolator fitted near the meter position to allow safe disconnection of the downstream installation. Sometimes the same physical device can perform both roles. What changes is where it sits and what it is isolating.
For related products and protection options, browse our Meter Isolation & Change Over Switches, Main Switches & Rotary Isolators, Consumer Units and Enclosures & Consumer Units ranges.
Quick Answer: A main switch is the primary isolating switch for a board or enclosure. A meter isolator is usually an isolating switch fitted near the meter to disconnect the downstream installation safely. In many compact units, the actual switch may be very similar or even the same type of device. The difference is mainly about application and position in the system, not always the switch mechanism itself.
| Feature | Main Switch | Meter Isolator |
|---|---|---|
| Main job | Isolates the board or enclosure it is fitted in | Disconnects the downstream installation near the meter position |
| Typical location | Inside a consumer unit or dedicated enclosure | Adjacent to or associated with the meter tails / metering setup |
| Typical use | Board isolation, local switching, enclosure control | Safe isolation for work on the installation beyond the meter |
🧭 Jump to:
The Quick Answer
- Main switch usually means the primary isolator for a board or enclosure.
- Meter isolator usually means an isolator fitted near the meter position to disconnect the downstream installation safely.
- In many products, the actual switch hardware can be very similar.
- The difference is mainly about where it is fitted and what part of the installation it is isolating.
Related reads: What Is a Meter Isolator Switch? · Rotary Isolator vs Main Switch · When Do You Need a 100A Main Switch?
What a Main Switch Actually Does
A main switch is there to isolate the supply to a consumer unit, distribution enclosure or other switchgear assembly. It is the switch that turns that board on or off and allows safe isolation of the equipment downstream of it.
That means the term is usually tied to the board itself. If you are looking at a 4-way enclosure with a 100A switch inside it, that switch is functioning as the main switch for that enclosure.
This is why main switches show up in so many different board formats. The role is broad: isolate the assembly it is fitted into.
What a Meter Isolator Actually Does
A meter isolator is usually fitted close to the meter so that the downstream installation can be disconnected safely without disturbing the supplier’s side unnecessarily. In domestic and light commercial work, this is often the device installers mean when they talk about “an isolator after the meter”.
That is why meter isolators are so common in compact 2-way or 3-module enclosures. They are often used around meter tails, supply upgrades, EV installs and board changes where safe isolation of the installation side matters.
So while the switch itself might look similar to a compact main switch, its role is more specific: it is isolating the installation at the meter position.
What’s the Actual Difference Between a Main Switch and a Meter Isolator?
The simplest way to put it is this:
- Main switch describes the switch’s role inside a board or enclosure
- Meter isolator describes the switch’s role at the meter position
That means the difference is often more about application than some totally different internal mechanism. In some products, the same type of 100A double-pole switch could reasonably be described one way or the other depending on how and where it is being used.
This is also why product names on the market can blur together. A unit might be described as a meter isolator, a main switch enclosure, or even both depending on the intended use case.
When You Normally Need a Main Switch
You are usually looking for a main switch when you need local isolation of a board or enclosure.
- Consumer units
- Dedicated protection enclosures
- Sub-distribution points
- Three-phase switchgear and enclosures
This is why products like the WME44100 4 Way IP40 Metal Enclosure with 4 Pole 100A Main Switch sit so clearly in the “main switch” camp. The switch is there to control and isolate the enclosure it is fitted into.
Installer’s Pick: If you need a compact enclosure with a proper integrated main switch, the WME44100 is a strong option for three-phase and wider enclosure-based isolation duties.
When You Normally Need a Meter Isolator
You are usually looking for a meter isolator when the goal is safe isolation of the installation side close to the meter position.
- Domestic board changes
- Meter tail isolation
- EV charger installs
- Light commercial upgrade work

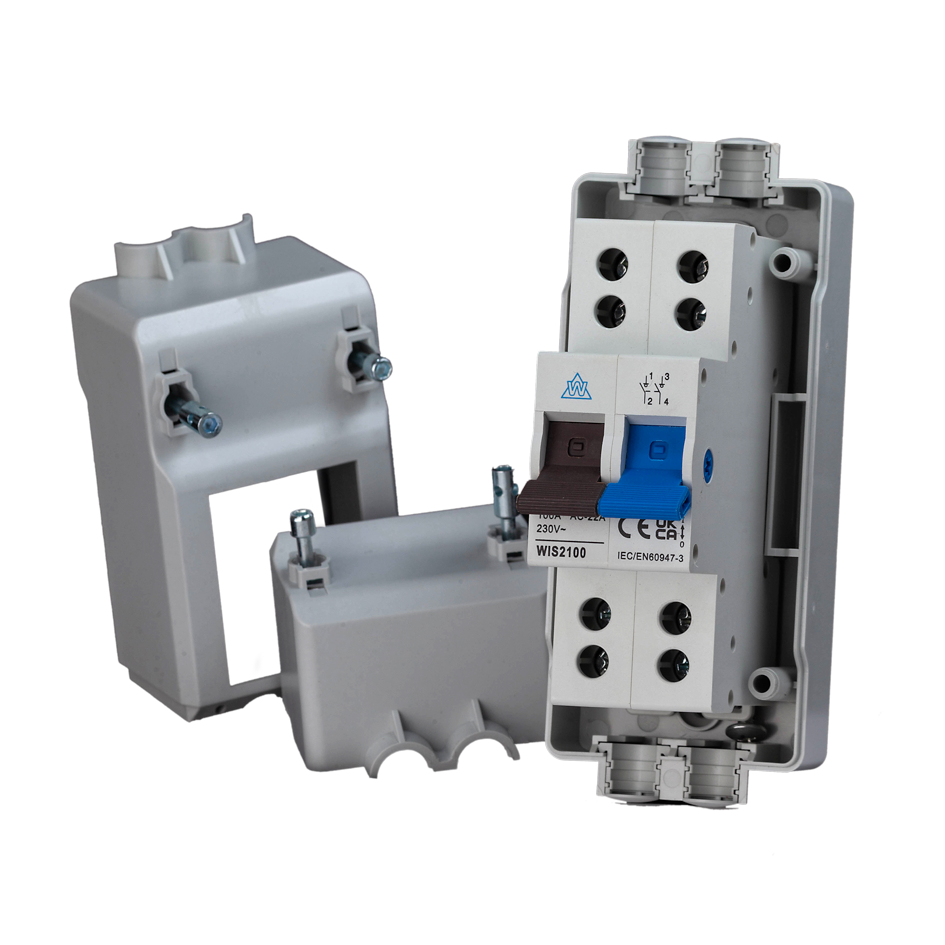

This is exactly where compact enclosed units like the WEC2100 100A Plastic Meter Isolator, WEC3100 and MEC2100 Metal Meter Isolation make sense. They are built around that meter-side isolation role.
Can the Same Device Be Both a Main Switch and a Meter Isolator?
In practice, yes - sometimes the same physical switch type can do both jobs. A 100A double-pole switch in a compact enclosure might be described as a main switch if it is isolating that enclosure, or a meter isolator if it is fitted at the meter position to isolate the downstream installation.
That is why so much confusion happens around these terms. Buyers assume they must always mean completely different products, when in reality the overlap is often quite strong.
The real question is not “what is this switch called in isolation?” It is: where is it being fitted, and what is it isolating?
Common Mistakes to Avoid
- Assuming main switch and meter isolator always mean totally different hardware – often the distinction is about application.
- Ignoring the enclosure and installation position – that is where the role becomes clear.
- Using a product label instead of thinking about the isolating function needed – always work backwards from the job.
- Confusing these with fuse switches or rotary isolators – those can overlap in purpose but are still different product groups.
- Forgetting pole count matters as well as application – especially once three-phase setups come into the picture.
Regulation Reminder: The key point is that the device used must provide the right isolation function for the way it is being installed. The name buyers use in conversation is not always the most important part - the installation role is.
Products & Categories That Fit the Job
- Meter Isolator Products: WEC2100 · WEC3100 · MEC2100
- Meter Isolator Enclosures: WEC2 · WEC4
- Main Switch Enclosure Example: WME44100
- Category Hubs: Meter Isolation & Change Over Switches · Main Switches & Rotary Isolators
FAQs
Is a meter isolator the same as a main switch?
Not always, but they can overlap. A main switch isolates a board or enclosure, while a meter isolator usually isolates the downstream installation near the meter position.
Can a main switch be used as a meter isolator?
In some cases, yes, if the device and enclosure are suitable for that application. The key is the installation role, not just the label.
Why do these products look so similar?
Because the switch hardware can often be very similar. What changes is where the device is installed and what it is intended to isolate.
Do I need a plastic or metal meter isolator enclosure?
That depends on the install environment, mounting position and the wider setup. Both plastic and metal options are used depending on the job.
When do I need a 4-pole main switch instead of a standard meter isolator?
Usually when you are dealing with a three-phase setup or an enclosure that needs broader multi-pole isolation rather than a simpler domestic meter-side isolator arrangement.
Final Word
A main switch and a meter isolator are closely related, and in some cases the same kind of switch hardware can be used for either job. The real difference is usually where the device sits in the installation and what it is isolating.
If it is isolating the board or enclosure it sits in, you are usually thinking main switch. If it is isolating the downstream installation at the meter position, you are usually thinking meter isolator.
👉 Ready to spec? Browse our meter isolator range, compare compact 100A isolator units, or choose a main switch enclosure for broader board isolation duties.
