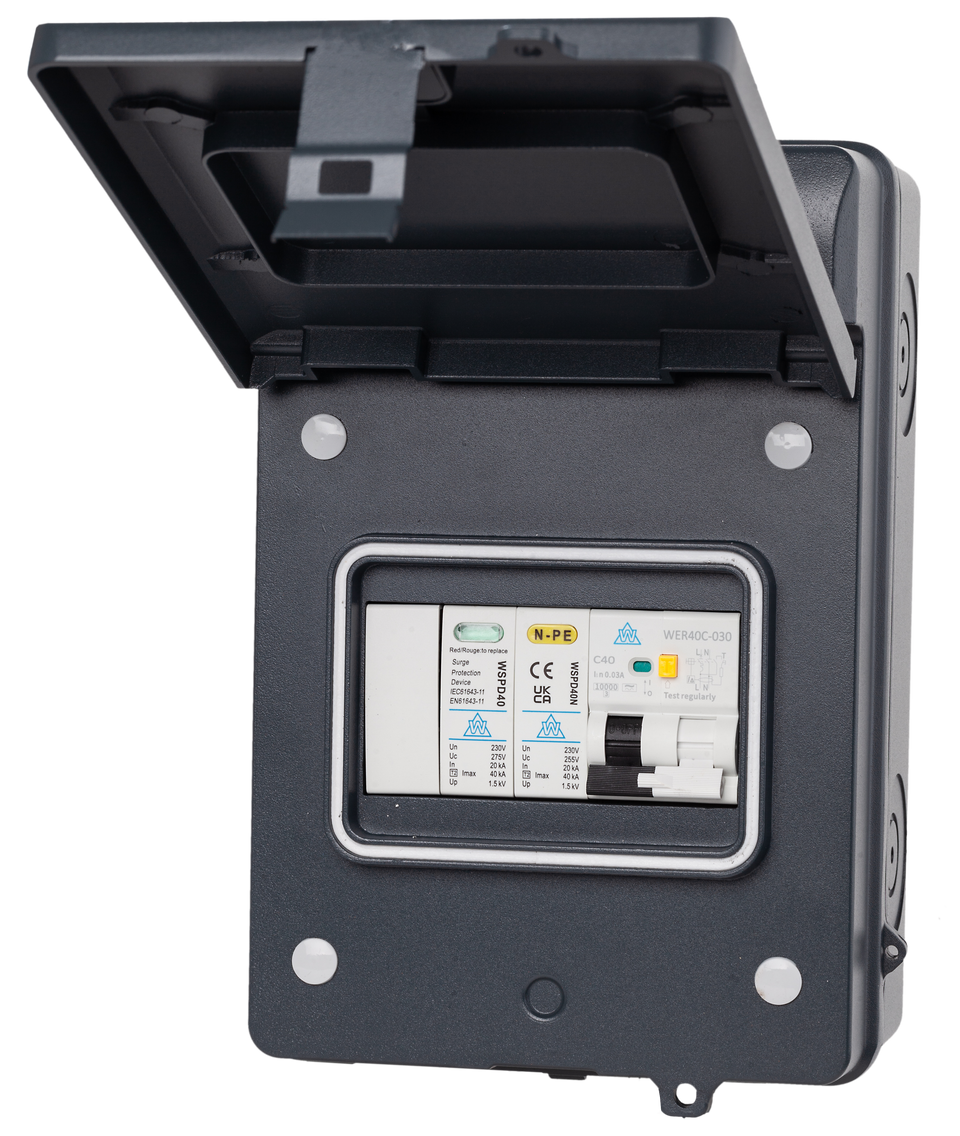

Does an EV Charger Need a Separate Consumer Unit?
An EV charger normally needs its own dedicated circuit, but that does not automatically mean it needs a separate consumer unit.
If the existing consumer unit has suitable capacity, space and protective devices, the EV charging circuit may be connected from that board. If the existing board cannot accommodate the charger cleanly, fitting a dedicated EV consumer unit can be the more practical option.
Quick answer: An EV charger should have a dedicated final circuit, but it does not always need its own consumer unit. A separate EV board is commonly fitted when the existing consumer unit is full, unsuitable, difficult to modify or cannot provide the required EV protection arrangement cleanly.
If the existing board can safely accommodate the dedicated EV circuit and all required protection, installing another consumer unit purely because it is an EV charger is not automatically necessary.
Need a separate board? Browse our EV Consumer Units & Kits, including compact boards and dedicated EV protection units.
| Question | Typical Answer |
|---|---|
| Does an EV charger need a dedicated circuit? | Yes. EV charging equipment should be supplied by its own dedicated circuit. |
| Does it need its own consumer unit? | Not necessarily. The dedicated circuit may be supplied from a suitable existing consumer unit. |
| When is a separate EV board useful? | When the existing board lacks space, is unsuitable, needs substantial modification or a self-contained EV protection arrangement is preferable. |
Jump To:
Dedicated EV Circuit vs Dedicated Consumer Unit
This is the distinction that causes most of the confusion.
An EV charger having a dedicated circuit does not mean it must have an entirely separate consumer unit.
The dedicated circuit is the electrical circuit supplying the charging equipment. Depending on the installation, that circuit can originate from:
- The existing main consumer unit
- A dedicated EV consumer unit
- A suitable distribution board
- A purpose-built EV connection or protection unit
The important part is that the charging point has its own appropriately designed circuit and protective arrangement.
Key distinction: Dedicated circuit = normally required. Dedicated consumer unit = depends on the installation.
Can an EV Charger Use the Existing Consumer Unit?
Yes, provided the existing board and electrical installation are suitable for the additional EV charging circuit.
Before using the existing consumer unit, the installer needs to consider factors such as:
- Available ways: Is there physical space for the new protective device?
- Board condition: Is the existing consumer unit suitable for alteration and continued service?
- Protective device compatibility: Can the correct RCD or RCBO arrangement be installed?
- Surge protection: Is suitable SPD protection already present or can it be incorporated?
- Supply capacity: Can the installation accommodate the additional EV load?
- Earthing arrangement: Does the EV installation require additional consideration for PME / open-PEN protection?
- Manufacturer instructions: Does the charger require a particular protective arrangement?
If those requirements can all be met cleanly, there may be no need to install another consumer unit.
When Should You Fit a Separate EV Consumer Unit?
A separate EV consumer unit becomes particularly useful where trying to add the charger to the existing board would make the installation unnecessarily difficult or compromised.
Common reasons include:
- The existing consumer unit is full
- The existing board is old or unsuitable for straightforward alteration
- The required EV protective devices cannot be accommodated cleanly
- A dedicated SPD arrangement is needed
- The charger is installed remotely from the main board
- A separate PME / open-PEN protection arrangement is required
- A compact self-contained EV board makes installation and future maintenance simpler
In these situations, fitting a purpose-built EV board can be much cleaner than trying to modify the existing consumer unit around the charger.
👉 Compare EV Consumer Units & Kits.
Do I Need a New Consumer Unit for an EV Charger?
Not automatically.
Installing an EV charger does not mean the property's entire existing consumer unit must be replaced simply because a charger is being added.
If the board is suitable and has the necessary capacity and provision for the dedicated EV circuit, it may be retained.
There are three broad outcomes installers commonly encounter:
| Existing Installation | Possible Approach |
|---|---|
| Suitable consumer unit with spare capacity | Add the dedicated EV circuit to the existing board |
| Main board is otherwise serviceable but unsuitable for the EV circuit | Add a separate small EV consumer unit / protection unit |
| Existing board itself requires upgrading | Replace or upgrade the main consumer unit as part of the wider work where justified |
So the EV charger does not itself dictate a full consumer-unit replacement. The existing installation needs to be assessed first.
What Protection Does an EV Charger Circuit Need?
Whether the circuit originates in the existing board or a dedicated EV consumer unit, the protection still has to suit the charger and installation.
Typical considerations include:
- Dedicated overcurrent protection
- Suitable RCD / RCBO protection
- DC residual-current protection appropriate to the EVSE
- Disconnection of the required live conductors
- Surge protection where required by the installation design
- Open-PEN / PME protection where applicable
- Suitable isolation
This is why dedicated EV boards often combine several functions inside one enclosure.
Depending on the application, browse:
Can an EV Charger Be Connected to a Garage Consumer Unit?
Potentially, yes, provided the garage consumer unit, its supply and the complete circuit arrangement are suitable for the charging load.
The fact that a board is located in a garage does not automatically make it suitable for EV charging.
The installer still needs to assess:
- The capacity of the garage supply or submain
- The existing protective devices
- The charger load
- Cable sizing and installation method
- Earthing arrangement
- RCD / RCBO requirements
- Surge protection
- Any open-PEN protection required for the charging installation
If the existing garage board cannot accommodate those requirements properly, replacing or supplementing it with a purpose-built EV consumer unit may be preferable.
Can You Use a Small or Mini Consumer Unit for an EV Charger?
Yes. Where a separate board is needed for a single charging circuit, a large consumer unit is often unnecessary.
Compact EV consumer units and connection units are designed specifically for installations where only a small number of protective devices are required.
Depending on the configuration, a small EV board may incorporate:
- Main isolation
- An EV RCBO or MCB
- An SPD
- Open-PEN protection
- Space for additional control equipment
This makes compact boards particularly useful where the main consumer unit has no suitable spare capacity but a full replacement is not justified.
How to Choose a Dedicated EV Consumer Unit
If the installation does require a separate EV board, choose it around the charger and the electrical design rather than simply ordering the smallest enclosure available.
| Check | Why It Matters |
|---|---|
| Single-phase or three-phase | Determines the board and protective-device configuration |
| Charger current | Affects circuit and protective-device sizing |
| RCD / RCBO type | Must suit the charger's DC fault-current characteristics |
| SPD required | May make an integrated EV surge-protection board the cleaner option |
| PME / open-PEN arrangement | May require integrated or separate protection depending on the EVSE and installation |
| Indoor or outdoor location | Determines enclosure and environmental requirements |
Installer shortcut: If the existing consumer unit cannot accommodate the charger neatly, start with the protection the EVSE actually requires and choose a purpose-built EV board containing as much of that protection as possible.
EV Consumer Unit FAQs
Does an EV charger need its own consumer unit?
No. An EV charger normally needs its own dedicated circuit, but that circuit can sometimes be supplied from a suitable existing consumer unit. A separate board is used where the existing arrangement cannot accommodate the circuit appropriately or where a dedicated EV protection unit is the better design.
Does an EV charger need a separate consumer unit?
Not in every installation. If the existing consumer unit has suitable capacity, space and protection provision, it may be used. Otherwise, a separate EV consumer unit can provide a cleaner solution.
Do I need a new consumer unit for an EV charger?
Not automatically. The existing consumer unit should be assessed first. It may be possible to add the dedicated EV circuit to it, install a separate small EV board, or replace the main board if a wider upgrade is actually required.
Does an EV charger need a dedicated circuit?
Yes. The charging point should be supplied by its own dedicated electrical circuit rather than being added to an unrelated existing final circuit.
What is a dedicated EV consumer unit?
It is a separate consumer unit or protection enclosure used specifically for the EV charging circuit. Depending on the model, it can include isolation, RCBO or MCB protection, surge protection and other EV-specific protective equipment.
Can an EV charger be connected to my existing fuse board?
Potentially, provided the existing board and supply are suitable for the additional dedicated circuit and all required protection can be accommodated correctly.
Can an EV charger run from a garage consumer unit?
It can if the garage board, its supply and the complete circuit are correctly designed for the EV load. The available capacity and protective arrangements need to be checked rather than assuming an existing garage board is automatically suitable.
What size consumer unit do I need for an EV charger?
There is no single required number of ways. A compact EV connection unit may be enough for a simple charging circuit, while installations requiring additional SPD, PME protection or other equipment may need a larger enclosure.
Does a dedicated EV consumer unit need an SPD?
The need for surge protection depends on the requirements of the overall electrical installation. Where an SPD is required, choosing an EV consumer unit with integrated surge protection can simplify the installation.
Is a dedicated EV consumer unit better than using the main board?
Neither option is automatically better. If the main consumer unit can accommodate the EV circuit cleanly, using it may be perfectly appropriate. If doing so would create space, compatibility or protection problems, a separate EV board is often the cleaner solution.
So, Does Your EV Charger Need Its Own Consumer Unit?
Not necessarily.
The distinction is straightforward:
- An EV charger needs a dedicated circuit.
- That dedicated circuit does not automatically require a dedicated consumer unit.
If the existing consumer unit can safely accommodate the charging circuit and all of the required protective equipment, it may be used.
If it cannot, fitting a separate EV consumer unit gives the charger a clean, self-contained protection arrangement without unnecessarily replacing an otherwise suitable main board.
