If you are choosing an EV consumer unit for a charger install, one of the most common spec questions is whether the board also needs surge protection built in. In many cases, the answer is yes - but the real point is that the EV charger circuit must be covered by effective SPD protection, not necessarily that every EV board must include its own SPD if protection is already provided correctly elsewhere.
That is why plenty of buyers end up weighing two routes: a simpler EV board with no integrated SPD, or a pre-configured EV consumer unit with surge protection already built in. In practice, the second option is often cleaner, faster and easier to spec correctly.
For related products and protection options, browse our EV-Ready Consumer Units, Surge Protection, EV Surge Protection Boards and Type B RCDs ranges.
Quick Answer: In most modern EV charger installs, the charger circuit should be covered by surge protection. That can come from an SPD at the origin, in a board feeding the charger, or inside a dedicated EV consumer unit with SPD. So the real question is not “does the EV board always need SPD inside it?” but “is the EV circuit properly protected against transient overvoltages?” In many jobs, choosing an EV board with built-in SPD is the simplest and cleanest route.
| Install Scenario | Likely Direction | Why |
|---|---|---|
| No SPD already protecting the EV circuit | Use an EV consumer unit with SPD | The charger circuit still needs effective surge protection |
| SPD already installed at the origin and covering the charger circuit properly | A non-SPD EV board may be acceptable | The EV circuit may already be protected upstream |
| Installer wants a self-contained EV board solution | Choose an EV board with integrated SPD | Cleaner spec, faster install, less guesswork |
🧭 Jump to:
The Quick Answer
- EV charger circuits should usually be covered by surge protection.
- That protection can be at the main consumer unit, in a board feeding the charger, or inside a dedicated EV consumer unit with SPD.
- If the EV circuit is not already protected upstream, choosing an EV board with built-in SPD is often the most practical answer.
- Integrated SPD boards are popular because they reduce spec confusion and make the charger circuit protection more obvious.
Related reads: What Surge Protection Does an EV Charger Install Need? · Do EV Chargers Need Surge Protection? · What Is an EV Consumer Unit?
Why Surge Protection Matters on EV Charger Circuits
EV chargers contain sensitive electronics, communication components and control hardware that can be affected by transient overvoltages. Those surges can come from lightning-related events, switching activity and wider supply disturbances, which is why SPD protection is now a normal part of modern board design.
That does not mean every charger has to have a separate little SPD beside it regardless of what is already in the installation. It means the charger circuit must be protected properly somewhere in the system.
This is also why EV installers often prefer a pre-configured EV board with SPD built in. It removes the question of whether the charger is actually covered or whether someone is making an assumption about upstream protection that has never been checked.
Does the EV Consumer Unit Itself Need SPD?
Not always. The key question is whether the EV charger circuit is already protected by an SPD elsewhere. If the main consumer unit or upstream board already provides effective surge protection for that circuit, a separate EV board without SPD may still be acceptable.
But on many real-world jobs, especially where the EV charger is getting a dedicated board, it is cleaner and safer from a spec point of view to use an EV consumer unit with SPD built in. That way, the charger protection is self-contained and obvious.
So the answer is not “yes, always” or “no, never”. It is more practical than that: if the EV circuit is not already protected properly, add SPD in the EV board.
When an EV Consumer Unit With SPD Makes the Most Sense
Built-in SPD usually makes the most sense when:
- The EV charger is on a dedicated new board
- The existing installation does not already protect the charger circuit properly
- You want a simpler, self-contained compliance path
- The job is outdoor, detached or otherwise more exposed
- You want to avoid assumptions about whether upstream SPD is present or suitable
This is also where pre-configured EV boards really earn their keep. Instead of piecing protection together on site, you start with a unit that already combines isolation, circuit protection and surge protection in one enclosure.
Installer’s Pick: If you want a self-contained EV board with integrated SPD, the WMRC32BSP, WMRC40BSP and WPEVCU32BSP are strong options depending on board format and install environment.
When Upstream SPD May Already Be Enough
If the installation already has a correctly placed SPD protecting the charger circuit, you may not need another one inside the dedicated EV board. That is why some installs use a simpler EV connection unit or RCBO enclosure when the main board already covers the surge protection requirement.
The problem is that this is exactly where sloppy assumptions creep in. Installers sometimes assume “there is an SPD somewhere on site” and treat that as the same thing as “the EV circuit is definitely protected properly.” Those are not always the same thing.
That is why built-in SPD still wins so often in practice. It gives you a cleaner answer with less room for doubt.
Common EV Consumer Unit Setups and What They Usually Need
| Setup | Board Direction | SPD Direction |
|---|---|---|
| Dedicated domestic EV board with no proven upstream SPD | EV board with integrated SPD | Built-in SPD is usually the cleanest route |
| Main board already protects the EV circuit correctly | Standard EV board may be acceptable | Upstream SPD may already cover it |

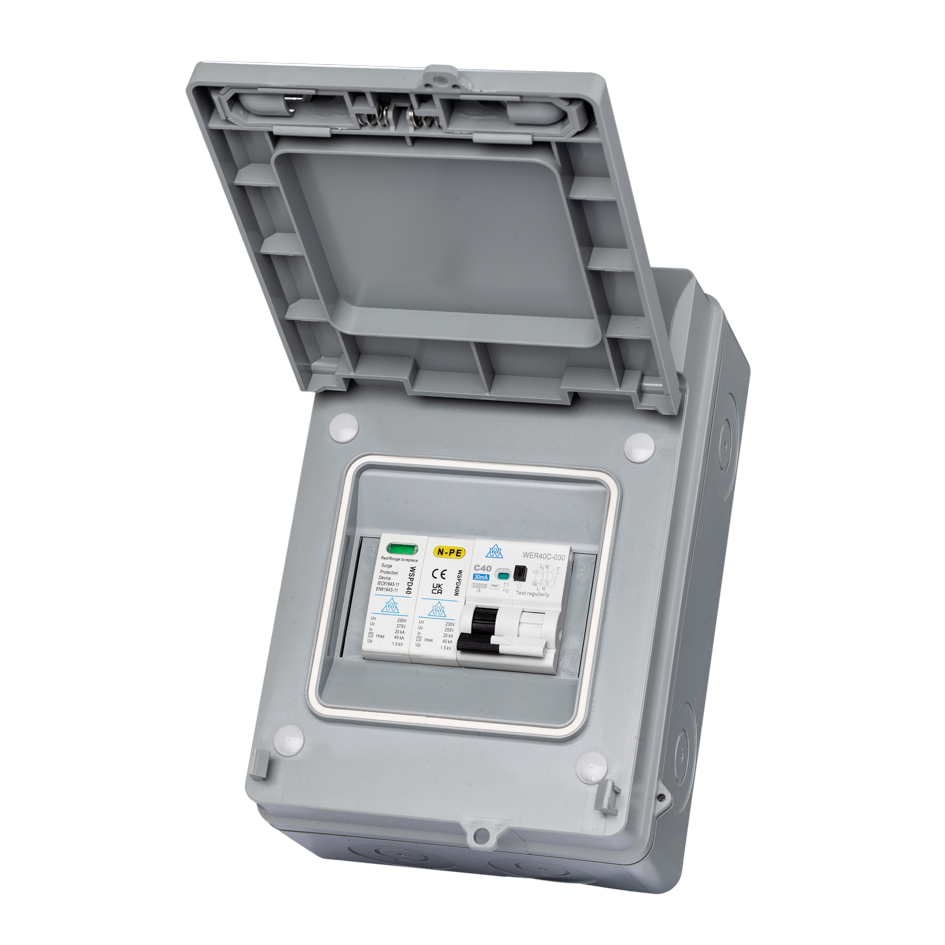

| Outdoor / IP65 EV charger install | Weatherproof EV board with SPD | Often the most practical all-in-one option |
Common Mistakes to Avoid
- Assuming the EV charger does not need SPD because the board is small – size has nothing to do with the surge protection requirement.
- Assuming built-in charger electronics replace supply-side SPD protection – they do not remove the need to consider proper SPD coverage.
- Assuming an upstream SPD definitely covers the EV circuit without checking – this is one of the easiest mistakes on site.
- Choosing the EV board before deciding how SPD protection is being handled – that gets the order backwards.
- Forgetting exposed or outdoor installs often benefit from a cleaner all-in-one board choice.
Regulation Reminder: The important point is that the EV charger circuit is covered by effective surge protection. That may be at the origin, in a board feeding the charger, or in the dedicated EV unit itself. Built-in SPD is often the easiest way to make that protection clear and self-contained.
Products & Categories That Fit the Job
- EV Boards With SPD: WMRC32BSP · WMRC40CSP · WEVCU32BSP
- IP65 EV Units With SPD: WPEVCU32BSP · WPEVCU40CSP · WPRC32BSP
- Category Hubs: EV-Ready Consumer Units · Surge Protection · EV Surge Protection Boards
FAQs
Do all EV consumer units need SPD?
No. The key requirement is that the EV charger circuit is protected by an SPD somewhere appropriate. That could be inside the EV board or elsewhere upstream if it protects the circuit properly.
Is it better to buy an EV consumer unit with SPD built in?
Often yes, because it gives you a cleaner, self-contained protection setup and reduces the risk of assuming the charger is already protected by something upstream.
Can I rely on the main consumer unit SPD instead?
Potentially, yes, but only if that SPD is correctly protecting the EV charger circuit. This should be checked rather than assumed.
Do outdoor EV charger installs benefit from boards with SPD?
In many cases, yes. Weatherproof EV boards with integrated SPD are often a tidy and practical option for outdoor charger installs.
Does built-in charger electronics remove the need for SPD?
No. The charger circuit still needs proper consideration for surge protection on the supply side.
Final Word
In most modern EV charger installs, the real goal is simple: make sure the EV circuit is covered by effective surge protection. That does not always mean the SPD has to be inside the EV consumer unit, but in many jobs that is still the easiest and clearest way to do it.
If the charger is already protected upstream, a simpler board may be fine. If it is not, an EV consumer unit with SPD is usually the cleaner answer.
