Do EV Chargers Need Surge Protection?

Does an EV Charger Need Surge Protection Under BS 7671?

BS 7671 does not contain a separate rule stating that every EV charger must have its own dedicated SPD.

Instead, the general requirements of Section 443 apply to the installation.

Surge protection must be provided where the consequences of a transient overvoltage could result in:

• Serious injury to, or loss of, human life
• Significant financial or data loss

In other cases, surge protection is still required unless the installation owner declares that the potential loss or damage is tolerable and accepts the risk of equipment damage and consequential loss.

Because an EV charging installation can include an expensive charger, vehicle electronics, communications modules, load-management equipment and connected smart systems, fitting an SPD will normally be the practical design choice.

Related guide: Is Surge Protection Mandatory Under the 18th Edition?

Why Is Surge Protection Important for EV Chargers?

An SPD limits transient overvoltages and diverts surge current away from the installation and connected equipment.

Transient overvoltages can originate from:

• Indirect lightning activity
• Supply-network disturbances
• Switching of motors and transformers
• Operation of protective devices
• Equipment switching within the installation

An EV charging installation can contain:

• Power-conversion electronics
• Contactors and switching equipment
• Communications and Wi-Fi modules
• Load-balancing controls
• Energy meters
• PME or open-PEN monitoring equipment
• Links to solar PV, batteries or energy-management systems

A damaging surge may cause immediate failure, intermittent faults or degradation that only becomes apparent later.

The potential loss is not limited to the wall-mounted charger. The vehicle, associated controls and other equipment connected to the installation may also need to be considered.

Is the SPD in the Main Consumer Unit Enough for an EV Charger?

It may be.

A suitably selected and installed SPD at the origin can provide protection for the wider installation, including an EV charging circuit.

Whether that protection is sufficient depends on:

• The type and performance of the existing SPD
• The supply and earthing arrangement
• The distance between the SPD and charger
• The route and length of the EV circuit
• The charger’s rated impulse voltage
• Any sub-distribution boards
• The presence of overhead lines or a lightning protection system
• Other conductive services entering the installation
• The SPD manufacturer’s coordination requirements

A separate EV SPD should not be added automatically where suitable protection already exists at the origin.

Equally, the existence of a main SPD should not be assumed to provide effective protection at every remote load without checking the circuit length and protection level.

Does the 10-Metre Rule Apply to EV Charger Surge Protection?

Where sensitive equipment is more than 10 metres of cable from the upstream SPD, supplementary protection may be needed closer to the equipment.

The purpose is to account for the additional voltage that can develop along the cable during a surge and to ensure the voltage at the equipment remains within an acceptable protection level.

For an EV installation, this may apply where:

• The charger is mounted a significant distance from the main consumer unit.
• The charger is supplied from a detached garage or outbuilding.
• A long external cable run feeds the charging point.
• The upstream SPD protection level is not sufficient at the charger terminals.
• The charger manufacturer requires local surge protection.

This does not mean every charger beyond 10 metres automatically requires the same local SPD arrangement.

The installer should consider the effective voltage protection level, cable route, equipment impulse withstand and manufacturer’s coordination data.

Where supplementary protection is needed, a Type 2 SPD is commonly installed at the downstream distribution board or dedicated EV unit. A Type 3 device may be used close to sensitive equipment only as part of a coordinated arrangement with upstream protection.

Do EV Chargers Have Built-In Surge Protection?

Some EV chargers include internal components intended to protect their electronics against limited transient overvoltages.

That does not automatically mean the charger contains an installation-level SPD complying with the required product standard or that the wider circuit is protected.

Check the charger documentation for:

• Whether an SPD is genuinely incorporated
• The SPD classification or type
• The applicable product standard
• The declared voltage protection level
• The nominal and maximum discharge current
• Any required upstream SPD
• Any external overcurrent protection requirement
• Replacement or end-of-life indication

Terms such as “surge resistant”, “overvoltage protected” or “electronic protection included” do not necessarily confirm that a coordinated Type 2 SPD is installed.

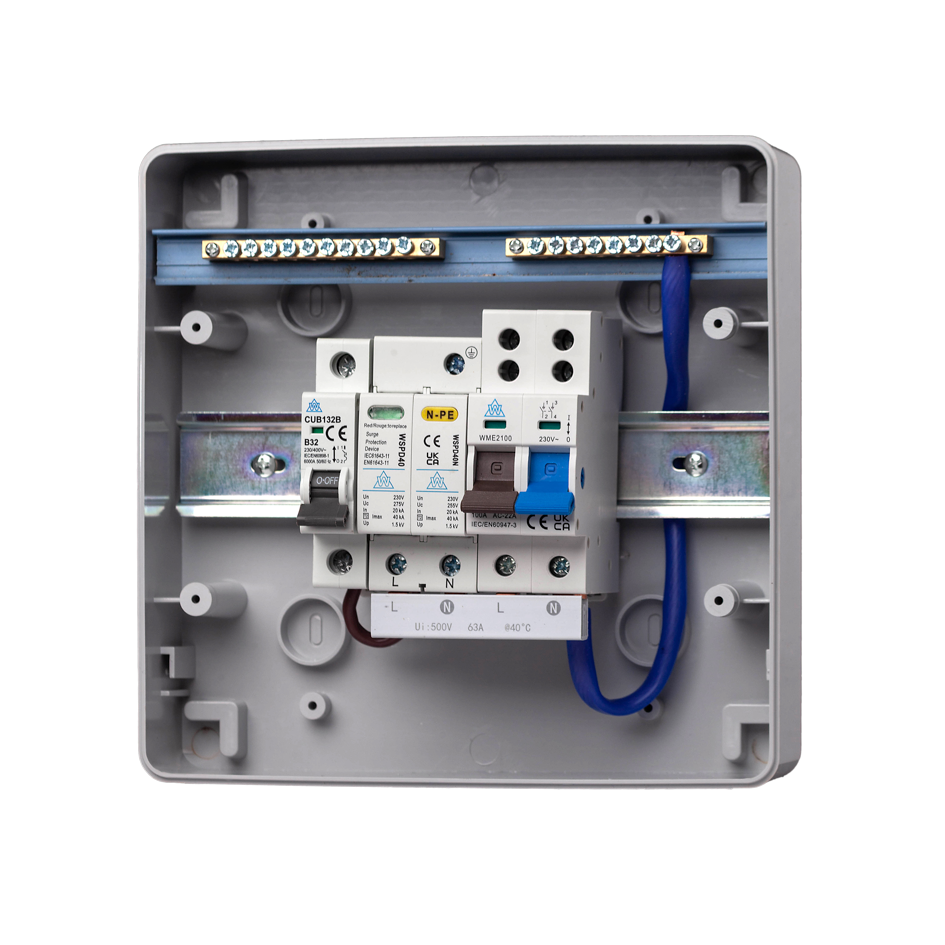

When Is a Dedicated EV Consumer Unit With SPD Useful?

A dedicated EV protection unit can be useful where the charger requires a clearly separated circuit or where the existing consumer unit cannot accommodate the required devices.

Potential reasons include:

• No suitable spare ways in the existing consumer unit
• No existing surge protection at the origin
• A long circuit requiring supplementary local protection
• A remote garage or outbuilding supply
• A need to combine the SPD with an EV RCBO or MCB
• A requirement for PME fault detection or load management
• An external installation requiring an appropriate IP-rated enclosure
• A three-phase charging circuit requiring a matched assembly

A pre-built EV board can combine several functions in one enclosure, but the installer must still verify:

• SPD type and system compatibility
• Overcurrent protection for the SPD
• RCBO or RCD characteristics
• Current rating and trip curve
• PME protection where applicable
• Enclosure and assembly standards
• Coordination with upstream devices

A dedicated EV board is a practical packaging option. It is not automatically required or inherently more compliant than a correctly designed arrangement within the main consumer unit.

👉 Browse EV surge protection boards and EV consumer units.

What Type of SPD Does an EV Charger Need?

A Type 2 SPD is commonly used at consumer units and distribution boards to protect against switching surges and indirect lightning-related transient overvoltages.

However, the correct SPD type depends on the complete installation.

Combined Type 1+2 or Type 2+3 devices are also available where the installation design requires both functions.

Detailed selection guide: What Surge Protection Does an EV Charger Need?

Do Three-Phase EV Chargers Need a Different SPD?

A three-phase charging circuit requires an SPD arrangement compatible with the supply system and conductors being protected.

The installer should confirm:

• Whether the system is TN-C-S, TN-S or TT
• Whether neutral is distributed
• The required SPD connection arrangement
• The maximum continuous operating voltage
• The voltage protection level
• The short-circuit current rating
• Required backup overcurrent protection
• Whether Type 1, Type 2 or combined protection is required

A four-pole SPD may be appropriate for some three-phase and neutral systems, but pole count alone does not confirm suitability.

The SPD must match the electrical system and manufacturer’s connection arrangement, particularly on TT installations where the mode of protection may differ.

👉 Compare three-phase surge protection devices.

Is Surge Protection the Same as PEN Fault Protection?

No. Surge protection and open-PEN protection address different hazards.

An EV installation may require consideration of both, but one does not replace the other.

A charger with built-in open-PEN protection does not necessarily contain an SPD. Likewise, an EV board with a Type 2 SPD does not automatically provide open-PEN protection.

Related guide: Do You Need PEN Fault Protection?

👉 Compare PME fault detection units.

How to Select Surge Protection for an EV Charger

1. Check the existing installation. Identify whether an SPD is already installed at the origin or upstream distribution board.
2. Confirm why protection is required. Assess the consequences of equipment damage, financial loss and data loss.
3. Identify the supply arrangement. Confirm the earthing system, number of phases and whether neutral is distributed.
4. Measure the circuit distance. Establish whether supplementary protection may be needed closer to the charger.
5. Check the charger documentation. Confirm its impulse withstand, built-in protection and external SPD requirements.
6. Select the SPD type. Choose Type 1, Type 2, Type 3 or a combined device according to the installation.
7. Check voltage characteristics. Confirm Uc and Up values suit the system and protected equipment.
8. Check discharge ratings. Select the required nominal and maximum discharge-current capability.
9. Confirm overcurrent protection. Follow the SPD manufacturer’s internal or external backup-protection instructions.
10. Keep connections short. Excessive conductor length can increase the effective voltage protection level.
11. Coordinate multiple SPDs. Confirm compatibility where protection is installed at the origin, sub-board and equipment.
12. Check status indication. Ensure the SPD condition can be inspected and replacement cartridges are available where applicable.

Browse EV Surge Protection

• EV Surge Protection Devices
• EV Surge Protection Boards
• EV Consumer Units
• All Surge Protection Devices
• Three-Phase Surge Protection Devices
• PME Fault Detection Units
• EV RCBOs

Select the final assembly according to the charger, supply, circuit length, existing SPD protection and any PME or residual-current requirements.

EV Charger Surge Protection FAQs

Do all EV chargers need surge protection?

There is no separate blanket rule applying only to EV chargers. However, surge protection is the normal design position under BS 7671, and an EV installation will commonly justify it because of the value and electronic nature of the connected equipment.

Do I need an SPD with my EV charger?

Usually, yes, unless suitable protection already covers the charging point or the installation owner accepts the relevant risk where omission is permitted. The complete installation must be assessed.

Does the EV charger need its own dedicated SPD?

Not always. An SPD at the main consumer unit may be sufficient where its protection remains effective at the charger. A supplementary device may be needed for longer circuits, remote boards or where the charger manufacturer requires local protection.

Is the main consumer-unit SPD enough?

It can be. Check the SPD specification, cable distance, charger impulse withstand, sub-distribution arrangement and manufacturer’s coordination guidance.

Do EV chargers have surge protection built in?

Some include internal overvoltage components, but this does not automatically confirm that they contain a coordinated installation-level SPD. Check the technical documentation.

What type of SPD is used for an EV charger?

A Type 2 SPD is commonly used at consumer units and EV distribution boards. Type 1 or combined Type 1+2 protection may be required where lightning-related conditions demand it.

Does the 10-metre rule apply to EV chargers?

Yes. Where the charger is more than 10 metres of cable from the upstream SPD, supplementary protection may need to be considered closer to the charger.

Does a detached garage need another SPD?

Potentially. The cable length, incoming services, existing upstream protection, garage board and equipment impulse withstand must be assessed. A detached location does not automatically create the same answer in every installation.

Does a three-phase EV charger need a four-pole SPD?

A four-pole arrangement may be appropriate for some three-phase and neutral systems, but the SPD must be matched to the supply and earthing arrangement rather than selected by pole count alone.

Does PEN fault protection replace an SPD?

No. PEN protection addresses an open combined neutral and earth conductor. An SPD addresses transient overvoltages. They perform different functions.

Does an SPD replace the EV RCBO?

No. An SPD does not provide overload, short-circuit or residual-current protection for the EV circuit.

Can an EV SPD be installed in a separate enclosure?

Yes, where the enclosure and complete assembly are suitable and the SPD is installed according to its manufacturer’s requirements.

Does the SPD need an MCB or fuse?

The SPD requires suitable short-circuit overcurrent protection, which may be internal or external. Follow the SPD manufacturer’s instructions for the required device and rating.

Should surge protection be fitted before or after the EV RCBO?

The arrangement depends on the board design, earthing system, continuity requirements and manufacturer’s diagrams. Use the approved SPD connection arrangement rather than applying one universal layout.

Should You Fit Surge Protection for an EV Charger?

For most new EV charging installations, fitting surge protection will be the practical and defensible design choice.

The installer should not automatically assume that:

• Every charger needs a separate SPD.
• The main consumer-unit SPD is always sufficient.
• Built-in charger protection replaces installation-level protection.
• A dedicated EV board is mandatory.
• PME protection and surge protection perform the same function.

Confirm:

• The consequences of transient overvoltage
• Existing protection at the origin
• The distance to the charger
• The charger manufacturer’s requirements
• The supply and earthing arrangement
• The correct SPD type and voltage characteristics
• Backup overcurrent protection
• Coordination with downstream SPDs
• Any separate PEN, RCD and load-management requirements
