In most new UK electrical installations, surge protection is now treated as the default rather than an optional extra. Under the 18th Edition Wiring Regulations, including Amendment 3, SPDs are required in many domestic, commercial and industrial scenarios unless the installation falls within a valid exemption or documented design decision.
Quick Navigation:
Why the 18th Edition Made SPDs Mandatory
The 18th Edition recognised the growing risk of voltage surges in modern electrical systems. Sensitive kit — from EV chargers to servers — can be damaged in milliseconds. That’s why Section 443 sets out clear rules on when SPDs must be installed.
- To prevent injury or risk to life
- To protect essential public services
- To safeguard cultural heritage
- To stop costly disruption to commercial or industrial activity
- To protect sites with large numbers of people
👉 In practice, this means almost every commercial, industrial, and public building requires surge protection as standard.
Do I Need Surge Protection in Domestic Installs?
Domestic properties are treated slightly differently, but the default expectation is still to fit surge protection. The exemption is narrow and becoming less relevant as homes become more technology-heavy.
- Single dwellings: Exempt only if the value of the installation and equipment doesn’t justify SPD costs.
- Modern homes: With EV chargers, heat pumps, PV inverters and smart systems, most now justify SPDs.
- Inspection risk: If surge protection is required for the installation and no valid basis exists for omission, the absence of an SPD may be recorded as non-compliant during inspection.
Check our Surge Protection Devices for options suited to residential installs.
Where Is Surge Protection Required?
Placement is just as important as choosing the right SPD. The regulations set out clear rules on where protection must be installed.
- At the origin of the installation (consumer unit or main distribution board)
- On new circuits feeding sensitive equipment such as IT, HVAC, or medical systems
- Within 10 metres of sensitive loads — the “10 m rule” in Section 534
- Inside sub-boards if supplementary protection is needed for localised equipment
👉 Browse our Three-Phase Boards & Accessories pre-fitted with SPDs for fast compliance.
Types of Surge Protection in the 18th Edition
The regs divide SPDs into three types, each designed for different scenarios. Knowing the difference is essential to get installs right first time.
- Type 1 SPD: Handles direct lightning strikes at the origin of the installation.
- Type 2 SPD: The default choice for most distribution boards — protects against indirect lightning and switching surges.
- Type 3 SPD: Local point-of-use protection for sensitive devices, installed in addition to Type 1 or 2.

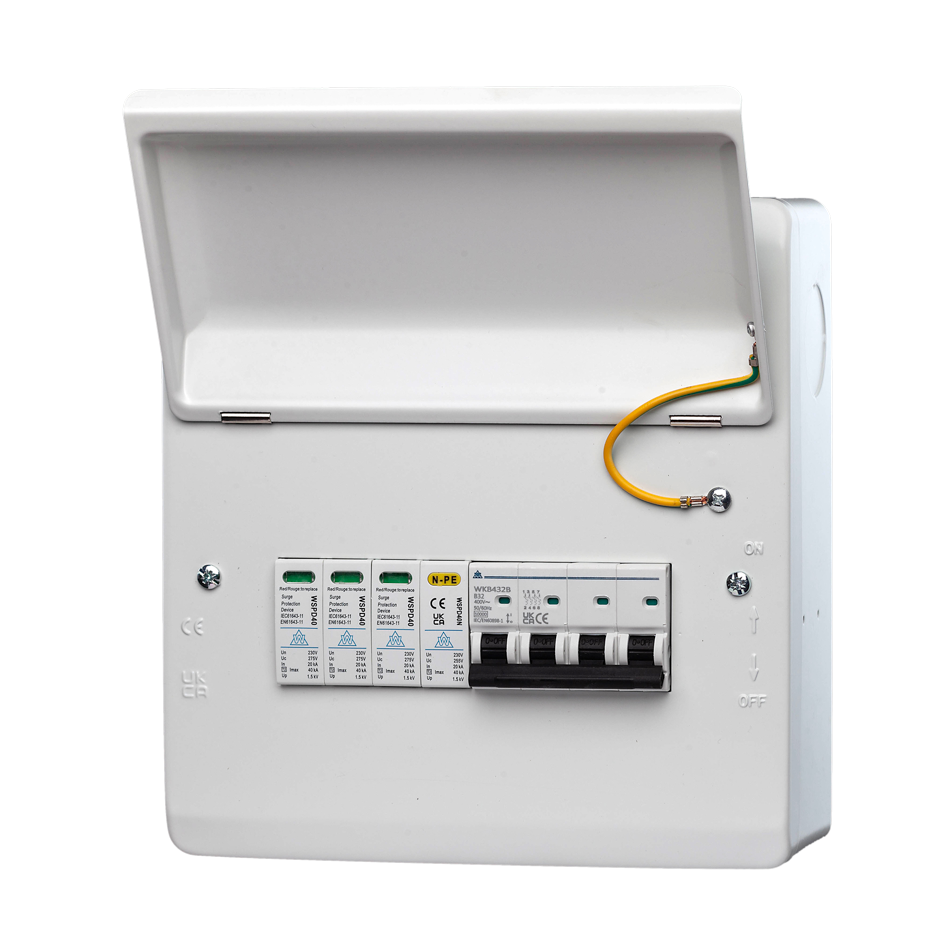

Our 3-Phase SPD Complete with MCB is a ready-to-fit Type 2 unit suited to modern 3-phase installations where surge protection is required.
Is Surge Protection a Legal Requirement in the UK?
Surge protection requirements in the UK are governed by BS 7671, which is the recognised standard for electrical installation work. In practice, that means SPDs are treated as a compliance requirement where the installation falls within the scope of Section 443 and no valid reason exists to omit them.
For most modern installs, especially where valuable electronic equipment is present, surge protection is now the normal design position rather than an optional extra.
FAQs
Here are quick answers to the most common questions contractors ask about surge protection under the 18th Edition.
Is SPD a legal requirement in the UK?
In practice, yes for many installations. BS 7671 treats surge protection as a compliance requirement where the installation falls within the scope of Section 443 and there is no valid basis for omission.
Does no SPD fail an EICR?
It can. If surge protection is required for the installation under BS 7671 and no valid justification exists for omitting it, the lack of an SPD may be recorded as non-compliant. The outcome depends on the age, design basis and condition of the installation being inspected.
When did SPD become mandatory in the UK?
Surge protection became a major compliance requirement with the 18th Edition in 2019, with the current framework now sitting under later updates including Amendment 3, issued on 31 July 2024.
Do I need SPD on a 3-phase board?
Yes. Unless you can prove exemption by risk assessment, every new 3-phase install requires surge protection at the origin.
What is the 10 m rule for SPD?
Sensitive equipment more than 10 metres away from an upstream SPD may need its own supplementary protection.
Are SPDs mandatory in domestic properties?
In many modern domestic installs, fitting an SPD is the expected approach. Whether omission is acceptable depends on the installation type, the equipment being protected and the basis of design.
Is surge protection required in commercial buildings?
In most commercial settings, the answer is yes in practice. The consequences of transient overvoltage, including equipment damage and business disruption, usually make SPD protection the sensible and compliant choice.
What does SPD mean in electrical terms?
SPD stands for surge protective device. It is designed to limit transient overvoltages and divert surge current away from the installation and connected equipment.
