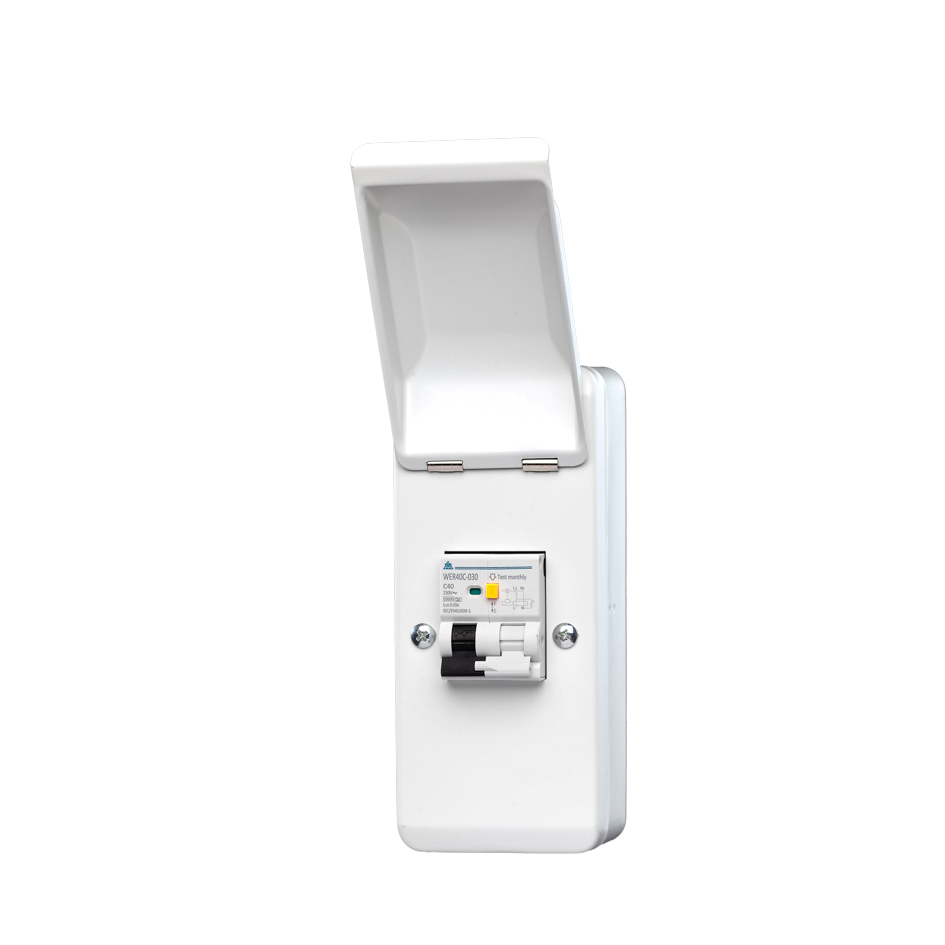

What RCBO Do You Need for an EV Charger?
Choosing an RCBO for an EV charger involves more than picking a 32A or 40A breaker. You need to check the charger’s current demand, its DC residual-current protection, the required RCD type, the overcurrent curve and whether the protective device must disconnect all live conductors.
For most installations, the correct specification starts with the EV charger manufacturer’s instructions. A typical 7kW domestic charger may use a 32A or 40A protective device, but the final RCBO selection must suit the charger and the circuit rather than being chosen from charger power alone.
Quick answer: For many single-phase EV charger installations, installers use a 30mA Type A RCBO where the charger provides suitable DC residual-current detection. If the EVSE does not provide the required DC fault-current protection, Type B RCD protection is required.
The overcurrent rating may commonly be 32A or 40A for a 7kW-class charger, while the B or C curve must be selected from the charger characteristics, circuit design and manufacturer requirements.
👉 Compare our dedicated EV RCBOs, or browse EV consumer units and protection kits.
| Question | Typical Direction |
|---|---|
| Type A or Type B? | Type A where suitable DC fault-current protection is provided; Type B where it is not |
| 32A or 40A? | Follow charger maximum current, cable design and manufacturer instructions |
| B or C curve? | Match the charger’s inrush characteristics and required circuit performance |
| Single or double pole? | The required RCD protection must disconnect all live conductors |
Jump To:
Does an EV Charger Need an RCBO?
An EV charging point requires appropriate residual-current and overcurrent protection, but that does not always mean a separate upstream RCBO is mandatory in every installation.
The charging point requires individual RCD protection meeting the applicable EV charging requirements. Depending on the equipment, that protection may be:
- Provided by a suitable RCBO upstream
- Provided by an RCCB combined with separate overcurrent protection
- Integrated within the EV charging equipment where the built-in RCD meets the required product standard and protection requirements
The final circuit still requires appropriate overcurrent protection regardless of where the residual-current protection is provided.
For many domestic installations, a dedicated RCBO is attractive because it combines both functions and isolates the EV circuit from faults elsewhere in the installation.
Important: Do not assume that the words “built-in RCD” on an EV charger automatically mean no upstream residual-current protection needs to be considered. Check exactly what protective function the charger provides and which product standard it complies with.
Type A vs Type B RCBO Protection for EV Chargers
The correct residual-current type depends largely on how the charger handles DC residual fault current.
Type A Protection
Type A protection is commonly used where the EV charging equipment provides suitable DC residual-current detection.
This arrangement can typically use:
- A Type A RCD or RCBO
- Combined with the charger’s appropriate RDC-DD / DC fault-current protection
Always verify the EVSE manufacturer’s specification rather than assuming that every modern charger contains the required DC protection.
👉 Browse Type A RCBOs and EV RCBOs.
Type B Protection
Where suitable protection against DC residual current is not provided by the charging equipment, Type B residual-current protection is required.
Type B devices are capable of responding to smooth DC residual current as well as the residual-current waveforms covered by Type A.
This does not mean every EV charger needs Type B. It means Type B becomes necessary where the charger does not provide the alternative DC fault-current protection required for the Type A or Type F route.
👉 Where Type B is required, compare Type B RCDs.
32A or 40A RCBO for an EV Charger?
This is one of the most common EV RCBO questions, particularly with 7kW-class domestic chargers.
You should not choose the protective device solely from the charger’s advertised kW rating.
Check:
- Maximum charger current
- Manufacturer’s recommended protective-device rating
- Cable current-carrying capacity
- Installation method
- Ambient temperature
- Grouping and correction factors
- Voltage drop
- Load-management settings
32A RCBO for an EV Charger
A charger designed to draw a maximum of around 32A may be specified with a 32A protective device where the manufacturer and circuit design permit it.
That makes searches for a 32A RCBO for EV chargers entirely valid — but you still need the correct RCD type and trip curve.
👉 Compare 32A RCBOs.
40A RCBO for an EV Charger
Some 7kW-class chargers and circuit designs specify a 40A protective device instead.
A 40A RCBO should only be used where:
- The charger manufacturer permits or specifies it
- The cable is adequately rated
- The complete circuit design supports the higher protective-device rating
Do not simply replace a 32A RCBO with 40A to prevent tripping. If a correctly specified device is operating unexpectedly, establish the cause first.
B Curve or C Curve RCBO for an EV Charger?
The B or C designation relates to the overcurrent trip characteristic, not the RCD Type A or Type B residual-current characteristic.
| RCBO Curve | Instantaneous Characteristic | EV Selection |
|---|---|---|
| B Curve | Approximately 3–5 × rated current | Suitable where charger characteristics and circuit conditions support B curve |
| C Curve | Approximately 5–10 × rated current | Used where higher inrush warrants it and the circuit still meets required fault-protection conditions |
Do not automatically assume:
- Domestic EV charger = B curve
- Commercial charger = C curve
- Long cable = C curve
- Nuisance tripping = change to C curve
The correct curve depends on the charger’s characteristics and the complete circuit design.
Changing from B to C curve also changes the current required for instantaneous operation, so the circuit’s earth fault loop impedance and disconnection performance must still be checked.
Does an EV Charger Need a Double-Pole RCBO?
The residual-current protection associated with the EV charging point must disconnect all live conductors.
On a single-phase installation, that means both:
- Line
- Neutral
This can be achieved using suitable protective devices designed to provide the required switching arrangement.
Do not assume that every product marketed as a “single-module RCBO” provides exactly the same switching function. Some devices switch line and neutral, while others may provide overcurrent protection in the line conductor with a switched neutral arrangement.
Check the device specification and the EV charger manufacturer’s installation requirements before selection.
Do EV Chargers Need a Bidirectional RCBO?
Not every EV charger automatically needs a bidirectional RCBO.
A normal unidirectional EV charging installation consumes electricity from the fixed installation and supplies it to the vehicle. Simply installing an EV charger does not by itself mean the protective device will experience power flow in both directions.
Bidirectional protective-device selection becomes particularly important where the installation is capable of exporting power back from the vehicle, such as a vehicle-to-grid or other bidirectional charging arrangement.
Where power can genuinely flow in either direction, the protective device must be suitable for that arrangement.
How do you know whether an RCBO is bidirectional?
Check the manufacturer’s data and device markings.
Protective devices that require a defined supply and load orientation may be marked with:
- LINE / LOAD
- IN / OUT
- Directional arrows
- Specific terminal instructions
Do not reverse-connect a directional RCBO simply because the terminals physically accept the conductors.
Future-proofing point: If an EV installation is being designed for future vehicle-to-grid or vehicle-to-home capability, protective-device directionality should be considered as part of the complete system design rather than assumed from a standard charger installation.
What RCBO Do You Need for a Three-Phase EV Charger?
Three-phase EV charging requires a protective arrangement matched to the charger’s phase configuration and rated current.
A typical 22kW AC charger draws approximately 32A per phase, but the protective device must still follow the exact charger specification and circuit design.
Check:
- Three-phase or three-phase + neutral configuration
- Maximum charging current
- Required RCD type
- DC fault-current protection
- Required pole configuration
- Overcurrent curve
- Breaking capacity
- Cable rating
- Manufacturer instructions
Where residual-current protection is required across a three-phase and neutral charging point, the arrangement must disconnect all live conductors.
👉 Browse EV RCBOs, 3-Phase RCDs and Three-Phase Boards & Accessories.
Do You Need a High-Immunity RCBO for an EV Charger?
Not automatically.
High-immunity RCBOs can be useful where the equipment and installation are susceptible to unwanted operation caused by transient or higher-frequency leakage characteristics.
They can therefore be a useful option for some EV installations, particularly where the charger manufacturer recommends enhanced immunity or where genuine unwanted RCD operation has been identified.
However, high-immunity protection should not be used to mask:
- Excessive earth leakage
- Damaged equipment
- Incorrect RCD selection
- Poor circuit design
- Faulty wiring
Use the charger and RCBO manufacturer data to establish whether high-immunity protection is appropriate.
👉 Compare High-Immunity RCBOs.
Check Upstream RCD Protection Too
The RCBO directly supplying the EV charger is not the only residual-current device that may matter.
EV charging equipment can produce DC residual currents, so any upstream RCD arrangement should also be reviewed for compatibility.
For example, an unsuitable upstream RCD should not be allowed to become ineffective because of the residual-current characteristics produced downstream.
Check:
- Existing main RCCBs
- Split-load consumer units
- Submain RCDs
- TT fault-protection devices
- RCD type hierarchy
- Selectivity where multiple RCDs are installed in series
This is another reason dedicated EV boards and RCBO-protected final circuits are often attractive: they make the protection arrangement easier to design and assess.
Does the EV RCBO Replace Surge Protection?
No.
An RCBO and an SPD perform different jobs.
- RCBO: overload, short-circuit and residual-current protection
- SPD: protection against transient overvoltage
Where surge protection is required for the EV installation, it must be provided separately or incorporated into a suitable EV protection unit.
👉 Browse EV Surge Protection Devices and EV Surge Protection Boards.
What About PME / PEN Fault Protection?
The RCBO does not replace the need to assess the earthing arrangement.
Where an EV charger is installed on a TN-C-S / PME supply, the installer must ensure that the charging installation has a compliant arrangement for the potential consequences of an open PEN conductor.
This protection may be:
- Integrated within the charger
- Provided by a separate PEN / PME fault detection unit
- Achieved using another compliant earthing arrangement
👉 Browse PME Fault Detection Units.
EV Charger RCBO Selection Checklist
Before ordering an RCBO for an EV charger, check:
- Exact charger make and model
- Single-phase or three-phase supply
- Maximum charging current
- Manufacturer’s required protective-device rating
- Whether suitable DC residual-current protection is built into the EVSE
- Type A, Type F or Type B RCD requirement
- Required residual operating current
- B, C or other overcurrent curve
- Cable current-carrying capacity
- Voltage drop
- Earth fault loop impedance and disconnection performance
- Breaking capacity
- All-live-conductor disconnection
- Directionality / bidirectional operation where relevant
- Upstream RCD compatibility
- Surge protection requirements
- PME / PEN fault protection where applicable
Installer shortcut: Don't order an “EV RCBO” from the amp rating alone.
Confirm:
Current rating + curve + RCD type + residual sensitivity + pole arrangement + charger DC protection.
EV Charger Circuit Protection
EV Charger RCBO FAQs
What RCBO do I need for an EV charger?
The RCBO must match the charger’s current demand, RCD requirements, DC fault-current protection, overcurrent curve and circuit design. Type A is commonly used where the charger provides suitable DC detection; otherwise Type B residual-current protection may be required.
What size RCBO do I need for a 7kW EV charger?
Many 7kW-class chargers operate at around 32A, but the protective device may be specified at 32A or 40A depending on the charger manufacturer and circuit design. Always use the manufacturer’s specified protective-device requirements.
Can I use a 32A RCBO for an EV charger?
Yes, where the charger’s maximum current, manufacturer requirements and cable design support a 32A protective device.
Can I use a 40A RCBO for an EV charger?
Yes, where the charger manufacturer specifies or permits 40A and the cable and complete circuit are designed for that protective-device rating.
Should an EV charger use B curve or C curve?
Either may be appropriate. The correct curve depends on the charger’s starting characteristics, manufacturer instructions and the circuit’s fault-protection requirements.
Is a C curve RCBO better for an EV charger?
Not automatically. C curve allows a higher instantaneous current before magnetic operation but also changes the circuit conditions needed for rapid fault disconnection. Use it where the charger and circuit design justify it.
Does an EV charger need a Type A RCBO?
Type A residual-current protection is commonly used where the charging equipment provides suitable protection against DC residual current. The RCD protection may be within the EVSE or elsewhere in the installation depending on the equipment and design.
When does an EV charger need Type B?
Where the EVSE does not provide the required protection against DC residual fault current, Type B residual-current protection is required.
Is a Type B RCBO the same as a B curve RCBO?
No. Type B describes residual-current detection characteristics. B curve describes the RCBO's overcurrent trip characteristic. They are completely separate specifications.
Does an EV charger need a double-pole RCBO?
The required residual-current protection must disconnect all live conductors. On a single-phase system this means the protective arrangement needs to provide disconnection of line and neutral.
Do EV chargers need a bidirectional RCBO?
Not for ordinary one-way charging simply because the load is an EV charger. Bidirectional protective-device suitability becomes relevant where the system can genuinely transfer energy in both directions, such as vehicle-to-grid or similar export-capable charging arrangements.
How can I tell if an RCBO is bidirectional?
Check the manufacturer’s technical data and markings. Devices that require a particular supply/load direction may be marked LINE, LOAD, IN, OUT or with directional arrows.
Do three-phase EV chargers need a 4-pole RCBO?
The protective arrangement must suit the charger’s three-phase configuration and disconnect all live conductors as required. For three-phase and neutral systems this may involve a four-pole protective arrangement.
Do EV chargers need high-immunity RCBOs?
Not universally. High-immunity devices can be useful where charger characteristics or manufacturer requirements make enhanced resistance to unwanted operation desirable.
Does an EV charger need its own circuit?
EV charging equipment is normally supplied by a dedicated final circuit with appropriate individual protection for the charging point.
Does the RCBO replace PEN fault protection?
No. RCBO protection and open-PEN protection perform different functions. PME installations still need the appropriate PEN fault protection or alternative compliant earthing arrangement.
Does an EV RCBO replace an SPD?
No. An RCBO protects against overcurrent and residual-current faults, while an SPD protects against transient overvoltages.
Which RCBO Should You Use for an EV Charger?
There is no universal “EV charger RCBO” specification that suits every installation.
For many domestic chargers, the finished specification may look something like:
32A or 40A + Type A + 30mA + appropriate B/C curve + suitable all-pole disconnection
But that combination is only correct where it matches the charger and circuit.
Before ordering, confirm:
- Charger current
- 32A vs 40A requirement
- Type A vs Type B protection
- Built-in DC fault-current detection
- B vs C curve
- Single or three-phase arrangement
- Required pole configuration
- Breaking capacity
- Directionality if bidirectional charging is involved
- Surge protection
- PME / PEN protection
Get those right and the RCBO becomes one properly coordinated part of the EV charging installation rather than simply “a 32A breaker for a charger”.
