Does an EV Charger Need a Separate Consumer Unit?
An EV charger normally needs its own dedicated circuit, but it does not automatically need a completely separate consumer unit.
If the existing consumer unit has the space, capacity and correct protective-device compatibility, the EV circuit may be supplied from the existing board. A dedicated EV consumer unit becomes useful where the existing installation cannot accommodate the required RCBO, RCD, surge protection, PME protection or load-management equipment.
Quick answer: An EV charger generally requires a dedicated final circuit, but not necessarily a separate consumer unit. A standalone EV board is commonly used where the existing consumer unit lacks spare ways, cannot accept the required protective devices, needs upgrading, or where a separate EV protection arrangement makes the installation cleaner and easier to maintain.
Whatever arrangement is used, the charger circuit still needs the correct overcurrent, residual-current, surge and earthing protection for the exact EVSE and supply.
👉 Compare our EV consumer units and kits, including compact boards, surge-protected units and PME-ready options.
Jump To:
Does an EV Charger Need a Separate Consumer Unit?
No. A separate EV consumer unit is not automatically required.
Mode 3 charging equipment is normally supplied by a dedicated circuit, but that circuit can potentially originate from the existing consumer unit where the board and installation are suitable.
Using the existing consumer unit may be practical where:
- There is a suitable spare way.
- The correct RCBO, RCD or circuit breaker is compatible with the board.
- The consumer unit is in suitable condition.
- The board has sufficient current capacity.
- The required surge protection can be accommodated.
- The EV circuit can be properly separated from unsuitable upstream RCD protection.
- The earthing and bonding arrangement is suitable.
A dedicated EV consumer unit becomes useful where:
- The main consumer unit is full.
- The existing board is old or unsuitable for the required EV protective devices.
- A standalone SPD or PME protection arrangement is needed.
- The charger needs specialist RCBO or RCD protection.
- The EV circuit is being supplied from a separate meter or distribution point.
- A garage or outbuilding has its own distribution arrangement.
- A three-phase charging circuit needs a dedicated board.
- Keeping the EV installation separate makes future maintenance or expansion easier.
Key point: The EV charger needs the correct dedicated circuit and protection. It does not automatically need a dedicated enclosure just because the circuit supplies an EV charger.
How Does an EV Charger Connect to a Consumer Unit?
A typical domestic Mode 3 charger is supplied from a dedicated final circuit originating at the main consumer unit or a separate EV distribution board.
A simplified arrangement may include:
Supply → Consumer Unit / EV Board → Protective Device → EV Cable → Charging Equipment
Depending on the installation, additional devices may include:
- RCBO or MCB
- RCCB
- Surge protective device
- Open-PEN / PME protection
- Main switch or isolator
- Load-management relay or CT monitoring
- Energy meter
The exact arrangement depends on the charging equipment and the manufacturer’s instructions.
Do not treat a generic EV consumer-unit wiring diagram as an installation design. Cable size, protective-device selection, earthing, isolation, load management and EVSE protection all need to be determined for the particular site.
Check the Supply Before Adding an EV Consumer Unit
An EV charger can represent a substantial additional load, particularly a typical single-phase 7 kW charger operating at around 32 A.
Before installing the circuit, assess:
- Existing maximum demand
- Main fuse rating
- Service cable and supply arrangement
- Meter and tails
- Existing large electrical loads
- Solar PV and battery systems
- Heat pumps or electric heating
- Whether load curtailment or dynamic load balancing will be used
- Whether the supply is looped
- DNO requirements
A 60 A main fuse does not automatically prevent installation of a 7 kW charger.
The installer may be able to use:
- Dynamic load management
- Load curtailment
- A reduced charging-current setting
- A supply upgrade where required
The correct approach comes from the maximum-demand assessment and DNO requirements rather than simply assuming every EV charger needs an 80 A or 100 A supply.
Do you need to notify the DNO?
EV charging installations require DNO notification.
Depending on the existing and proposed maximum demand, the DNO may need to assess the supply before installation rather than simply receiving notification afterwards.
Check the current Energy Networks Association and individual DNO requirements before work begins.
What RCD or RCBO Does an EV Consumer Unit Need?
For Mode 3 EV charging, the charging point requires individual residual-current protection with a rated residual operating current not exceeding 30 mA.
The RCD must also disconnect all live conductors.
The required RCD type depends on the charger’s DC residual-current protection.
| EVSE Protection | Typical RCD Arrangement |
|---|---|
| Suitable DC residual-current protection incorporated | Type A or Type F may be used where the arrangement satisfies the applicable requirements |
| No suitable DC residual-current protection incorporated | Type B RCD required |
Always check whether the EVSE’s claimed integrated RCD actually meets the required product standard. Some charger electronics provide residual-current detection without constituting a compliant integrated RCD for the full BS 7671 requirement.
Also check upstream protection. DC residual current from the charger can affect an unsuitable upstream RCD.
👉 Compare EV RCBOs, Type A RCBOs and Type B RCDs.
What Size RCBO Does a 7 kW EV Charger Need?
A typical 7 kW single-phase charger draws around 32 A, but this does not mean every 7 kW charger should automatically be protected by the same RCBO.
The protective device should be selected from:
- The charger manufacturer’s maximum protective-device rating
- Design current
- Cable size
- Installation method
- Ambient conditions
- Voltage drop
- B or C curve requirements
- Prospective fault current
- Maximum Zs
32 A and 40 A protective devices are both encountered on 7 kW EV circuits depending on the charger and design.
Follow the charger documentation rather than applying a universal “40 A RCBO” rule.
Does an EV Consumer Unit Need Surge Protection?
Surge protection should be assessed as part of the overall installation under Section 443 of BS 7671.
It is not correct to say that every new EV circuit automatically needs its own dedicated SPD.
An SPD may already be installed:
- At the origin of the installation
- Within the main consumer unit
- At an upstream distribution board
- Inside the dedicated EV consumer unit
Whether local protection at the EV board is required depends on:
- The existing SPD arrangement
- Distance to the charging equipment
- Voltage protection level
- Equipment impulse withstand
- Supply arrangement
- Manufacturer requirements
For most modern installations, providing effective surge protection will be the sensible design position because the charger and connected equipment contain valuable electronics.
👉 Browse EV surge protection devices and EV surge protection boards.
Does an EV Consumer Unit Need PEN Fault Protection?
Where an EV charging point is connected to a PME / TN-C-S earthing system, the risk associated with an open PEN conductor must be addressed by an acceptable protective method.
This may be provided:
- Within the charging equipment
- By a dedicated open-PEN or PME protection device
- Through another compliant earthing or protection arrangement
A dedicated EV consumer unit can incorporate PEN protection, but the fact that a board is labelled “EV consumer unit” does not mean it automatically contains it.
Likewise:
- An SPD does not provide PEN fault protection.
- An RCBO does not provide PEN fault protection.
- A PEN protection device does not replace the EV RCD.
👉 Compare PME fault detection units.
Can an EV Charger Be Connected to a Garage Consumer Unit?
Potentially, yes.
A garage or outbuilding consumer unit may supply an EV charging circuit where the complete distribution arrangement is suitable.
Check:
- Submain current capacity
- Voltage drop
- Maximum demand
- Fault-current and Zs requirements
- Existing RCD arrangement
- Earthing system
- PEN protection where PME is exported
- Surge protection
- Board and enclosure rating
Do not assume an existing garage board has enough capacity simply because it has a spare way.
The submain supplying the garage may have been designed only for lighting, sockets and small loads.

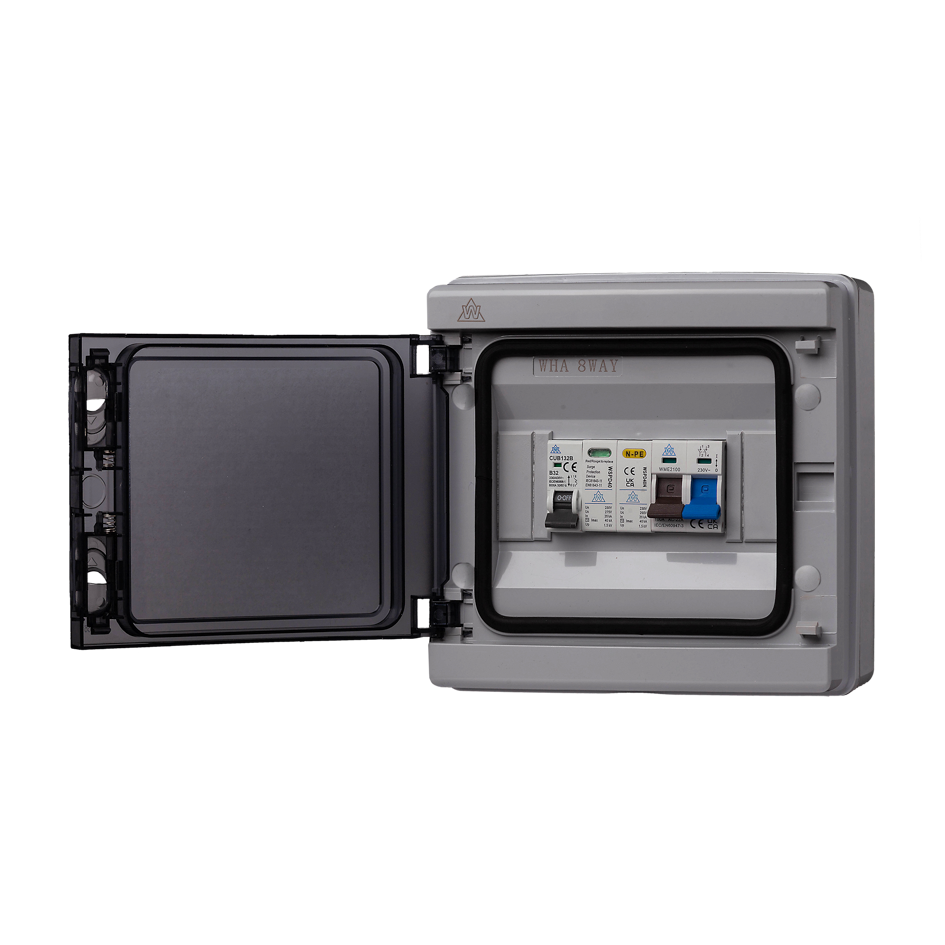

Can an EV Consumer Unit Be Installed Outside?
Yes, provided the complete assembly is suitable for the external environment.
External EV boards need to account for:
- Rain and moisture
- Condensation
- Temperature variation
- Direct sunlight and solar heating
- Pollution and coastal environments
- Mechanical impact
- Tampering
- Accessibility
- PME touch-voltage risk
The enclosure should have a suitable IP rating and be installed according to the manufacturer’s instructions, including appropriate cable glands, seals and fixing methods.
Do not assume an outdoor domestic consumer unit has to be metal.
The metallic consumer-unit requirement applying within domestic premises does not automatically extend to a consumer unit mounted externally. A suitably verified insulated enclosure may be appropriate.
External-board point: The complete assembly should be manufacturer-verified for its intended environment. An IP-rated empty enclosure filled with unrelated devices is not automatically a compliant consumer-unit assembly.
Can an EV Consumer Unit Go Inside the Meter Box?
Generally, the external meter cabinet should not be treated as spare space for customer consumer units or internal wiring.
Meter cabinets are intended for electricity-industry apparatus, and installing additional consumer-unit equipment inside can create access, thermal, safety and ownership problems.
Where space inside the property is unavailable, a separate external consumer unit installed adjacent to the meter cabinet may be a more appropriate arrangement, provided it is correctly designed for the environment.
What About a Three-Phase EV Consumer Unit?
Three-phase EV charging is common for higher-power 11 kW and 22 kW installations.
A three-phase EV board may need to accommodate:
- Three-phase overcurrent protection
- Four-pole switching where required
- Suitable Type A, F or B residual-current protection
- Three-phase surge protection
- PME / PEN protection appropriate to the system
- Load management
- Metering
The exact arrangement must match the EVSE manufacturer’s requirements and the site supply.
Do not simply scale up a domestic single-phase EV consumer unit by adding more poles.
👉 Browse three-phase boards and accessories.
Is There a Minimum Height for an EV Consumer Unit?
There is no single universal BS 7671 mounting-height figure that applies to every EV consumer unit.
The installation should instead consider:
- Accessibility
- Safe operation of protective devices
- Likelihood of impact
- Flood and standing-water risk
- Children and unauthorised access
- The enclosure manufacturer’s installation requirements
- Applicable Building Regulations and accessibility guidance
Do not confuse EV charger mounting-height guidance with consumer-unit mounting-height requirements. They are separate pieces of equipment with different considerations.
EV Consumer Unit Installation Checklist
- Identify the exact charger. Obtain the current manufacturer’s electrical installation instructions.
- Assess maximum demand. Include existing loads and any load-management system.
- Check the supply. Confirm main fuse, service arrangement, earthing and DNO requirements.
- Decide where the dedicated circuit originates. Existing consumer unit or separate EV board.
- Select the cable. Confirm current capacity, installation method and voltage drop.
- Select overcurrent protection. Match current rating, curve and breaking capacity.
- Select residual-current protection. Confirm Type A, Type F or Type B and DC fault-current arrangements.
- Confirm all-live-conductor disconnection. Check the switching arrangement.
- Assess surge protection. Review existing and local SPD requirements.
- Assess PME / PEN protection. Confirm how open-PEN risk is addressed.
- Check upstream RCDs. Prevent unsuitable RCD hierarchy or DC blinding.
- Verify Zs and fault protection. Confirm required disconnection performance.
- Check enclosure suitability. Especially for outdoor or exposed installations.
- Verify the assembly. Use manufacturer-approved boards and devices.
- Notify the DNO. Follow the current notification or prior-approval process.
- Inspect, test and certify. Complete the required verification before energisation.
Installer summary: The charger needs a correctly designed dedicated circuit. Whether that circuit needs its own EV consumer unit depends on the existing board, supply and protective-device requirements.
EV Consumer Units and Circuit Protection
- EV Consumer Units & Kits
- EV Surge Protection Boards
- EV Surge Protection Devices
- EV RCBOs
- Type A RCBOs
- Type B RCDs
- PME Fault Detection Units
- Consumer Units
- Three-Phase Boards & Accessories
Check each board against the exact charger, supply, current rating, RCD requirement, SPD arrangement and PME requirements before ordering.
EV Consumer Unit FAQs
Does an EV charger need a separate consumer unit?
No. It normally needs a dedicated circuit, but that circuit may originate from the existing consumer unit if the board has suitable capacity, space and compatible protective devices.
Do I need a new consumer unit for an EV charger?
Not necessarily. A new or separate board may be useful where the existing consumer unit is full, unsuitable or cannot accommodate the required protection.
Does an EV charger connect to the fuse box?
Typically, the dedicated EV circuit originates from a consumer unit or distribution board. The exact arrangement depends on the installation.
Can an EV charger connect to a garage consumer unit?
Yes, potentially, provided the garage submain, board, earthing and protective arrangement are capable of supplying the additional EV load.
What size RCBO do I need for a 7 kW EV charger?
Check the charger manufacturer’s requirements and circuit design. 32 A and 40 A devices are both encountered depending on the charger and installation.
Does an EV charger need a Type A RCBO?
Type A or Type F may be suitable where the EVSE provides appropriate DC residual-current protection. Otherwise Type B RCD protection is required.
Does an EV charger need a double-pole RCBO?
The required EV RCD protection must disconnect all live conductors. The exact protective-device arrangement should be selected accordingly.
Does an EV consumer unit need an SPD?
Not necessarily its own SPD if suitable upstream surge protection already covers the charger. The installation-level SPD arrangement and circuit distance need to be assessed.
Does an EV consumer unit need PEN fault protection?
Where a charging point is connected to a PME supply, open-PEN risk must be addressed by an acceptable method. The protection may be within the charger or provided separately.
Can an EV consumer unit be installed outdoors?
Yes, provided the complete assembly is suitable for the environmental conditions and installed to maintain its declared protection and ratings.
Does an outdoor EV consumer unit have to be metal?
No. The domestic metallic consumer-unit requirement applies within domestic premises and does not automatically require an external EV consumer unit to be metal.
Can an EV consumer unit go in the meter box?
Meter cabinets are intended for electricity-industry apparatus and should not generally be treated as spare space for customer consumer units. A separate adjacent enclosure may be more appropriate.
Can I install a 7 kW charger on a 60 A supply?
Potentially. Maximum demand and load management must be assessed. A 60 A service fuse does not automatically mean the supply must be upgraded.
Do I need DNO approval for an EV charger?
The DNO must be notified of EV charging installations. Depending on the existing and proposed maximum demand, prior assessment or approval may be required before installation.
What is an EV fuse board?
“EV fuse board”, “EV board” and “EV consumer unit” are commonly used to describe a distribution board dedicated to the EV charging circuit and its protective devices.
What is a mini consumer unit for an EV charger?
It is a compact dedicated board containing only the devices required for the EV circuit, such as an RCBO, SPD, isolator or PME protection depending on the design.
Do three-phase EV chargers need a special consumer unit?
They need a distribution arrangement suitable for the three-phase supply, protective devices and EVSE. A dedicated three-phase EV board may be the most practical way to provide this.
Do You Actually Need a Dedicated EV Consumer Unit?
Not always.
The key requirement is a correctly designed dedicated EV charging circuit.
Use the existing consumer unit where it can safely accommodate:
- The circuit load
- The required RCBO or RCD
- Surge protection
- PME protection where applicable
- The required device compatibility
Use a separate EV board where it provides a cleaner or necessary solution because the existing installation cannot accommodate those requirements.
Before installation, confirm:
- Maximum demand and supply capacity
- DNO requirements
- Dedicated circuit design
- Cable size and voltage drop
- RCD / RCBO type
- Overcurrent rating and curve
- Surge protection
- PME / PEN protection
- Upstream RCD hierarchy
- Outdoor enclosure suitability where applicable
- Testing and certification
👉 Compare our EV consumer units and kits, EV surge protection boards and PME protection units.
