Do You Need an Earth Rod with PME Fault Protection?
PME fault protection can remove the need for a separate earth electrode in many EV charging designs, but it does not make earth rods obsolete. The answer depends on the supply earthing arrangement, the charging equipment and which recognised protective measure the designer is using.
Quick answer: On a TN-C-S (PME) supply, a compliant open-PEN protective arrangement can allow an outdoor EV charging point to use the PME earthing terminal without a separate earth rod. If the charge point is arranged as TT, an earth electrode is still part of that design.
Do not assume that any product labelled “PME protection” removes the electrode requirement. Confirm its declared function, installation method and compatibility with the charger.
Compare verified PME and PEN fault detection equipment and EV protection kits.
Jump To:
Does Open-PEN Protection Replace an Earth Rod?
It can replace the need to create a separate TT electrode arrangement for a particular EV charging installation where the selected open-PEN protective measure complies with the applicable requirements. It does not “replace the earth” for the whole installation.
The device monitors supply conditions and disconnects the relevant live conductors when its operating criteria indicate an unsafe open-PEN condition. The protective measure must be assessed as a complete arrangement, not as a stand-alone box.
What Are the Main EV Earthing Options on a PME Supply?
| Approach | Earth Rod? | Key Design Point |
|---|---|---|
| Suitable open-PEN protection with PME connection | Usually no separate rod for that protective measure | Device and charger arrangement must meet the applicable requirements |
| Charging point arranged as TT | Yes | Separation from PME-connected metalwork and electrode performance must be designed and verified |
| Charging equipment with integrated protection | Depends on the declared function | Check the exact charger specification and installation instructions |
| Other recognised measure | Depends on the method | Designer must document how the open-PEN risk is controlled |
When Is an Earth Rod Still Needed?
- Where the EV charging point is intentionally arranged as a TT system.
- Where the selected equipment does not provide the required open-PEN protective function.
- Where the manufacturer, designer or network operator requires an electrode for the chosen arrangement.
- Where an electrode is required for another protective or functional purpose.
A TT electrode is not a casual fallback. Electrode resistance, separation, touch voltage, RCD protection, testing and ongoing verification all form part of the design.
What Does a PME Fault Detection Device Do?
A suitable device monitors defined voltage relationships or other supply conditions associated with an open PEN conductor. When the operating threshold and timing criteria are met, it operates a switching device to disconnect the protected EV supply as designed.
Standalone options include the IP65 PEN Fault Detection Unit with load balancing and the three-phase PME fault detection unit for multiple charge points.
What Open-PEN Protection Does Not Do
- It does not provide surge protection unless an SPD is included.
- It does not provide RCD or overcurrent protection unless those functions are included.
- It does not correct a damaged distributor PEN conductor.
- It does not prove that a charger with its own integrated protection is compatible with an additional device.
Important: Avoid blanket statements such as “PME protection means no rod”. Record the earthing arrangement and the specific protective measure used for the charging point.
Installer Checklist Before Omitting the Rod
- Confirm the supply is TN-C-S/PME and assess the intake arrangement.
- Check whether the charger already includes open-PEN protection.
- Verify that the selected external device is suitable for the phase arrangement and load.
- Confirm disconnection of the required live conductors.
- Coordinate RCD, overcurrent and surge protection separately.
- Follow the applicable BS 7671 edition and all manufacturer instructions.
Earth Rod and PME Protection FAQs
Do all EV chargers need an earth rod?
No. A compliant alternative open-PEN protective measure may be used on a PME supply.
Does an earth rod protect against a PEN fault?
A correctly designed TT arrangement avoids reliance on the PME terminal for the charge point, but the electrode and associated protective measures must be properly designed and tested.
Can I fit an external PEN device to any charger?
Not automatically. Check the charger and device instructions, including any interaction with integrated monitoring and contactors.
Is PME fault protection only for single phase?
No. Single-phase and three-phase solutions exist, but their monitoring methods and suitability differ.
Final Word
If the chosen open-PEN protective arrangement is compliant and correctly installed, a separate earth rod is often unnecessary for that EV charging point. If the design is TT, the electrode remains essential.
Need a verified protection route? Compare the PME fault detection range.

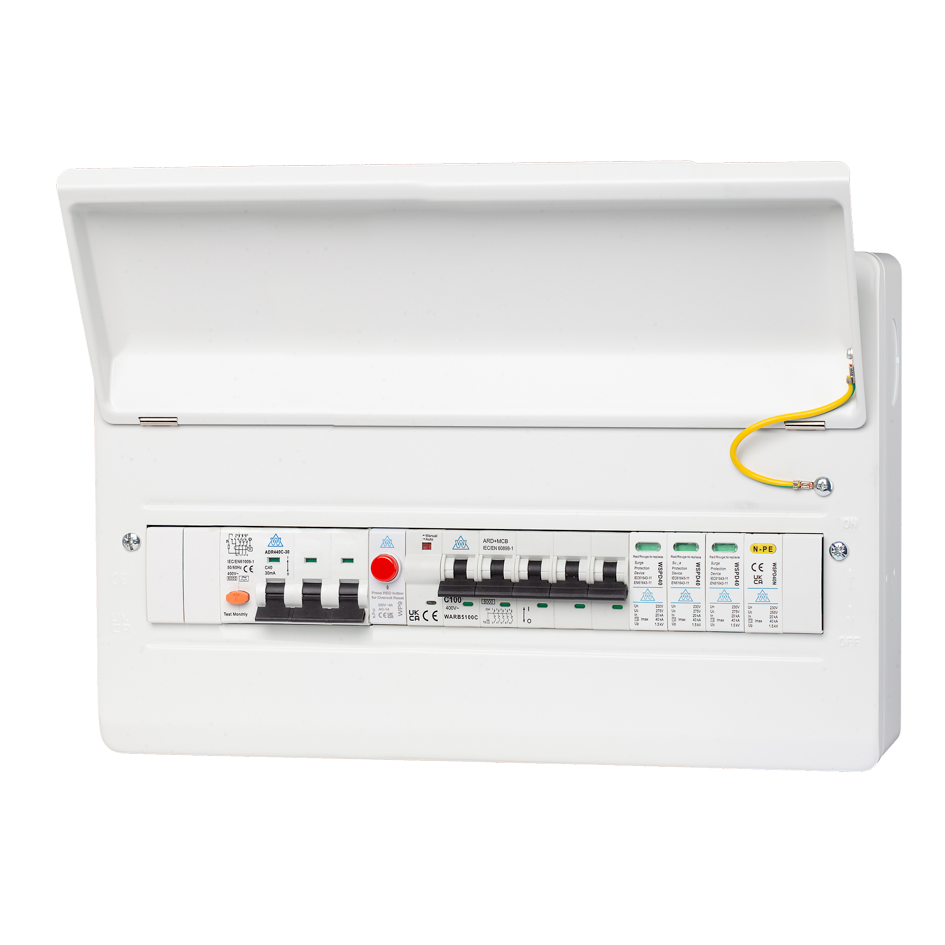

For pre-built EV arrangements, browse EV kits and protection boards.
