Where Should Surge Protection Be Installed on a 3-Phase System?
On a three-phase installation, surge protection normally starts at the origin — but that is only the first placement decision. Sub-distribution boards, cable length, lightning protection and sensitive equipment can all change the final SPD arrangement.
Quick answer: Fit the main three-phase SPD as close as practicable to the origin of the installation, normally within or next to the main distribution board in the position intended by the assembly manufacturer. Where protected equipment is more than 10 metres of conductor length from that SPD, assess whether an additional coordinated SPD is needed nearer the equipment.
The exact device type, connection arrangement and backup protection must follow the applicable edition of BS 7671, the board design and the SPD manufacturer's instructions.
Browse the three-phase protection range or view the 3 Phase Surge Protection unit in a metal enclosure.
Jump To:
Where Is a 3-Phase SPD Normally Installed?
The first SPD is normally installed at the origin of the installation, commonly in the main three-phase distribution board or in a suitable adjacent enclosure. This gives the downstream installation a common first stage of protection against transient overvoltages arriving on the supply.
Do not treat “at the origin” as permission to improvise the assembly. Confirm that the distribution-board manufacturer permits the arrangement, that the protective device and conductors are correctly selected, and that the SPD can be isolated or maintained as intended.
| Location | Typical Role | Design Check |
|---|---|---|
| Main distribution board | First stage of protection for the installation | Supply arrangement, SPD type, backup protection and assembly compatibility |
| Sub-distribution board | Additional coordinated protection downstream | Conductor distance, exposure and equipment sensitivity |
| Close to equipment | Fine protection for a particular load | Coordination with upstream Type 1 or Type 2 protection |
Should the SPD Go Before or After the Main Switch?
In many distribution-board arrangements the SPD is connected on the load side of the main switch, so it can be isolated with the board. That is not a universal rule. Some supply and lightning-protection arrangements require a different design.
The correct answer comes from the chosen SPD configuration, the assembly manufacturer's instructions and the required continuity of protection. Never move an SPD ahead of the main switch simply to make the wiring look shorter.
Do Three-Phase Sub-Boards Need Their Own SPD?
Not automatically, but they often need to be considered. If a downstream board or protected equipment is more than 10 metres of conductor length from the upstream SPD, oscillation and voltage effects can reduce the protection available at the far end. A coordinated additional SPD may therefore be required.
The 10-metre figure is a design trigger, not a blanket instruction to add an uncoordinated device to every board. Check the manufacturer's coordination data, the route, the equipment being protected and the consequences of failure.
Type 1, Type 2 or Type 3: Which Goes Where?
| SPD Type | Typical Position | What It Is For |
|---|---|---|
| Type 1 | At the origin where lightning-current protection is required | Handles partial lightning current |
| Type 2 | Origin and/or distribution boards | Limits switching and induced transient overvoltages |
| Type 3 | Close to sensitive equipment | Supplementary fine protection; not a substitute for upstream protection |
Combined Type 1+2 devices are also available. The presence of a lightning protection system, the supply arrangement and the risk assessment determine whether Type 1 capability is needed.
Does the Earthing Arrangement Change SPD Placement?
The earthing arrangement affects the SPD connection mode and the device selected. TN-C-S (PME), TN-S and TT systems are not interchangeable design cases. On TT systems in particular, the position of RCD protection and the selected SPD arrangement must be coordinated correctly.
A surge protective device does not provide open-PEN protection. Where an EV charging installation requires protection against an open PEN condition, specify a suitable protective measure separately. See What Is a PME Fault Detection Device?.
Why Short SPD Connections Matter
Every extra length of conductor adds inductive voltage during a surge. Keep the complete connection path as short and direct as practicable, avoid loops and follow the manufacturer's maximum lead-length guidance. Physical layout is therefore part of SPD performance, not just neatness.
Compliance reminder: Confirm the applicable BS 7671 requirements, the SPD manufacturer's instructions and the distribution-board manufacturer's declared compatibility. Mixing devices into an assembly without confirmation can invalidate its verified performance.
3-Phase SPD Placement FAQs
Does every three-phase board need an SPD?
No single answer applies to every existing board. The installation designer must assess the applicable overvoltage-protection requirements, consequences of failure and any permitted risk assessment.
Is the 10-metre rule measured in a straight line?
No. Consider conductor length along the actual circuit route between the SPD and the equipment or downstream board.
Can an SPD share an enclosure with other protective devices?
Yes, where the assembly and manufacturer permit it and the required clearances, conductors, backup protection and thermal conditions are satisfied.
Does an RCBO replace an SPD?
No. An RCBO provides overcurrent and residual-current protection. An SPD limits transient overvoltage; they perform different jobs.
Final Check Before You Fit
- Start protection at the origin.
- Review boards and equipment beyond 10 metres of conductor length.
- Select the correct SPD type and connection mode.
- Keep connections short and verify assembly compatibility.
Specifying a three-phase board? Compare our three-phase circuit-protection range.

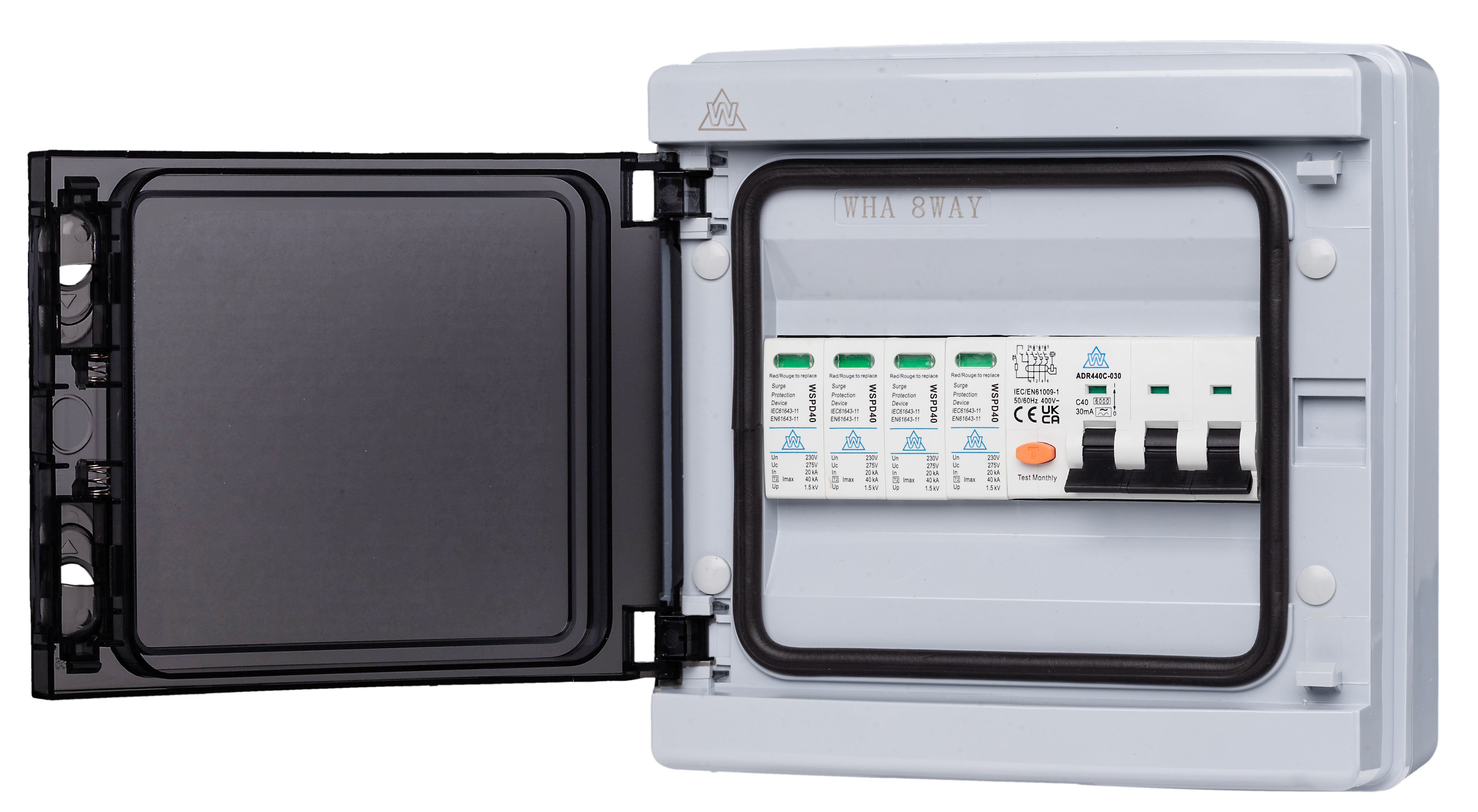

For a housed option, see the 3 Phase Surge Protection unit.
