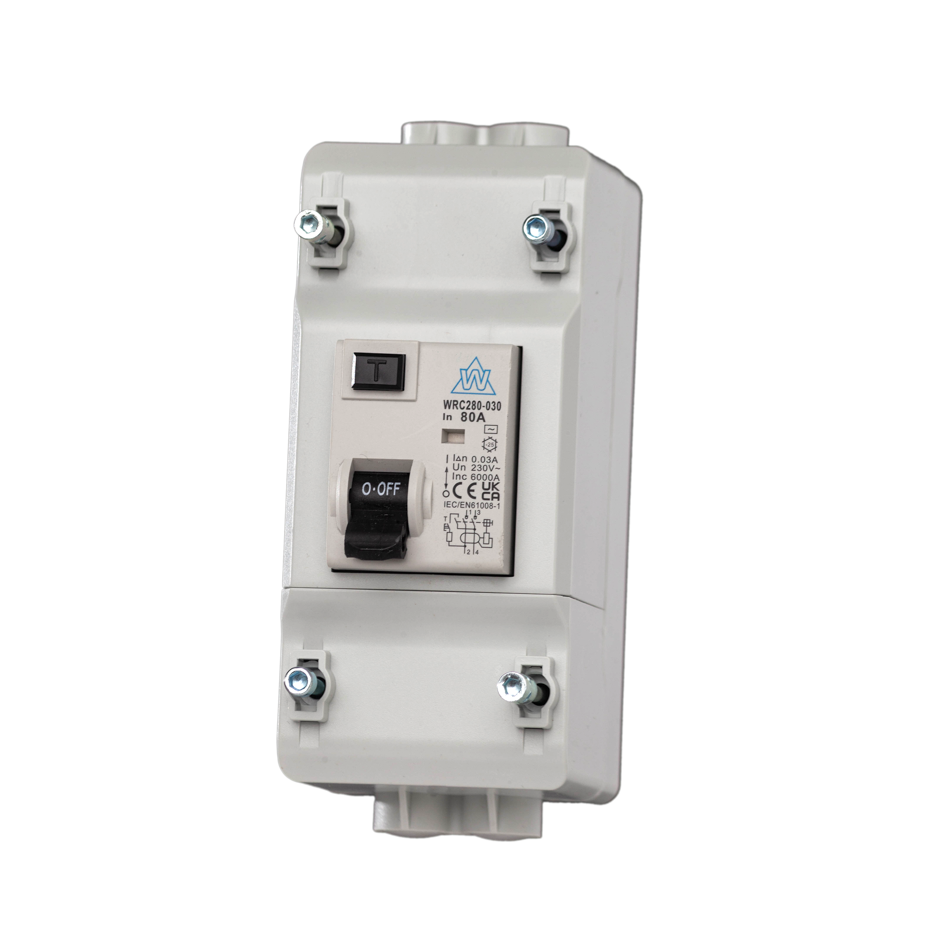

RCD Upgrade Unit – 80A 2 Module with Seal Screws (WECRC80)
18th Ed. Compliant
2-Year Warranty
UK Stock
Free Delivery £30+
Secure Payments With
The WECRC80 is a high-capacity RCD upgrade unit pre-fitted with an 80A 30mA RCD inside a 2-module plastic enclosure. It’s designed for installations where the main consumer unit lacks RCD protection, or where standalone fault protection is needed for larger circuits and sub-mains. With an 80A rating, this unit suits...
The WECRC80 is a high-capacity RCD upgrade unit pre-fitted with an 80A 30mA RCD inside a 2-module plastic enclosure. It’s designed for installations where the main consumer unit lacks RCD protection, or where standalone fault protection is needed for larger circuits and sub-mains.
With an 80A rating, this unit suits larger domestic extensions, workshops, or light commercial applications requiring robust residual current protection. Compact and surface-mountable, it offers an installer-friendly solution without replacing a full board.
Installer Tip: The 80A version is a smart fit for larger sub-mains and higher-load extensions. For heavy-duty incomer protection, step up to the 100A model.
Key Features
- 80A 30mA RCD – residual current and earth fault protection
- 2-module DIN rail enclosure with tamper-proof seal screws
- Surface mount design – fast retrofit installs
- Compact case size: 95 × 145 × 82mm
- Compliant with BS EN 61008-1 and BS 7671
Compare RCD Upgrade Units
| Model | Rating | Application |
|---|---|---|
| WECRC63 | 63A | Higher-load domestic / light commercial |
| WECRC80 (This Product) | 80A | Larger sub-mains / workshops |
| WECRC100 | 100A | Main incomer / heavy-duty use |
When should I use the 80A version?
Choose the 80A unit for larger sub-mains, outbuildings, or light commercial installs where higher current capacity is needed.
Is this suitable for outdoor installs?
No – this enclosure is designed for indoor use. For outdoor protection, see our IP65-rated RCD units.
What if I need even higher capacity?
The WECRC range goes up to 100A. For heavy-duty or incomer protection, see the 100A model.
- Model: WECRC80
- Rating: 80A, 30mA RCD
- Enclosure: 2-module plastic housing, seal screws
- Mounting: Surface mount, DIN rail inside
- Dimensions: 95mm (W) × 145mm (H) × 82mm (D)
- Voltage: 230V AC
- Standards: BS EN 61008-1, BS 7671
Supplied pre-assembled with 80A RCD installed. Final wiring and testing must be completed by a qualified electrician.
- Fix enclosure securely to a wall or mounting board
- Use suitable glands/seals for cable entry
- Wire according to BS 7671 standards
- Test RCD trip time after install
