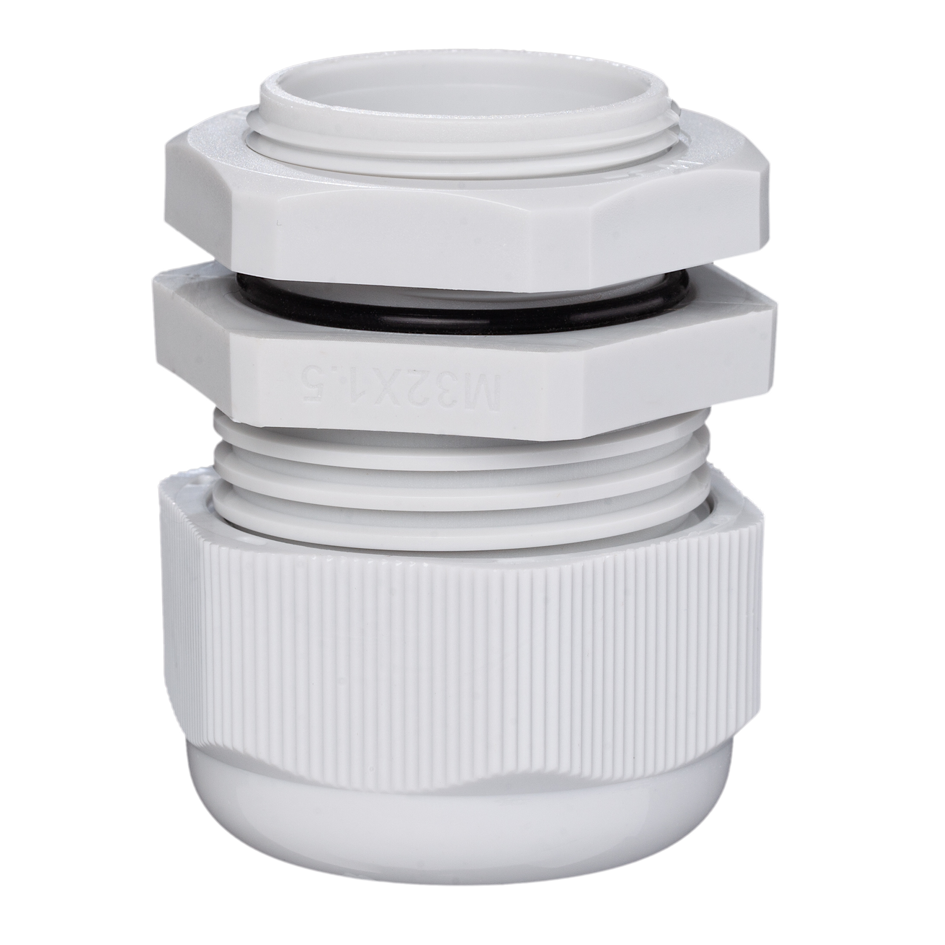

32mm Cable Gland 16/16mm 10mm

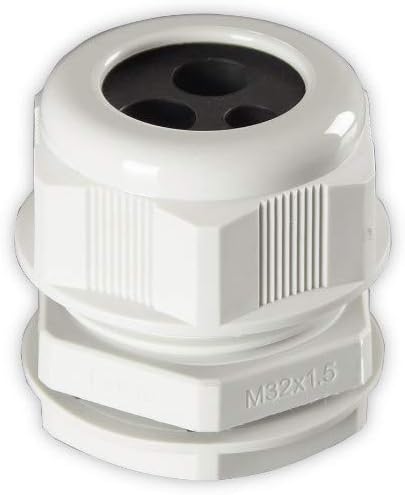

The GTG3216 is a 32mm grey tails gland designed for neat, secure and compliant entry of meter tails and earth cables into consumer units, meter boxes, and distribution boards. Pre-drilled to accept two 16mm 6181Y tails and one 10mm 6491X green/yellow earth conductor, this gland provides a reliable solution for...
The GTG3216 is a 32mm grey tails gland designed for neat, secure and compliant entry of meter tails and earth cables into consumer units, meter boxes, and distribution boards. Pre-drilled to accept two 16mm 6181Y tails and one 10mm 6491X green/yellow earth conductor, this gland provides a reliable solution for typical domestic and light commercial installations.
By using a purpose-made tails gland, you prevent cable damage, reduce strain on terminations, and maintain the board’s IP integrity. It is particularly useful when upgrading consumer units to 18th Edition standards, or when a tidy, professional finish is required for meter tails installation.
Key features:

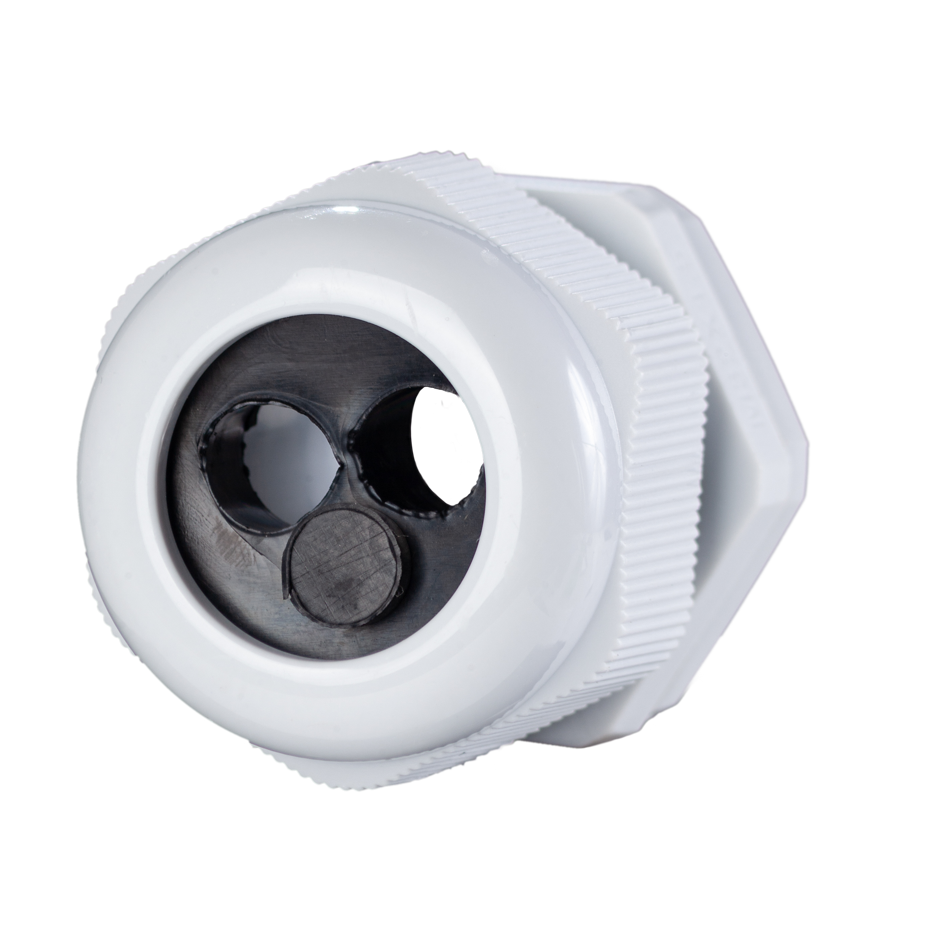

- Pre-configured entry holes: 2 × 16mm (6181Y) + 1 × 10mm (6491X G/Y)
- 32mm gland size – suitable for standard consumer unit and meter box knockouts
- Manufactured from tough, UL-certified PA66 material
- Rated to IP68 for dust and moisture protection
- Halogen free and flame retardant (94V-2)
- Provides strain relief and protects cable insulation from sharp edges
This gland is an essential accessory for any electrician installing or upgrading meter tails, ensuring compliance with wiring regulations while maintaining a clean and safe cable entry.
- What cables does this tails gland fit?
It is designed for 2 × 16mm 6181Y meter tails and 1 × 10mm 6491X earth conductor. - Is this gland waterproof?
Yes – the GTG3216 is rated IP68, providing dust and water ingress protection when installed correctly. - Where would I use this gland?
Commonly used on consumer units, meter boxes, and distribution boards where neat and compliant tails entry is required. - What is it made from?
Tough PA66 nylon – halogen free and flame-retardant to UL94V-2 standards.
- SKU: GTG3216
- Gland Size: 32mm
- Entries: 2 × 16mm (6181Y tails), 1 × 10mm (6491X earth)
- Material: UL-approved PA66 nylon
- Colour: Grey
- IP Rating: IP68
- Halogen Free: Yes
- Flame Retardancy: UL94V-2
- Ensure the consumer unit or meter box knockout is prepared to accept a 32mm gland.
- Insert the GTG3216 gland and tighten the locknut securely for a firm, IP-rated seal.
- Feed the two 16mm tails and 10mm earth conductor through the designated entry points.
- Check that cables are not under strain and that insulation is not compromised.
- Complete terminations inside the enclosure in accordance with BS 7671.
